Professional rackmount kit for mounting one wireless receiver.

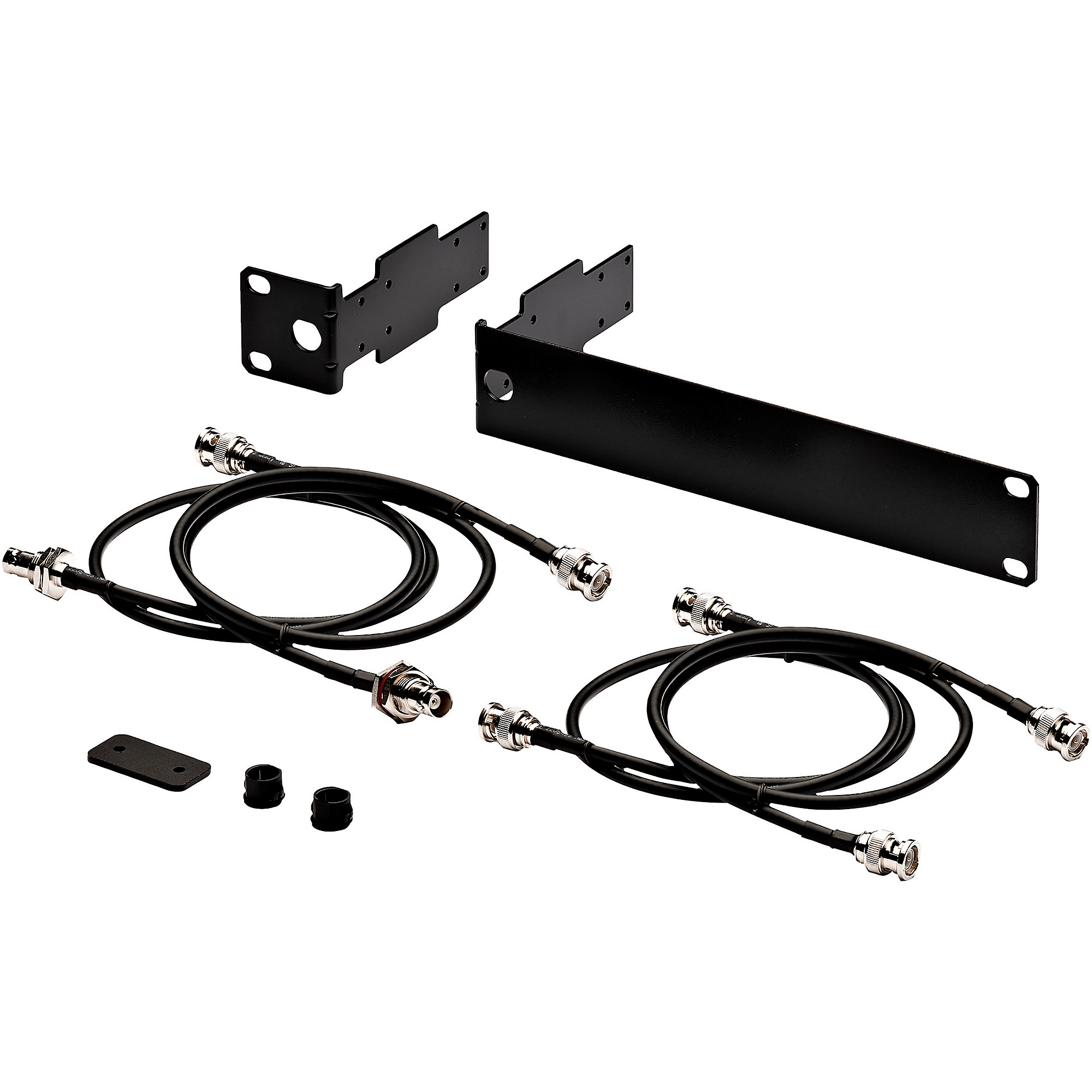

The AKG RMU4X PRO is a professional rackmount kit including a long and a short rack bracket, a coupling plate, two antenna covers, two antenna front mount cables, two antenna splitter cables and spare screws. The included rack brackets are compatible with AKG WMS420, WMS450 and WMS470 wireless receivers. Each rack mount kit includes everything needed to mount ONE receiver. Two rack mount kits are required to mount two receivers. The RMU4X PRO allows you to mount your receiver into a 19” rack and to mount the antennas to the front plate.
Specifications
- Antenna front mount cable: 1.8 ft. RG58 coaxial cable (50 ohms) with BNC connectors (1x female, 1x male)
- Antenna splitter cable: 2.1 ft. RG58 coaxial cable (50 ohms) with BNC connectors (2x male)
- Dimensions: 10.24" x 4.53" x 1.97"
- Gross weight: 1.32 lb.
Features
- Rack Brackets: The receiver + one long and one short rack bracket perfectly fit into one 19" rack unit
- Antenna Front Mount Cables: By using the antenna front mount cables you can easily attach the antennas to the front plate
- Antenna Covers: Whenever the antenna front mount cables are not in use and the antennas are attached to the rear side of the receiver, you can use the antenna covers to cover the open holes in the rack brackets
- Coupling Plate: The coupling plate is used when two receivers are combined and mounted into one 19” rack unit, which requires a second RMU4X PRO
- Antenna splitter cables: The antenna splitter cables are needed when two or more receivers are used simultaneously, to connect the receivers to an antenna splitter
- Spare screws: The rack mount kit includes spare screws (four for the sides and two for the feet) just in case one or another screw gets lost
