Plug-and-play solution with 16 analog inputs and outputs on 4 DSub connectors.

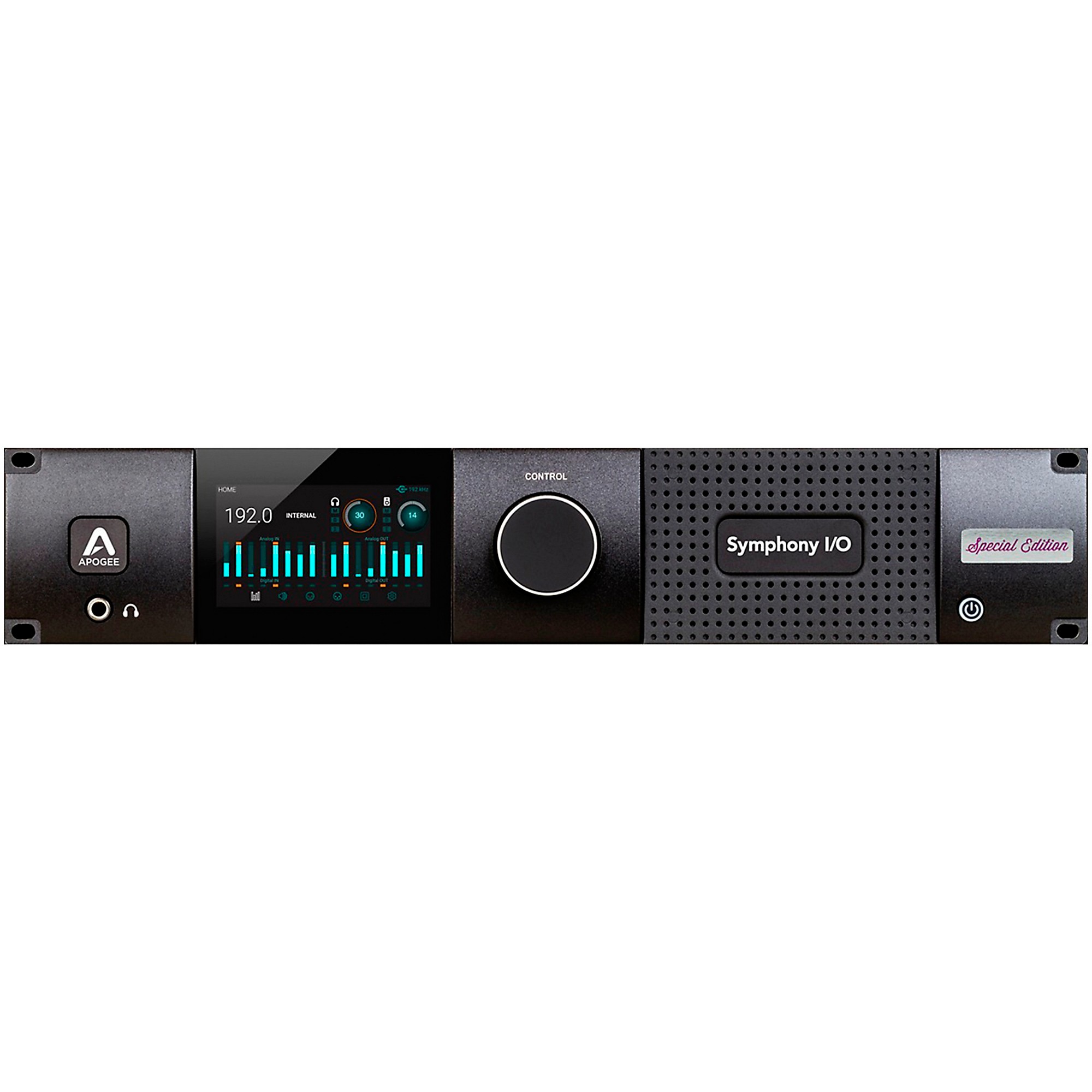

With the recently released Monitor Workflows functionality, the 16x16 SE-equipped
Symphony I/O from Apogee is the plug-and-play solution to get started with Dolby Atmos and
other Immersive Audio systems. Best of all, the SE conversion adds dimension to the
added dimension of your multi-speaker monitoring setup.
More Than Just a Simple Upgrade
The 16x16 SE features the most advanced audio specifications of any Apogee
Interface. Greater dynamic range and a lower total harmonic distortion makes
for enhanced purity and musicality in your listening experience.
A Difference You Can Hear
After the A/D and D/A conversion stages, the most crucial section of your audio
interface is the analog output driver stage—the connection to your mixing and
monitoring systems. The 16x16 SE’s ultra-robust output driver stage preserves the
integrity of your audio regardless of cable length or input stage anomalies of the
downstream devices.
20% More Efficient
In a masterful feat of electrical engineering, the 16x16 SE I/O module has fewer parts
than its predecessor while also running about 20% more efficiently. That means a
cooler running interface, even with a fully loaded 32x32 Symphony I/O chassis.
Possible Configurations with 16X16SE
Symphony I/O MkII with Thunderbolt Connectivity
Symphony I/O MkII - 16X16SE
Symphony I/O MkII - 32X32SE
Symphony I/O MkII - 16X16SE - Connect-8
Symphony I/O MkII - 16X16SE - 2X6SE
Symphony I/O MkII with Pro Tools HD Connectivity
Symphony I/O MkII - 16X16SE - PTHD-PLUS
Symphony I/O MkII - 32X32SE - PTHD-PLUS
Symphony I/O MkII - 16X16SE - Connect-8 - PTHD-PLUS
Symphony I/O MkII - 16X16SE - 2X6SE - PTHD-PLUS
Symphony I/O MkII with Pro Tools HD + Dante Connectivity
Symphony I/O MkII - 16X16SE - Dante-Card
Symphony I/O MkII - 32X32SE - Dante-Card
Symphony I/O MkII - 16X16SE - Connect-8 - Dante-Card
Symphony I/O MkII - 16X16SE - 2X6SE - Dante-Card
Symphony I/O MkII with Thunderbolt and Pro Tools HD + Dante Connectivity
Symphony I/O MkII - 16X16SE and Dante-Card
Symphony I/O MkII - 32X32SE and Dante-Card
Symphony I/O MkII - 16X16SE - Connect-8 and Dante-Card
Symphony I/O MkII - 16X16SE - 2X6SE and Dante-Card
Symphony I/O from Apogee is the plug-and-play solution to get started with Dolby Atmos and
other Immersive Audio systems. Best of all, the SE conversion adds dimension to the
added dimension of your multi-speaker monitoring setup.
More Than Just a Simple Upgrade
The 16x16 SE features the most advanced audio specifications of any Apogee
Interface. Greater dynamic range and a lower total harmonic distortion makes
for enhanced purity and musicality in your listening experience.
A Difference You Can Hear
After the A/D and D/A conversion stages, the most crucial section of your audio
interface is the analog output driver stage—the connection to your mixing and
monitoring systems. The 16x16 SE’s ultra-robust output driver stage preserves the
integrity of your audio regardless of cable length or input stage anomalies of the
downstream devices.
20% More Efficient
In a masterful feat of electrical engineering, the 16x16 SE I/O module has fewer parts
than its predecessor while also running about 20% more efficiently. That means a
cooler running interface, even with a fully loaded 32x32 Symphony I/O chassis.
Possible Configurations with 16X16SE
Symphony I/O MkII with Thunderbolt Connectivity
Symphony I/O MkII - 16X16SE
Symphony I/O MkII - 32X32SE
Symphony I/O MkII - 16X16SE - Connect-8
Symphony I/O MkII - 16X16SE - 2X6SE
Symphony I/O MkII with Pro Tools HD Connectivity
Symphony I/O MkII - 16X16SE - PTHD-PLUS
Symphony I/O MkII - 32X32SE - PTHD-PLUS
Symphony I/O MkII - 16X16SE - Connect-8 - PTHD-PLUS
Symphony I/O MkII - 16X16SE - 2X6SE - PTHD-PLUS
Symphony I/O MkII with Pro Tools HD + Dante Connectivity
Symphony I/O MkII - 16X16SE - Dante-Card
Symphony I/O MkII - 32X32SE - Dante-Card
Symphony I/O MkII - 16X16SE - Connect-8 - Dante-Card
Symphony I/O MkII - 16X16SE - 2X6SE - Dante-Card
Symphony I/O MkII with Thunderbolt and Pro Tools HD + Dante Connectivity
Symphony I/O MkII - 16X16SE and Dante-Card
Symphony I/O MkII - 32X32SE and Dante-Card
Symphony I/O MkII - 16X16SE - Connect-8 and Dante-Card
Symphony I/O MkII - 16X16SE - 2X6SE and Dante-Card
Specifications
- THD+N: -115dB @ 23dBu (0.00018%) unweighted
- Dynamic range: 124dB A weighted
- Maximum input levels:
- +4dB setting: +24dBu
- -10dB setting: +10dBV
- Frequency response at 44.1kHz: 1-20,000 Hz (+/- 0.05dB)
- Input impedance: 10K
- Digital to Analog Specifications
- THD+N: -119dB @ 21dBu (0.00012%) unweighted
- Dynamic Range: 128dB A weighted
- Max output levels – ∞ to +24dBu
- Frequency response at 44.1 kHz: dc to 20kHz (+/- 0.05dB)
- Output impedance: 50 Ohm
Features

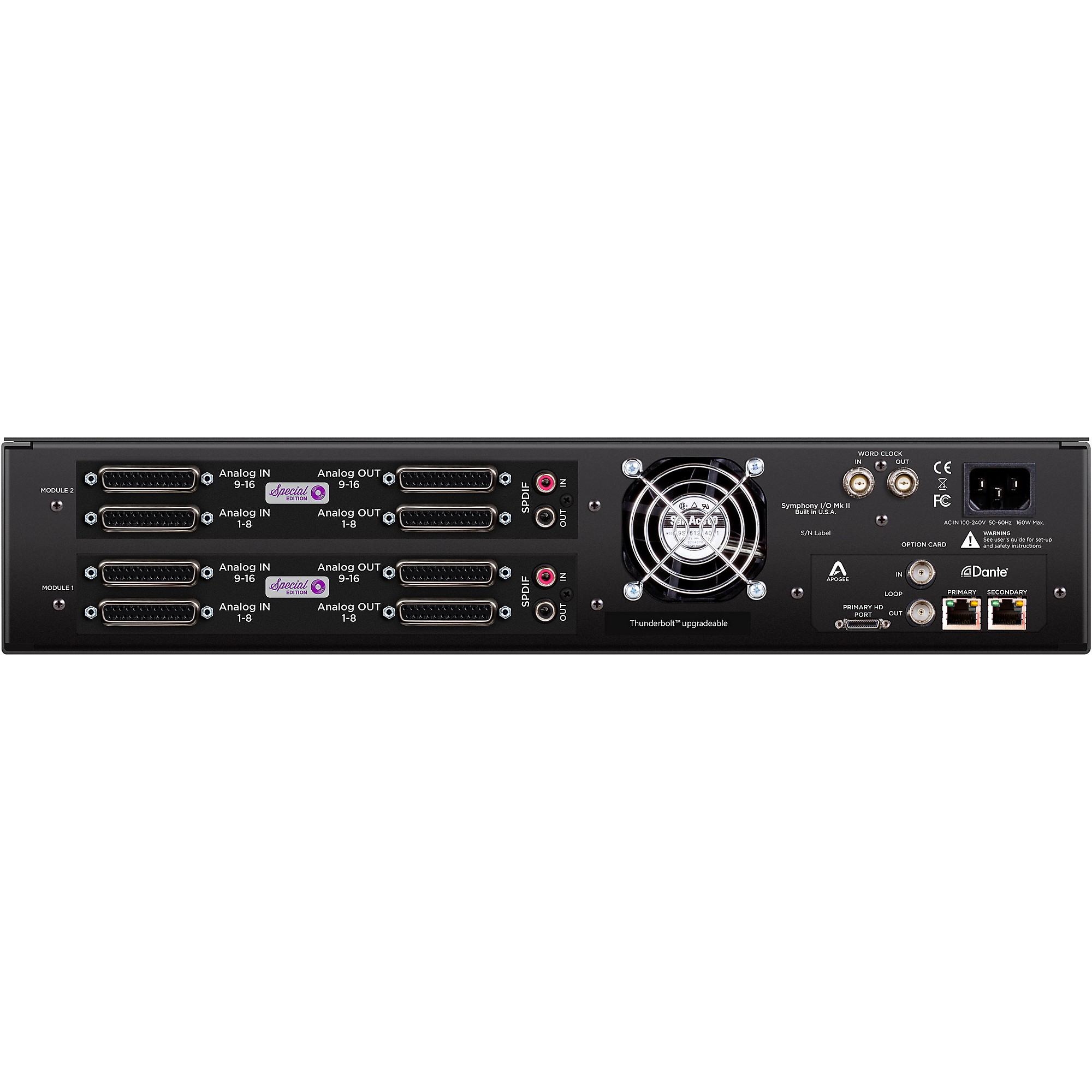

- 16 Analog Inputs and Outputs on 4 DSub Connectors
- Stereo S/PDIF Coax I/O
- Improved Analog Output Stage
- Improved Power Efficiency
- Analog to Digital Specifications
