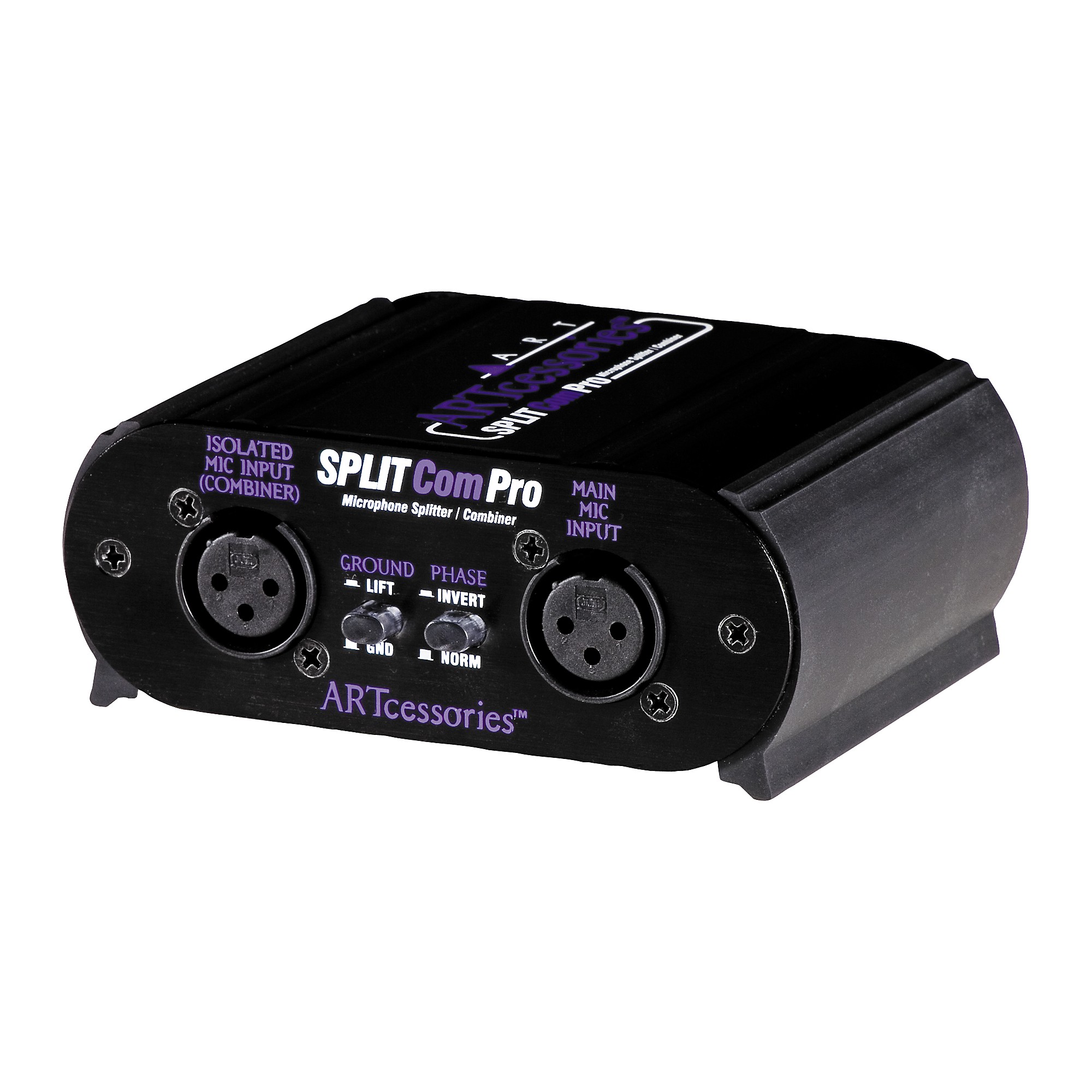

Use the ART SPLITCom Pro to split or combine balanced low-impedance microphone signals.
As a splitter
The SPLITCom Pro mic splitter provides one direct-coupled output and one isolated output from a single microphone. Applications include sending the direct output to the main or FOH mixer, and the second isolated output to a monitor or recording mixer. The main mic output passes phantom power from the main mixer to the MAIN MIC INPUT for use with condenser microphones. Phantom power is blocked from passing to the isolated mic output.
As a combiner
The SPLITCom Pro provides one output from two microphone inputs. The Phase switch can be used to invert the relative phase of the isolated mic input. Applications include dual miking of percussion instruments, choirs, and instrument amplifiers. Phantom power passes through each output to its respective input, (Main to Main, Isolated to Isolated), however phantom power is blocked from passing between the Main and Isolated signal paths. Only the audio passes between the Main and Isolated signal paths (it is present on all inputs and outputs).
The ART SPLITCom Pro includes a Ground switch, which, in the Lift position, will provide full galvanic isolation between the Main Mic Input (& Output) and the Isolated Mic Input (& Output) to reduce noise due to ground loops between connected AC-powered units.
As a splitter
The SPLITCom Pro mic splitter provides one direct-coupled output and one isolated output from a single microphone. Applications include sending the direct output to the main or FOH mixer, and the second isolated output to a monitor or recording mixer. The main mic output passes phantom power from the main mixer to the MAIN MIC INPUT for use with condenser microphones. Phantom power is blocked from passing to the isolated mic output.
As a combiner
The SPLITCom Pro provides one output from two microphone inputs. The Phase switch can be used to invert the relative phase of the isolated mic input. Applications include dual miking of percussion instruments, choirs, and instrument amplifiers. Phantom power passes through each output to its respective input, (Main to Main, Isolated to Isolated), however phantom power is blocked from passing between the Main and Isolated signal paths. Only the audio passes between the Main and Isolated signal paths (it is present on all inputs and outputs).
The ART SPLITCom Pro includes a Ground switch, which, in the Lift position, will provide full galvanic isolation between the Main Mic Input (& Output) and the Isolated Mic Input (& Output) to reduce noise due to ground loops between connected AC-powered units.
Features
- Low distortion with wide frequency response
- Two functions in one box--combines and/or splits
- Phase-invert switch for subtractive combining
- Galvanic isolation to block phantom-power between channels
- Ground lift switch to reduce noise due to ground loops
