Pixel mapping effects, wall washing and more in a full-size LED strip light.

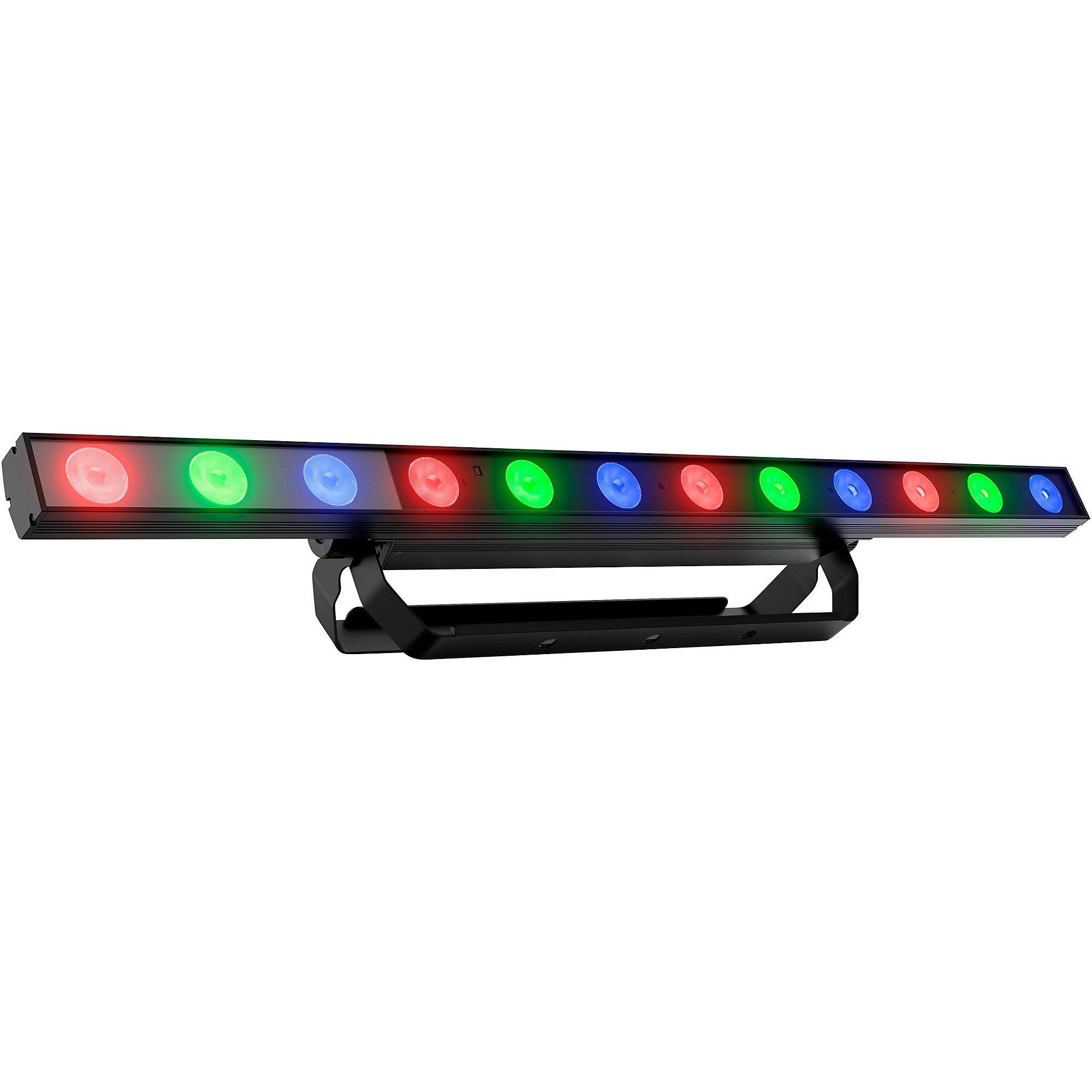

The COLORband PiX ILS from CHAUVET DJ is a full-size LED strip light that functions as a pixel mapping effect, blinder or wall washer. Control wirelessly with the built-in RF receiver using the RFC or RFC-XL optional remotes. Create amazing animations and video effects with individual LED control. Get convenient access to multiple pre-built programs with or without DMX. Easily generate complex shows with ShowXpress Pixels and achieve flicker-free video operation with high-frequency LED dimming. It is ideal for quiet applications due to silent operation and no moving parts. This is part of CHAUVET DJ's ILS (Instant Light Shows) ecosystem.
Specifications
- DMX Channels: 3, 4, 6, 7, 8, 9, 12, 18, 36 or 41
- DMX Connectors: 3- and 5-pin XLR
- Light source: 12 LEDs (tri-color RGB) 3 W (1,000 mA), 50,000 hours life expectancy
- Strobe rate: 0 to 20 Hz
- Beam angle: 14°
- Field angle: 27°
- Illuminance (2m): 4,142 lux @ 2 m
- Illuminance (5m): 663 lux @ 5 m
- Lumens: 1402
- Cable Length: 5 ft.
- Power linking: 19 units @ 120 V; 35 units @ 230 V
- Power and current: 49 W, 0.7 A @ 120 V, 60 Hz
- Power and current: 48 W, 0.4 A @ 230 V, 50 Hz
- Bracket mounting hole: 0.512"
- Weight: 7 lb.
- Size: 38.9" x 2" x 6.2"
- Optional controllers: RFC, RFC-XL, DFI-USB
- Approvals: CE, MET, UKCA, RoHS
Features
- Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes (sold separately)
- ILS compatibility for use in the ILS ecosystem
- D-Fi USB compatibility for wireless Master/Slave or DMX control
- Create amazing animations and video effects with individual LED control
- Convenient access to multiple pre-built programs with or without DMX
- Easily transports in the optional CHS-60 VIP gear bag (sold separately)
