A 5-in-1 system with controller for creating advanced light shows.
The CHAUVET DJ GigBAR Move + ILS and ILS Command bundle is the perfect solution for visually enhancing your next event.
GigBAR Move + ILS

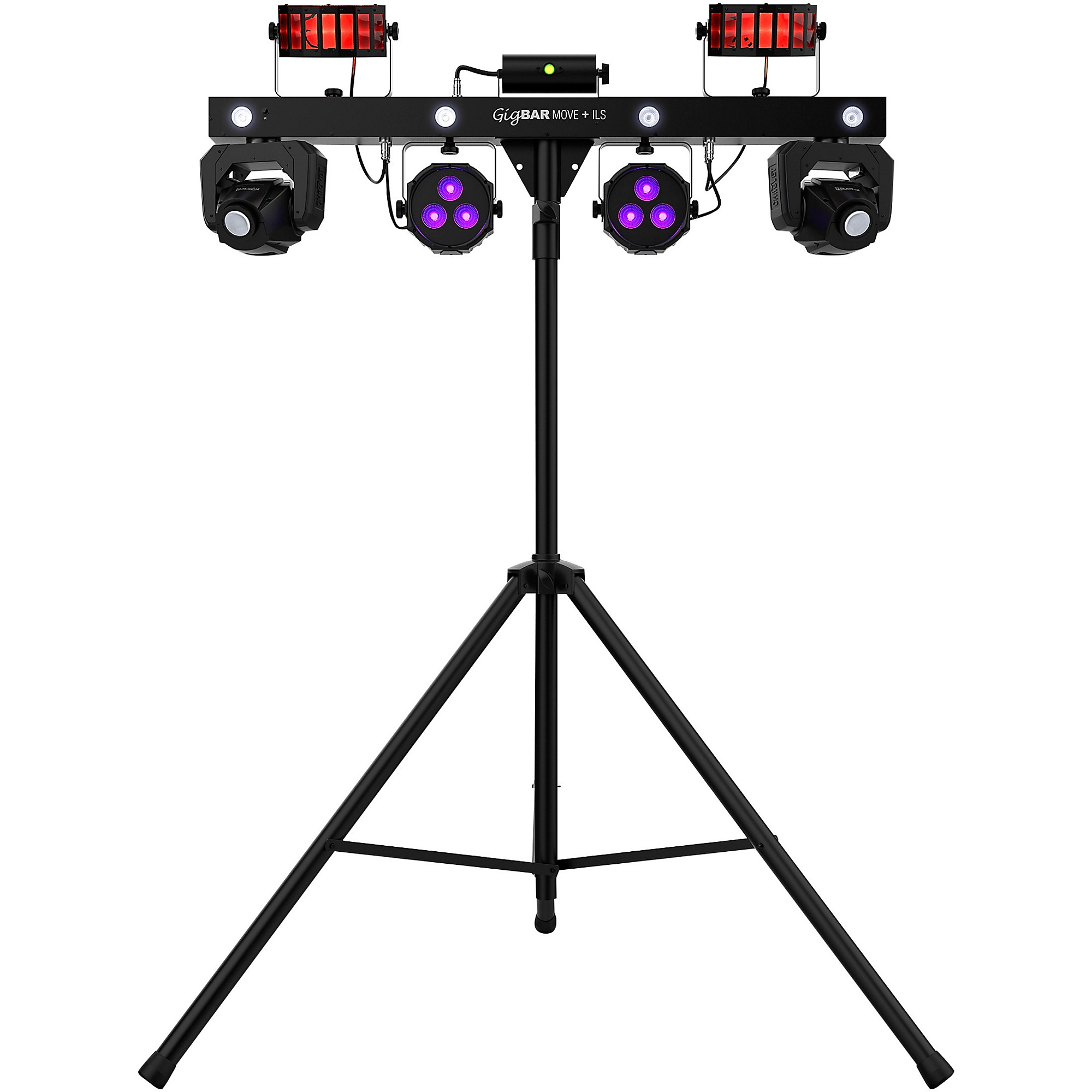

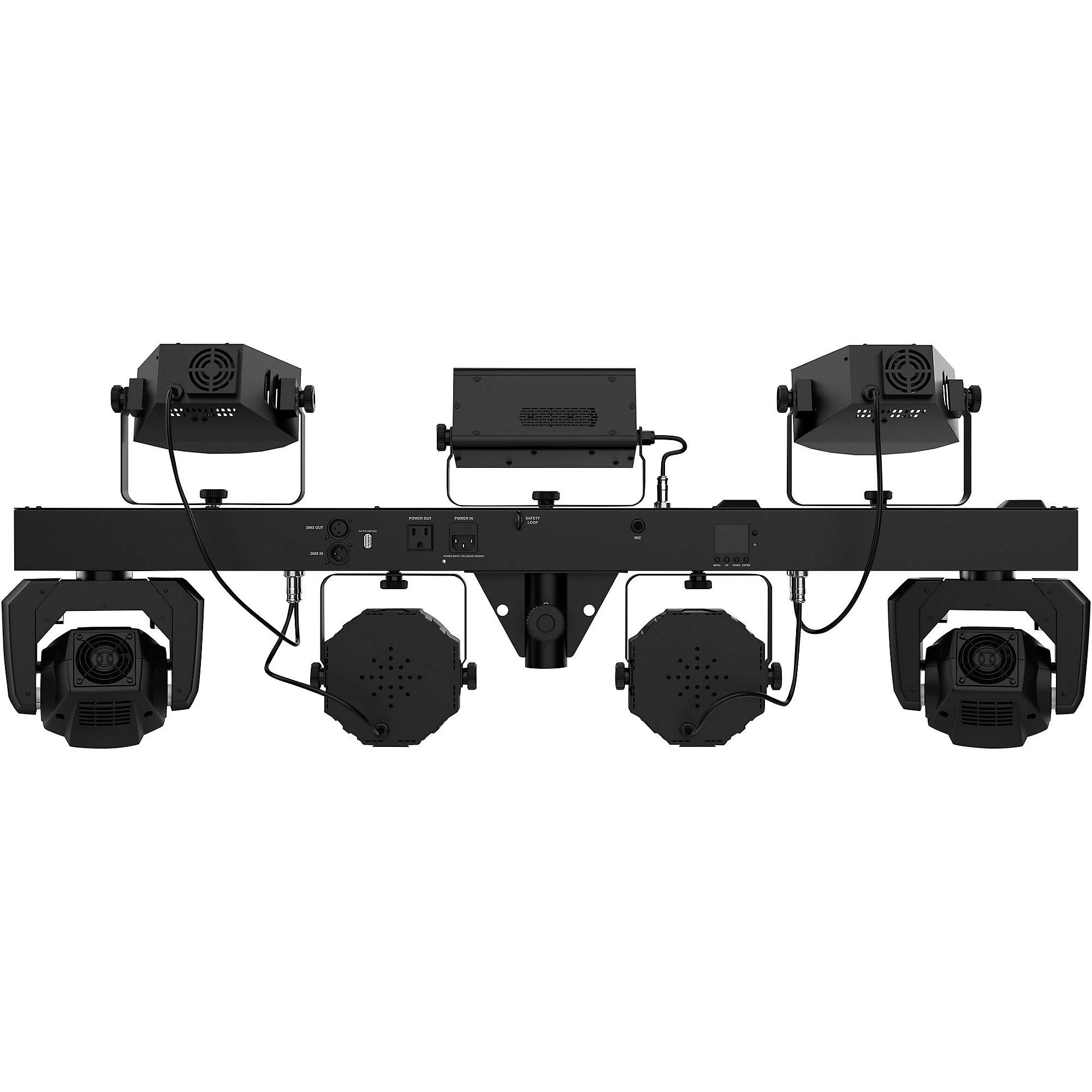

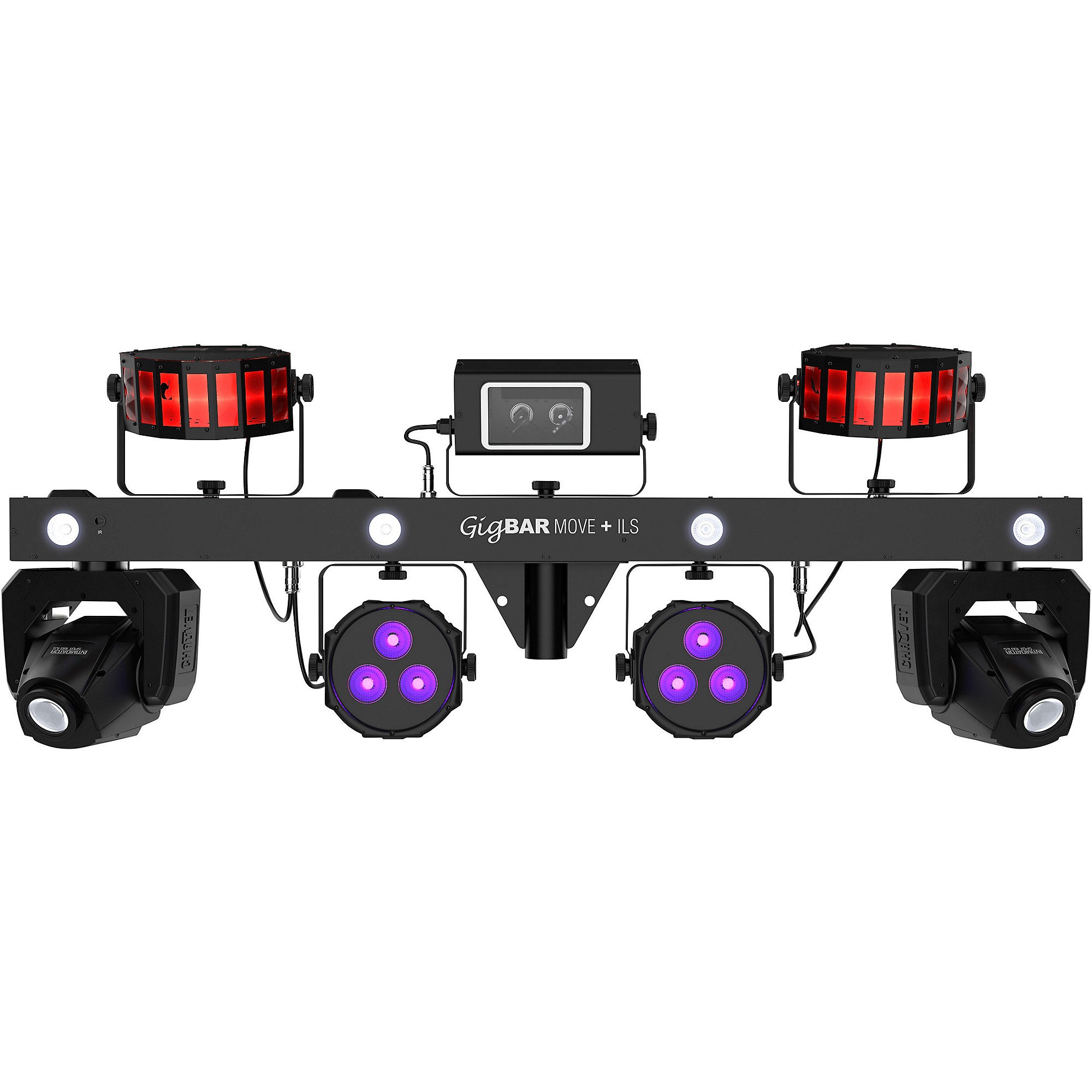

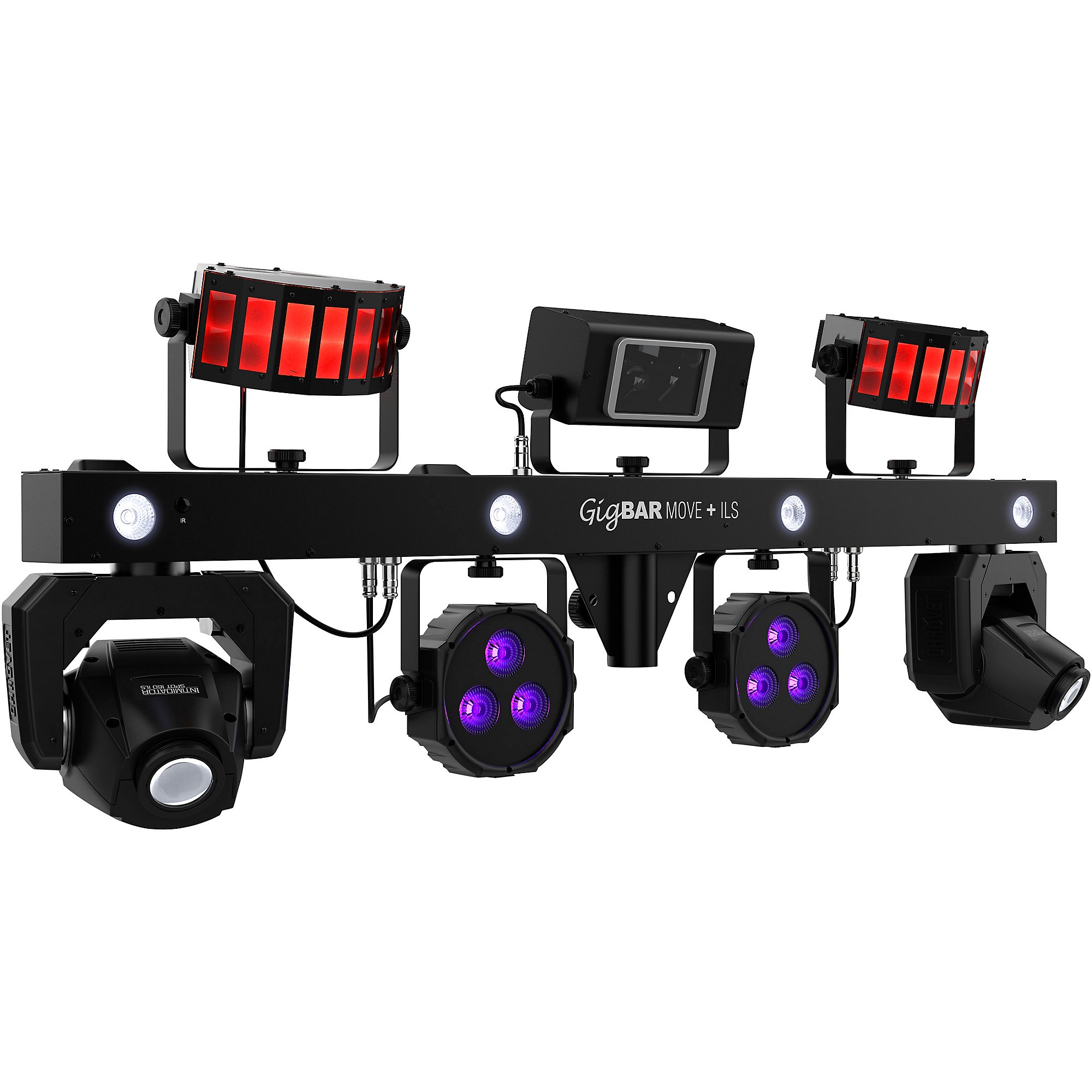

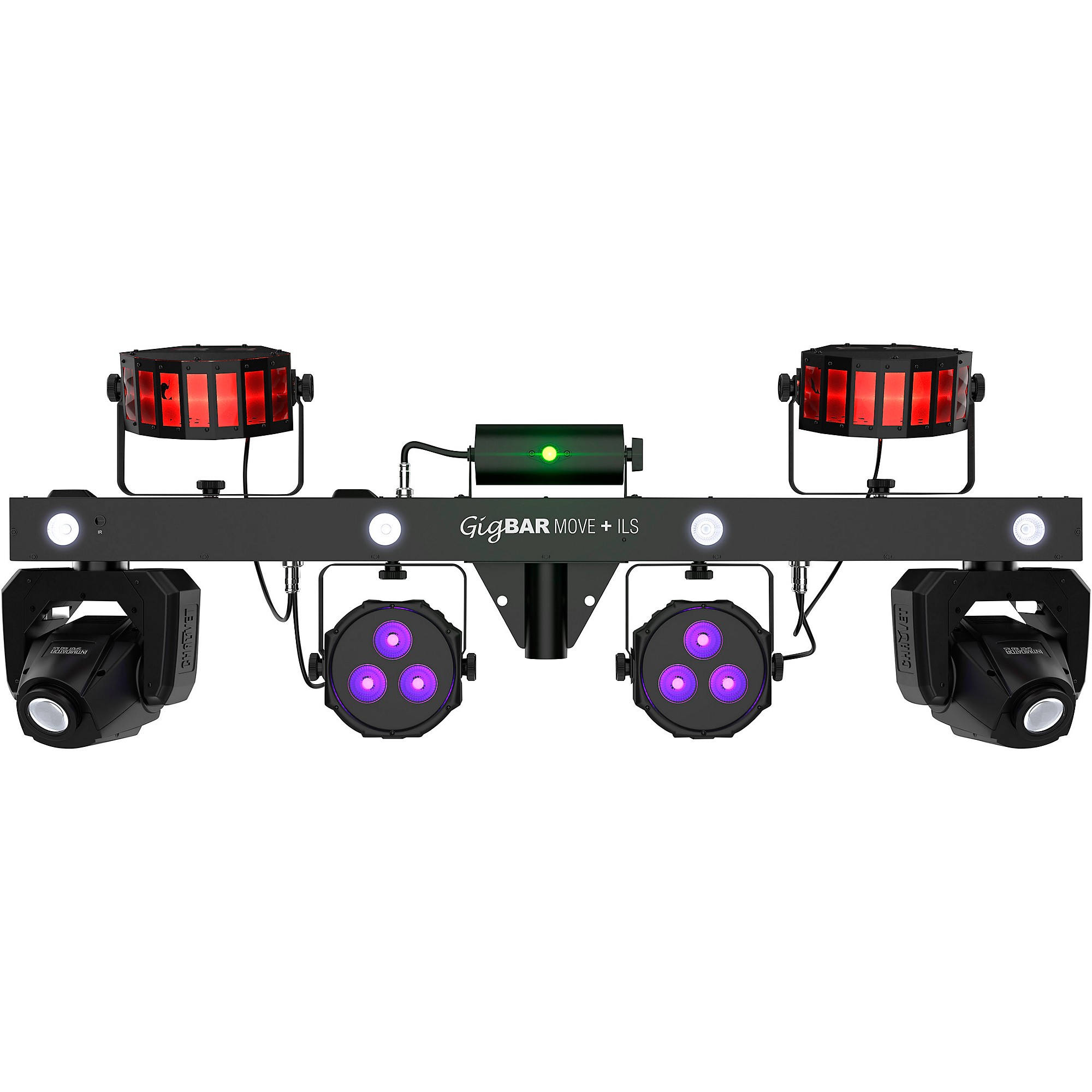

The GigBAR Move from CHAUVET DJ is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar. This Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types, providing ample effect options. Separate color and gobo wheels allow for creative programming. Built-in UV LEDs illuminate florescent objects for dazzling backlight effects, while Totem Mode keeps the moving heads focused on the dance floor. The system includes a tripod, wireless footswitch, RF remote and carry bags to ensure a quick setup. Easily control the gigBAR via standalone, DMX, RF remote or footswitch.ILS Command

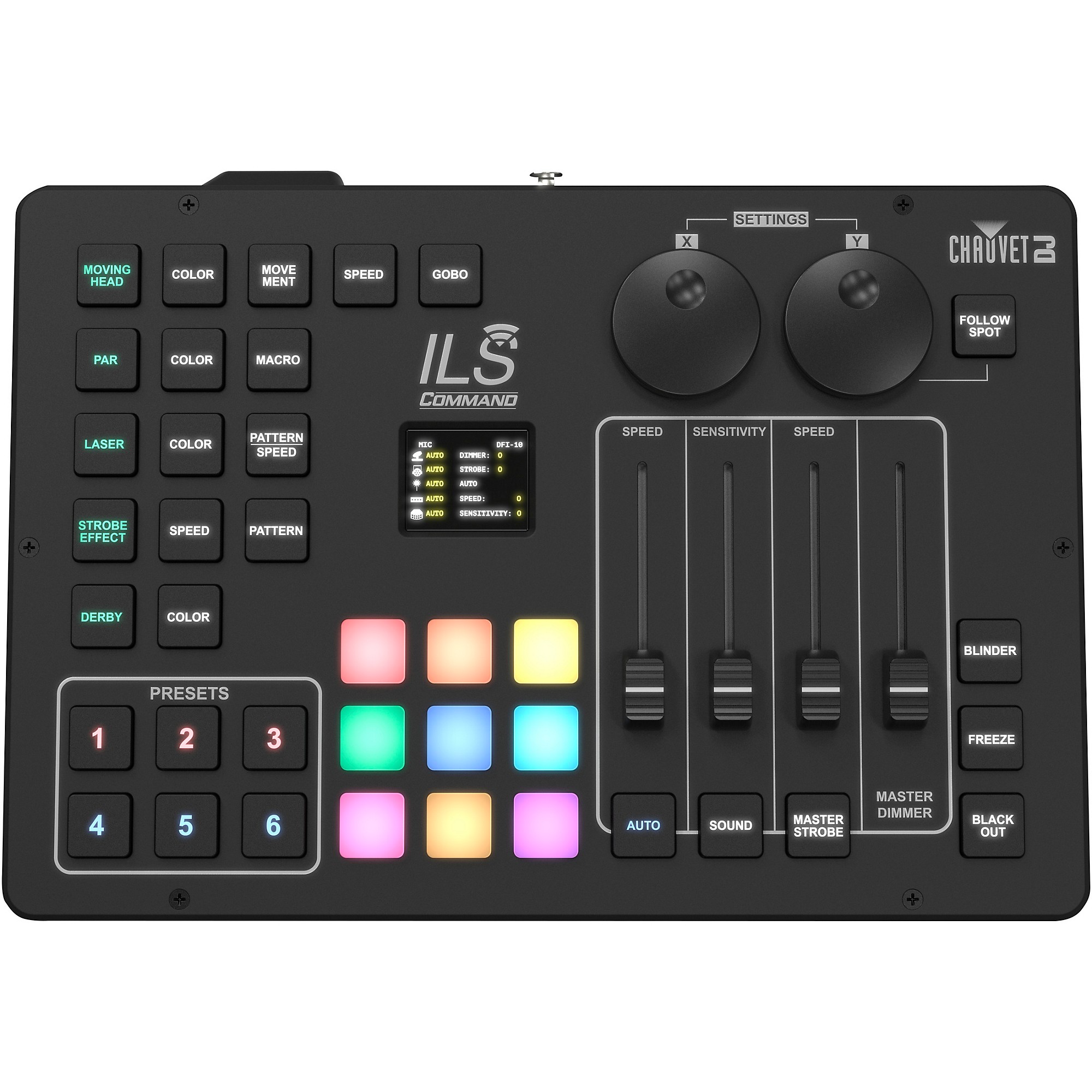

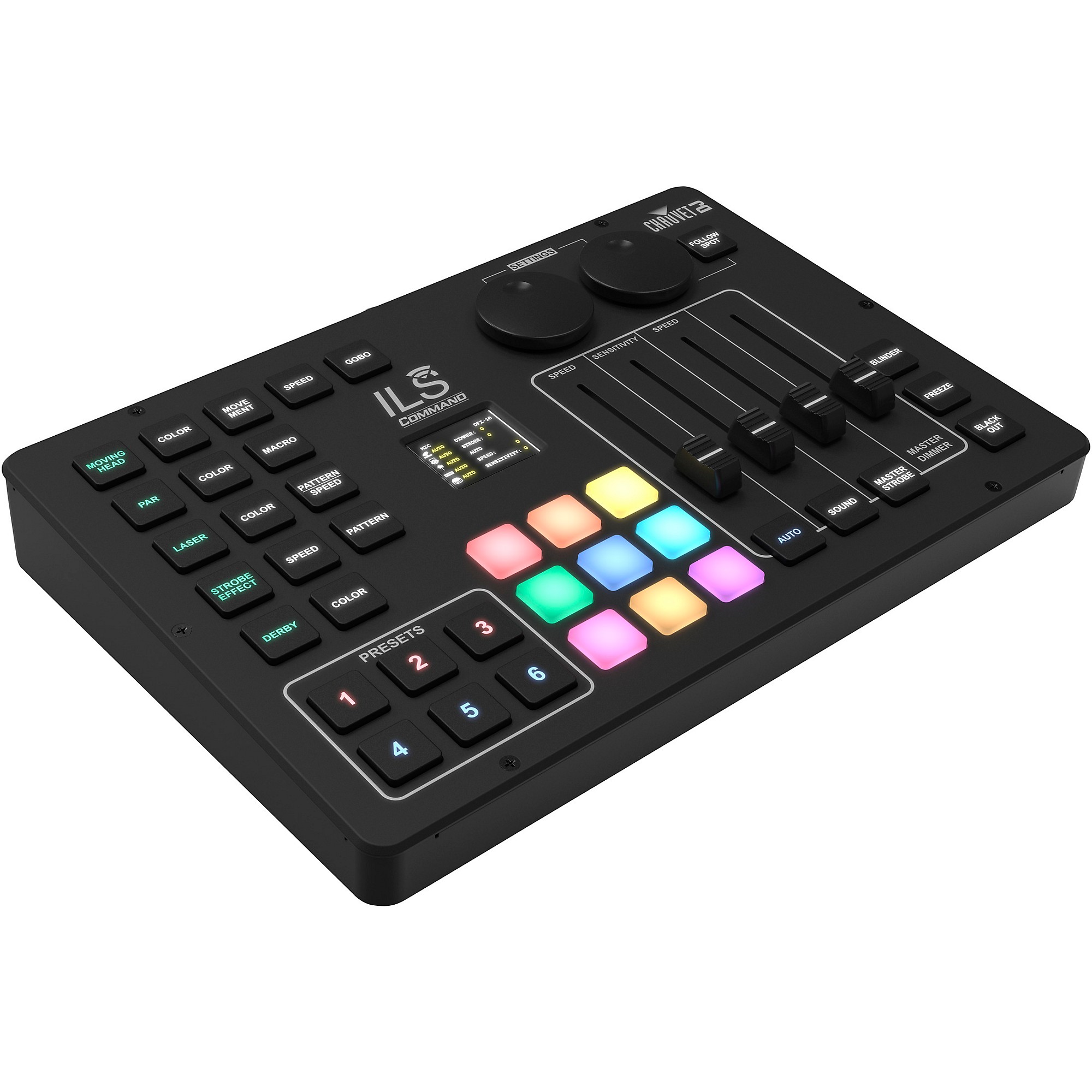

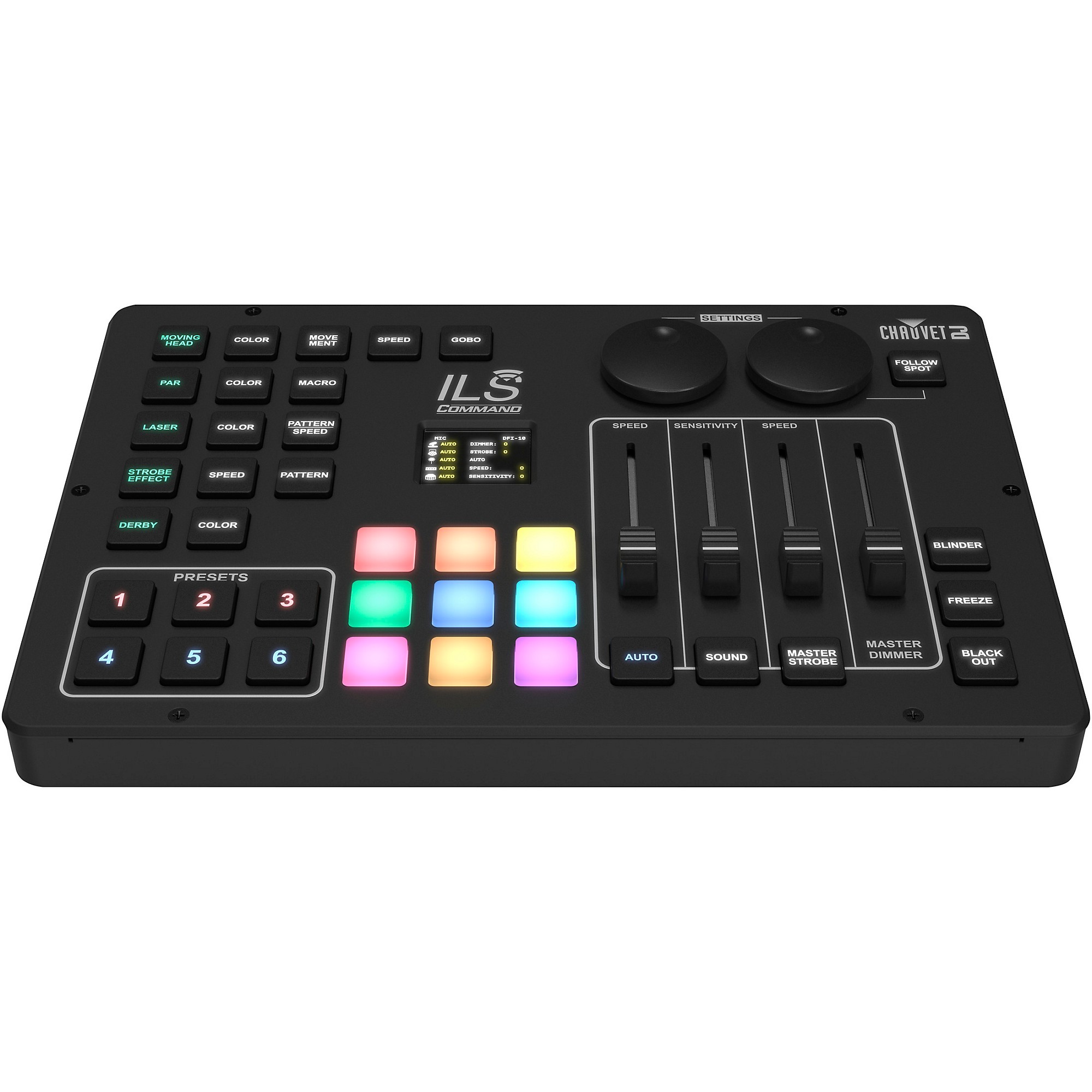

The CHAUVET DJ ILS Command lighting controller is a powerful ILS controller capable of programming any ILS-enabled product. Take control of the whole stage with the built-in D-Fi transmitter and control an unlimited number of ILS-enabled fixtures. With the ability to customize, save and recall presets without using DMX, this controller enables you to coordinate your light show with ease. The ILS Command also includes a carry case so you can transport it from gig to gig safely.
Specifications
GigBAR Move + ILS
- DMX channels: 3, 28 or 50
- Colors (moving head): 9+ open, split colors, continuous scroll
- Gobos (moving head): 9+ open, continuous scroll
- Light source (pars): 3 LEDs (hex color RGBAW+UV) 6W (2A)
- Light source (strobe): 4 LEDs (cool white) 5W (1.2A)
- Light source (derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5W (2A)
- Light source (moving head): 1 LED (cool white) 32W, (3A)
- Light source (laser): 638 nm/30mW (red) laser diode, 520 nm/20mW (green) laser diode, 450 nm/ 50mW (blue) laser diode
- Strobe Rate: 0 to 30Hz
- Stand Height: 4.8' to 8.3' (1.5 to 2.5 m)
- Beam Angle (moving head): 17°
- Beam Angle (pars): 22°
- Beam Angle (strobe): 30°
- Coverage Angle (derby): 131°
- Coverage Angle (laser): 93°
- Illuminance (pars): 1,205 lux @ 2 m (per par)
- Illuminance (moving head): 5,140 lux @ 2 m (per head)
- Illuminance (strobe): 130 lux @ 2 m
- Footswitch Max Unobstructed Distance: 100' (30.5 m)
- Input voltage: 100 to 240VAC, 50/60Hz (auto-ranging)
- Power and Current: 250W, 3A @ 120V, 60Hz
- ILS Connectors: 3-pin XLR
- Programmable Presets: 6
- Operating Frequency: 2.412–2.484gHz
- Cable Length: 20"
- Max Unobstructed Distance: 600'
- Input Voltage (USB-C): 5V, 1A
- Weight: 3.6 lb.
- Size: 12.3" x 9.9" x .7"
- Approvals: CE, UKCA, RoHS, FCC
Features
GigBAR Move + ILS
- 5-in-1 lighting system that includes moving heads,derbies, washes, a laser and strobe effect pre-mounted on a single bar
- Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
- Separate color and gobo wheels allow for creative programming
- Totem Mode keeps the moving heads focused on the dance floor
- System includes a tripod, wireless footswitch, RF remote and carry bags to ensure quick setup
- Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects
- Easy control via standalone, DMX, wireless RF remote or wireless footswitch
- Backlit silicon buttons provide a tactile response in dark environments
- Innovative follow spot mode highlights grand entrances without interrupting the rest of the show
- Wired or wireless control of CHAUVET DJ ILS lights with the built in D-Fi transmitter (wireless D-Fi USB receiver required for most lights)

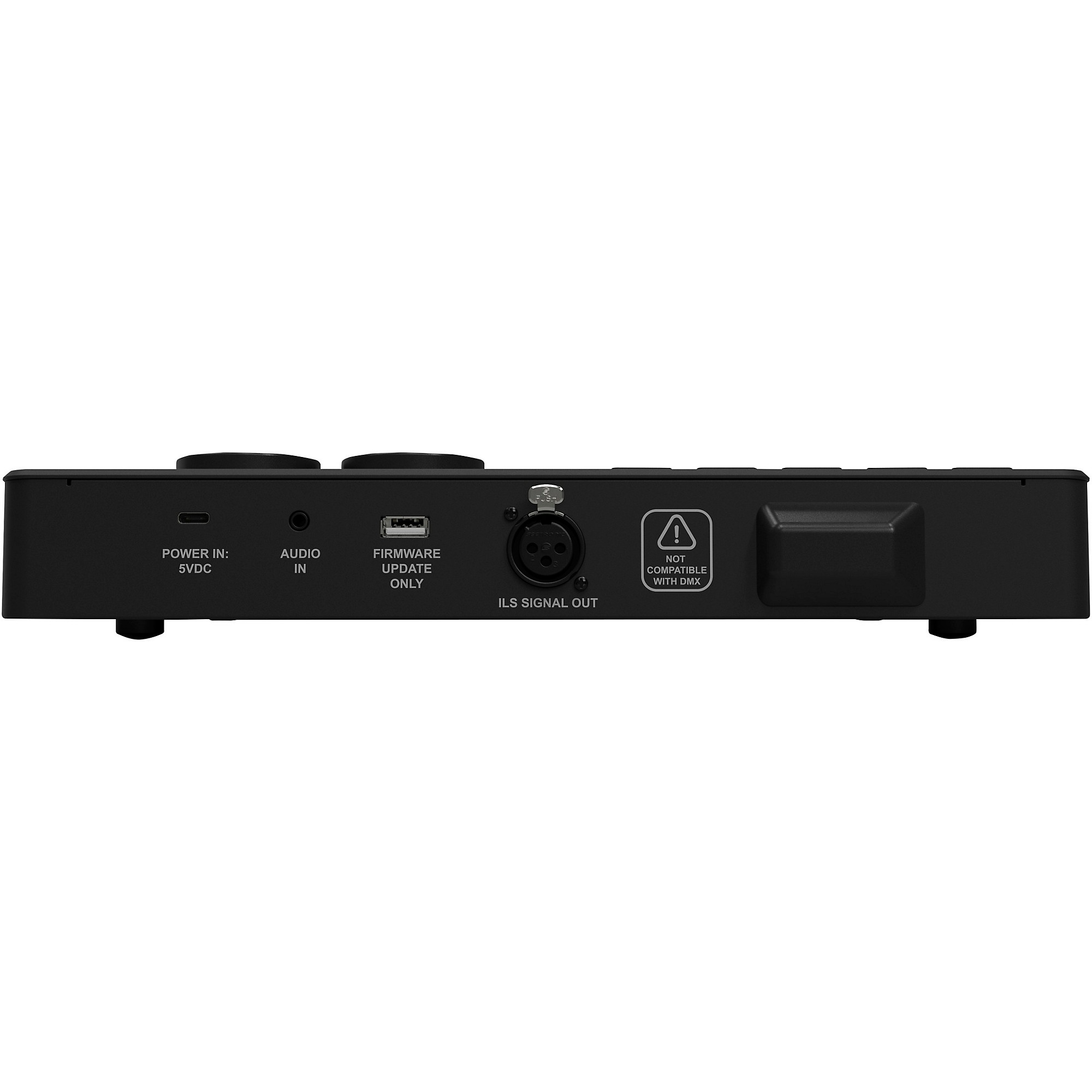

- Backup, restore and update the controller's software using the built-in USB port
- Built-in audio connector allows for better accuracy when triggering lights to the beat
- Manually override the show on the fly using the nine quick color access buttons
