Sophisticated LED stage light produces smooth, vivid washes for events.

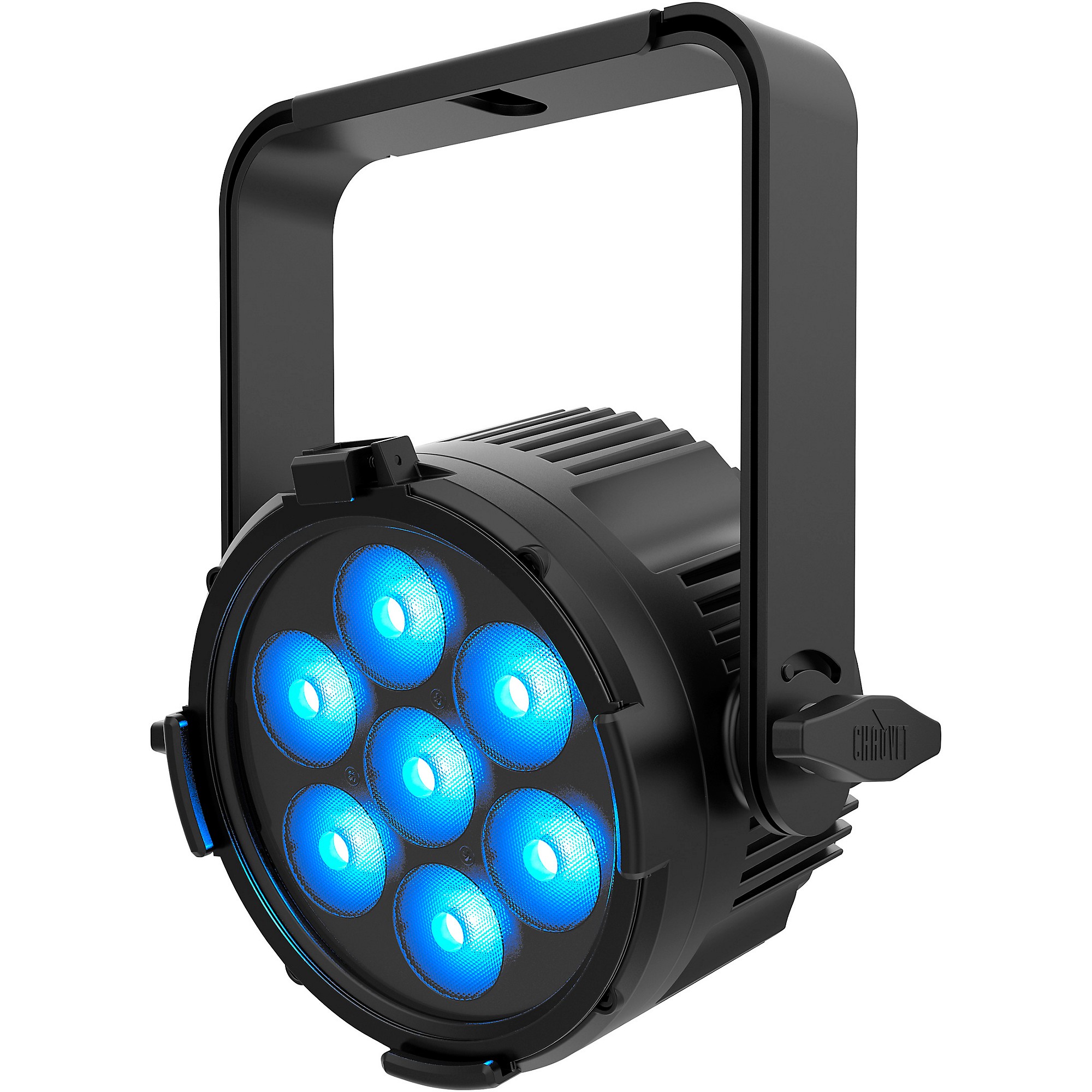

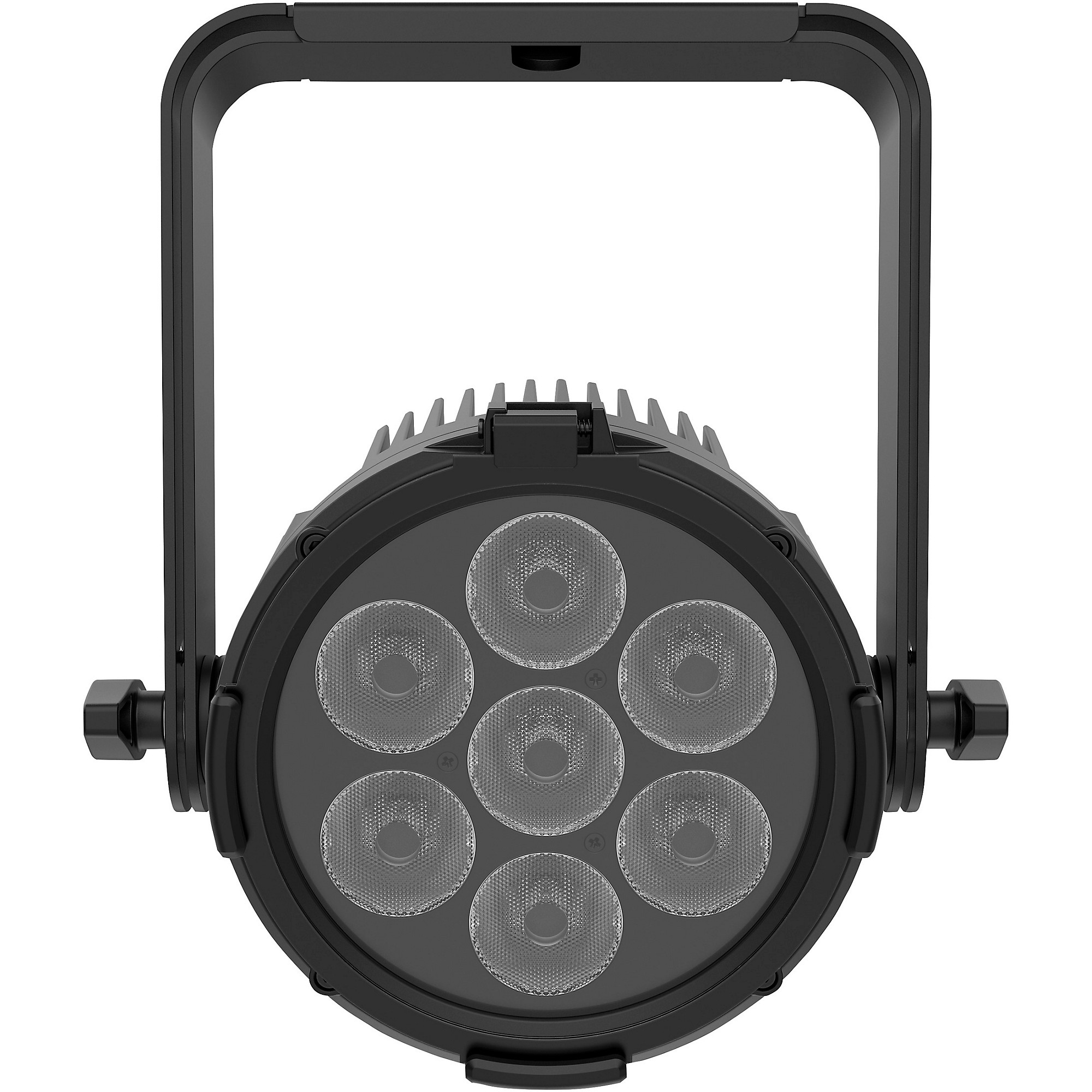

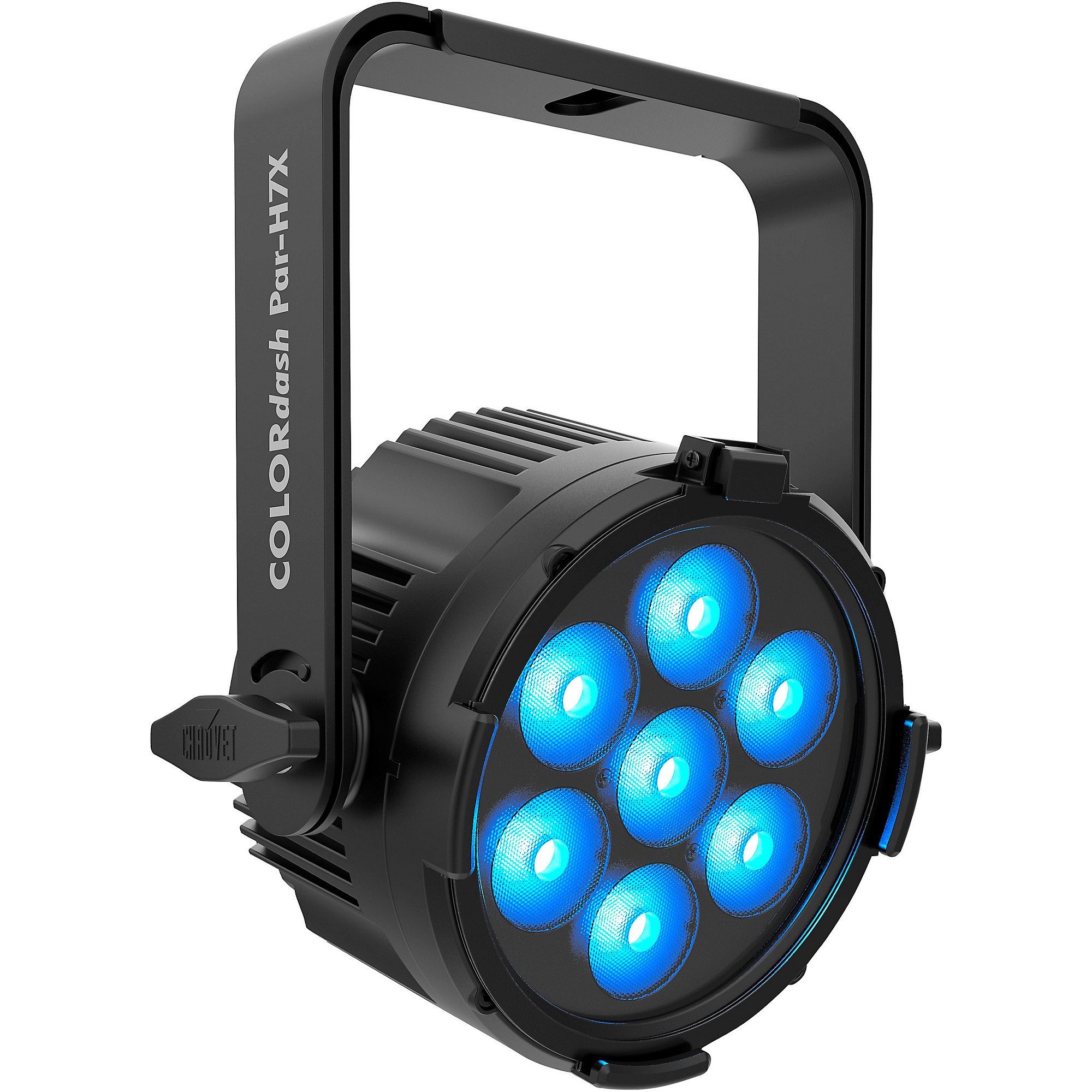

The CHAUVET Professional COLORdash Par H7X provides the lighting capabilities you need for any event. With seven LEDs (RGBAW+UV), you'll have rich color washes with smooth transitions. You can select from five DMX personalities to match your control preferences and the adjustable PWM helps eliminate flickering on camera. An easy-to-read OLED display gives you full control over dimming curves, built-in programs, color temperature presets and more. Advanced optics ensure even light distribution and exceptional color mixing. A rugged aluminum housing and IP65-rated connections let you bring dynamic lighting to any venue. For lighting that delivers, the COLORdash Par H7X has you covered.
Specifications
Optical
- Light Source: 7 LEDs (hex-color RGBAW+UV) 84 W, (505 mA), 50,000 hours life expectancy
- Color Temperature (range): 2800–10,000K
- Color Temperature (at full): 14,329K
- Beam Angle: 22.7°
- Field Angle: 37.6°
- Illuminance (total): 522 lux @ 16.4’ (5 m)
- Selectable PWM: 600Hz, 1.2kHz, 2kHz, 4kHz, 6kHz, 25kHz
- Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0–20Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
- Customizable Programs: No
- Dimensions: 10.16 x 9.45 x 4.57” (258 x 240 x 116 mm)
- Weight: 6 lb. (2.7 kg)
- Exterior Color: Black
- Housing Material: Aluminum alloy, Aluminum die-cast
- Accessory Holder/Gel Frame Size: 6.5” (165 mm)
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65

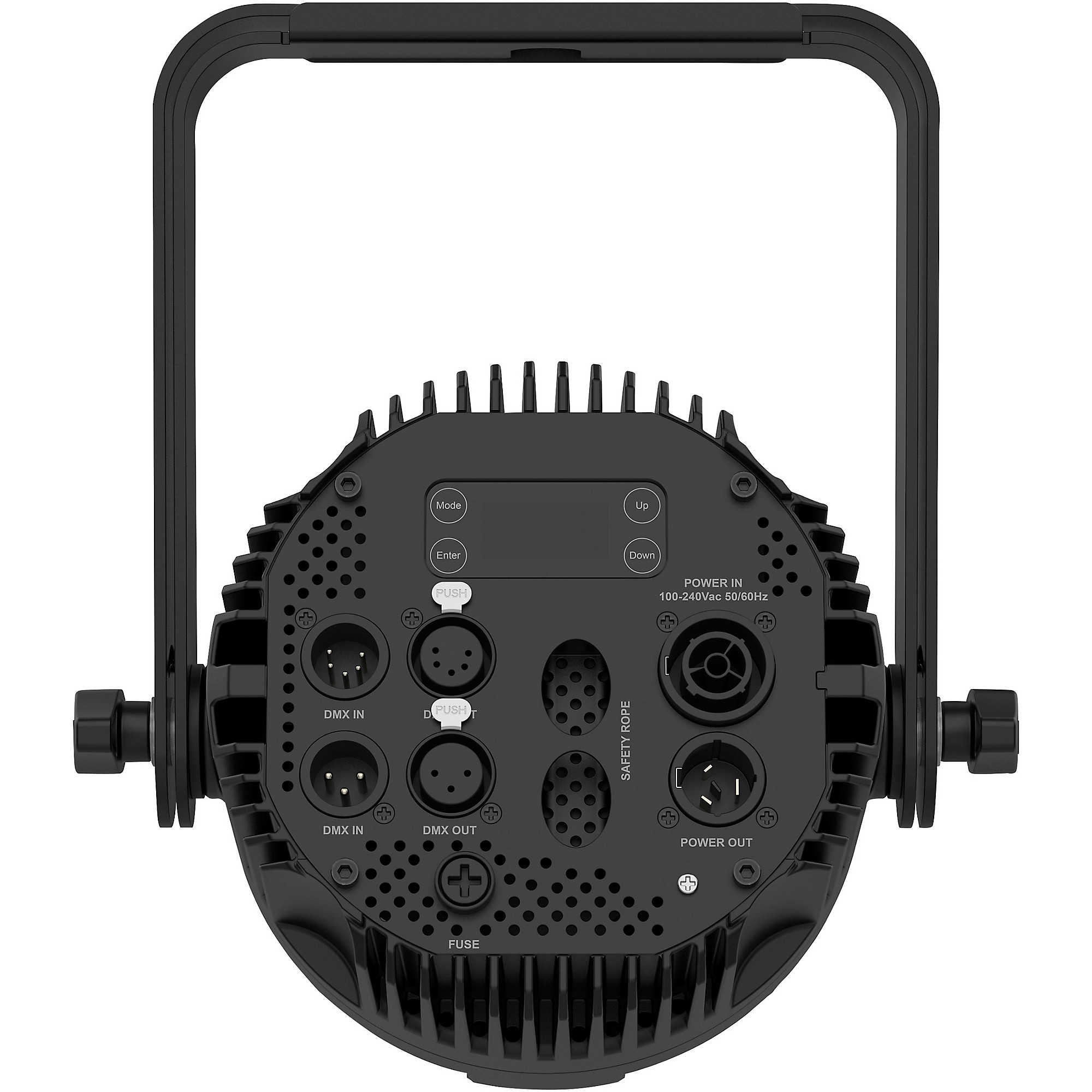

- Data Connectors: 3- and 5-pin XLR, 3- and 5-pin IP65 XLR
- Cable Length (power): 5’ (1.5 m)
- Control Protocol: DMX, RDM
- DMX Channels: 6ch, 8ch, 9ch, 13ch, or 14ch
- Modes/Personalities: 5 personalities (6ch, 8ch, 9ch, 13ch, or 14ch)
- Input Voltage: 100 to 240VAC, 50/60Hz (auto-ranging)
- Power Linking: 20 units @ 120V; 34 units @ 208V; 38 units @ 230V
- Power and Current:
- 70W, 0.592 A @ 120V, 60Hz
- 67W, 0.344 A @ 208V, 60Hz
- 67W, 0.312 A @ 230V, 50Hz
- Certifications: CE, MET, FCC, UKCA
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F–113 °F
- Colordash Par H7X
- Seetronic Powerkon IP65 power cord
- Gel frame holder
- Gel frame
- Professional Clamps: CTC-50HC, CTC-50HCN
- Neutrik powerCON cables
- 3- or 5-pin DMX Cables
Features
- Adjustable PWM to eliminate flickering in video
- RDM for flexible control
- Selectable dimming curves for smooth fades
- OLED display with password protection
