A feature-packed LED cyclorama light with 19,000+ lumens and advanced optics.

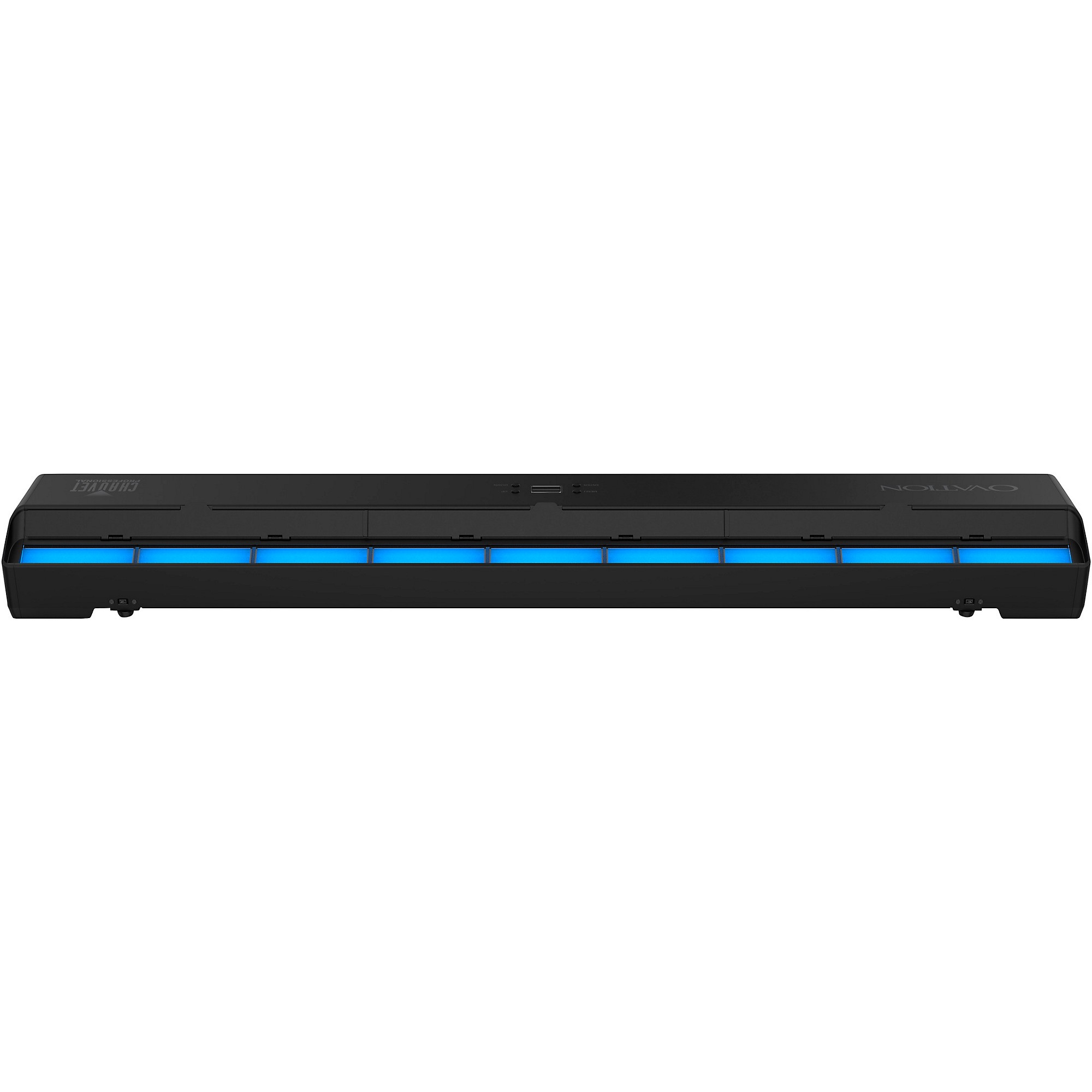

The CHAUVET Professional Ovation CYC 3FC provides musicians with a versatile and portable wash light. Its 180 LEDs generate 19,575 lumens of bright, balanced light across the stage. You'll appreciate the CYC 3FC's electronic dimming, while an electronic strobe offers adjustable flash rates of 0–29Hz for dramatic effects. With two DMX personalities and a lightweight yet durable housing, the Ovation CYC 3FC gives you professional power and performance in a compact package.
Specifications
- Optical
- Light Source: 180 LEDs (36 red, 36 green, 36 blue, 36 amber, 36 lime) 2.5W to 3.5W, (725 mA)
- Color Temperature (range): 2800 to 6500K
- CRI (3200K): 90
- Beam Angle (Horizontal): 111.4°
- Field Angle (Horizontal): 151.8°
- Beam Angle (Vertical): 76.7°
- Field Angle (Vertical): 134.4°
- Lumens: 19,575
- Illuminance (total): 280 lux @ 16.4’ (5 m)
- PWM Frequency: 600, 1200, 2000, 4000, 6000, 25,000Hz
- Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 29Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Dim Curves: 4
- Built-in Automated Programs: Yes
- Customizable Programs: No
- Recall Custom Programs: No
- Construction/Physical
- Dimensions: 47.13 x 6.30 x 4.33” (1197 x 160 x 110 mm)
- Weight: 24.6 lb. (11.2 kg)
- Exterior Color: Black
- Housing Material: Aluminum die-cast
- Connections
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin XLR
- Cable Length (power): 5’ (1.5 m)
- Control
- Control Protocol: DMX, RDM
- DMX Channels: 2, 4, 5, 8, 11, 13, 14, 16, or HSV
- Modes/Personalities: 9 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV)
- Electrical
- Input Voltage: 100 to 240VAC, 50/60Hz (auto-ranging)
- Power Linking: 4 units @ 120V; 6 units @ 208V; 7 units @ 230V
- Power and Current: 345W, 2.93 A @ 120V, 60Hz
- Power and Current: 338W, 1.77 A @ 208V, 60 Hz
- Power and Current: 334W, 1.64 A @ 230V, 50Hz
- Certifications
- Certifications: CE, MET, FCC, UKCA
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
- What's Included
- Ovation CYC-3FC
- Seetronic Powerkon power cord
- Omega brackets with mounting hardware
- Optional Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Seetronic Powerkon power linking cables
- 3-pin or 5-pin DMX Cables
