Item #1612559 Model #OVATIONE2FC

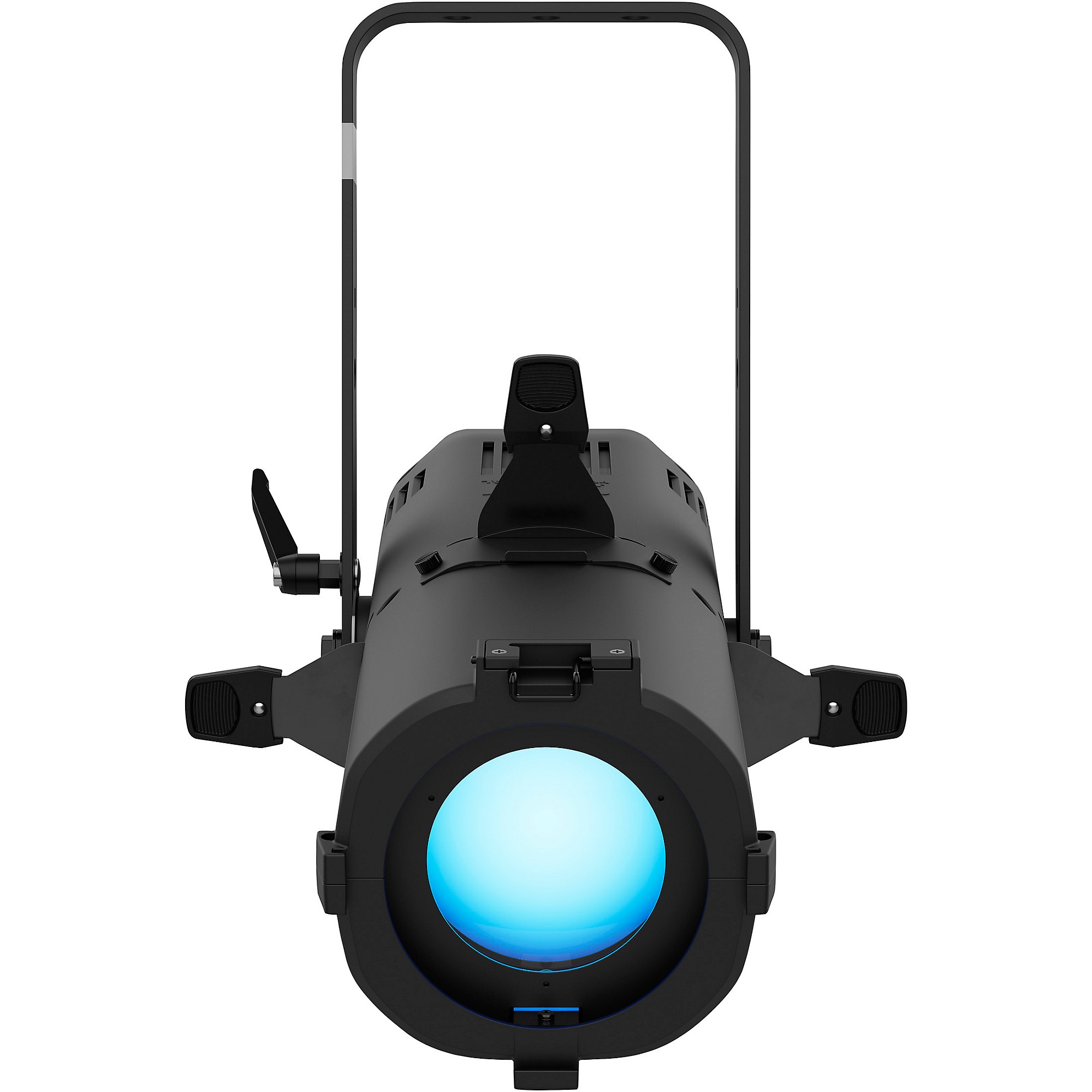

CHAUVET Professional Ovation E-2FC RGBAL Ellipsoidal with included Lens Tube Standard

$1,599.99

Availability
Delivery
Out of stock
Pickup In-Store
Choose Store

This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Email me when in stock

Save to Wishlist

Illuminate productions with nuanced LED color effects and beam shaping control.

The CHAUVET DJ Ovation E-2FC provides full-spectrum LED lighting for small theaters and studios. With 72 LEDs across red, green, blue, cyan, amber and lime wavelengths, it delivers 2800K–8000K color temperatures with high CRI for accurate color rendering. An integrated 23.8°–51.8° zoom lens and +/- green adjustment provide precise control over beam size, shape and tint. Pre-programmed color temperature presets, standalone color mixing and ultrasmooth 18-bit dimming curves give lighting designers an expansive creative palette.

Specifications
OPTICAL
  • Light Source: 72 LEDs (15 red, 11 green, 6 blue, 4 cyan, 14 amber, 22 lime) 6 to 9.75W, (1.5 A), 50,000 hours life expectancy
  • Color Temperature (range): 2800–8000K
  • Color Temperature (at full): 4525K
  • CRI (3200K): 93
  • Beam Angle Spot: 23.8°
  • Beam Angle Flood: 46.4°
  • Beam Angle 50% Zoom: 38.7°
  • Field Angle Spot: 25.6°
  • Field Angle Flood: 51°
  • Field Angle 50% Zoom: 41.3°
  • Cutoff Angle Spot: 24.9°
  • Cutoff Angle Flood: 51.8°
  • Cutoff Angle 50% Zoom: 41.9°
  • Zoom Range: 23.8° to 51.8°
  • Lumens (Spot): 3708 lm
  • Lumens (Flood): 5608 lm
  • Lumens (50% Zoom): 5147 lm
  • Illuminance (Spot): 1107 lux @ 5 m
  • Illuminance (Flood): 488 lux @ 5 m
  • Illuminance (50% Zoom): 595 lux @ 5 m
  • Selectable PWM: 600Hz, 1,200Hz, 2,000Hz, 4,000Hz, 6,000Hz, 25,000Hz
DYNAMIC EFFECTS
  • Framing Shutters: Yes
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Manual
  • Focus: Manual
  • Strobe Rate: 0–25Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
Built-in Automated Programs: YesCONSTRUCTION / PHYSICAL
  • Dimensions: 18.1 x 12.2 x 17.5”
  • Weight: 14.8 lb.
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 6.25”
  • Gobo Size (Optional): "M": 66 mm (outside), 48 mm (image), 2 mm (max. thickness)
CONNECTIONS
  • Power Connection: Edison (Local) plug to Seetronic Powercon IP65
  • Power Input: Seetronic Powercon IP65
  • Power Output: Seetronic Powercon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5’
  • Software Connection: USB
CONTROL
  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV
  • Modes/Personalities: 9 personalities (1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV)
ELECTRICAL
  • Input Voltage: 100 to 240VAC, 50/60Hz (auto-ranging)
  • Power Linking: 7 units @ 120V; 10 units @ 208V; 12 units @ 230V
  • Power and Current: 208W, 1.71 A @ 120V, 60Hz
  • Power and Current: 219W, 1.10 A @ 208V, 60Hz
  • Power and Current: 220W, 0.98 A @ 230V, 50Hz
CERTIFICATIONS / QUALIFICATIONS
  • CE, MET, FCC, UKCA
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F
WHAT'S INCLUDED
  • Ovation E-2FC
  • Seetronic Powerkon power cord
  • Ovation Metal Gobo Holder ("M" Size)
  • Soft Focus Filter
  • Quick Reference Guide or User Manual
  • OPTIONAL ACCESSORIES
  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Ovation E-2 Iris (Model: OVE2IRIS)
  • Seetronic Powerkon power linking cables
  • 5-pin DMX Cables

Features

  • High CRI and CQS LEDs with color temperature presets from 2800K–8000K
  • Integrated 25–50º zoom lens
  • Nine DMX personalities with ultra-smooth 18-bit dimming curves
  • Dedicated focus mode button for one-touch activation without a board-op
