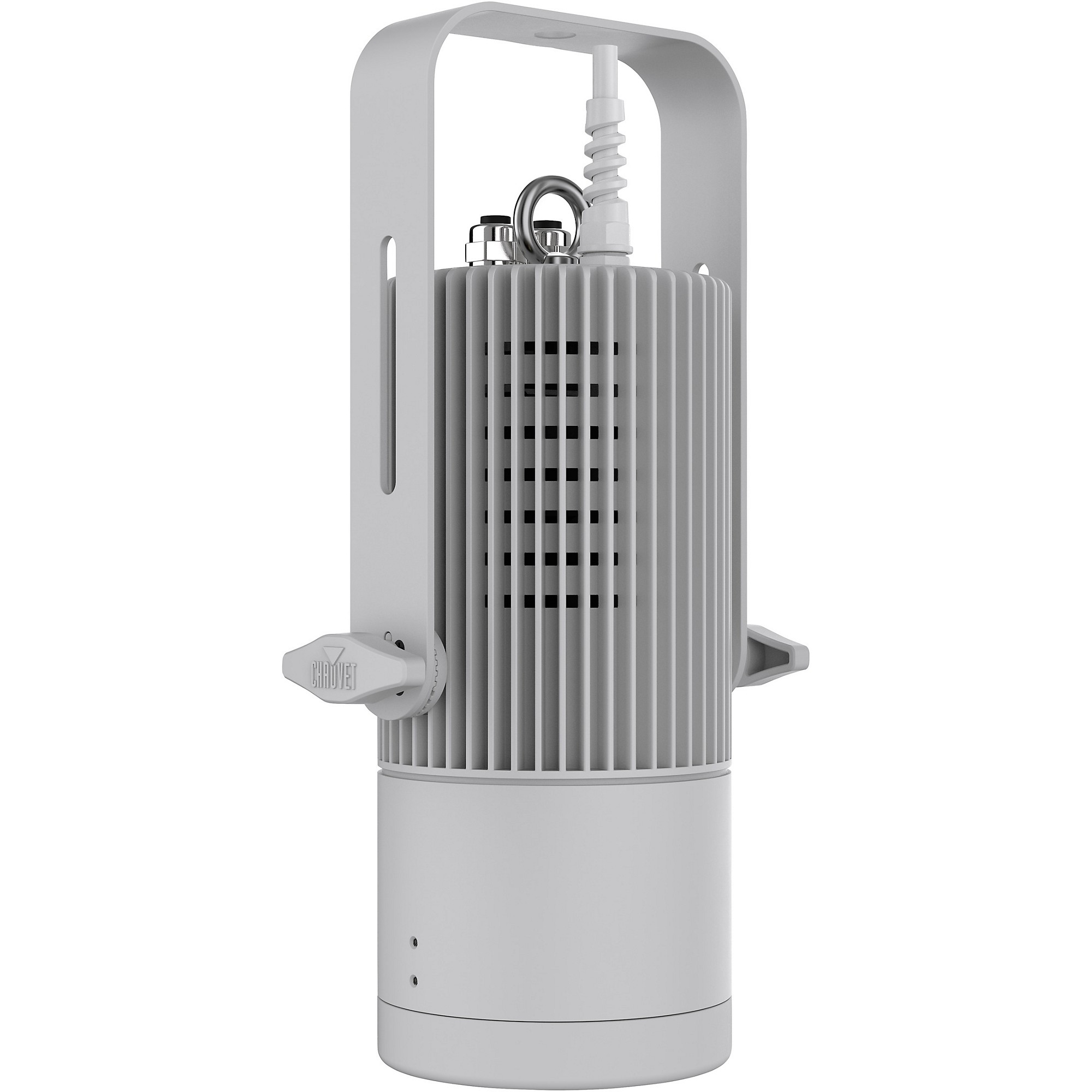

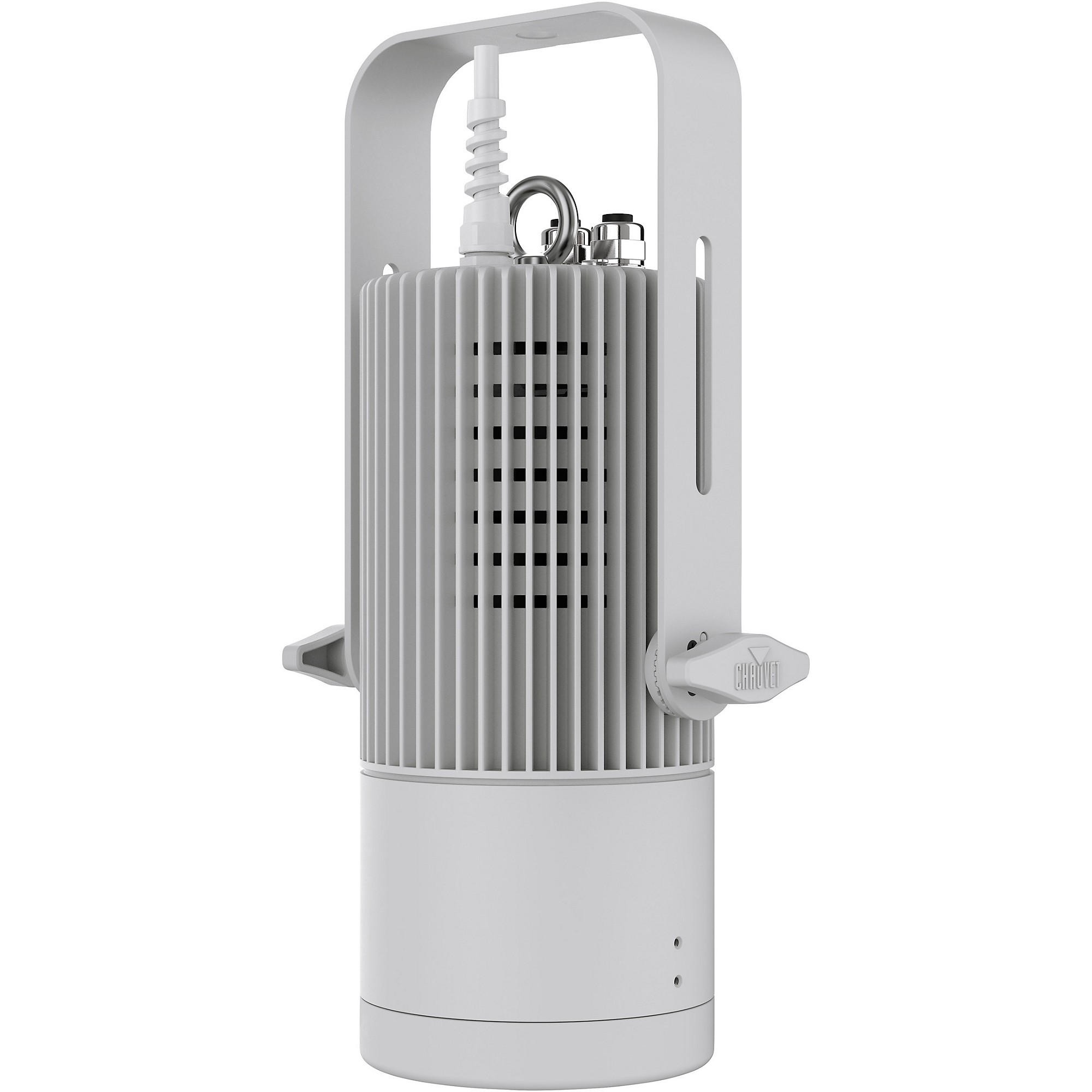

A versatile, full-color LED houselight packed with features for the stage.
The CHAUVET DJ Ovation H-55FC provides full-color, convection-cooled house lighting in a compact package. With interchangeable lens plates, you can adapt it to different trim heights and beam angles, allowing you to fine-tune coverage for smaller venues. The H-55FC offers 16-bit dimming for ultrasmooth fades and adjustable PWM to prevent flickering on camera. It includes multiple mounting options like a removable fixture yoke, recess kit and sconce kit. The H-55FC's 26 LEDs generate a high CRI, full-color output with punchy saturation, ideal for enhancing the aesthetics of theaters, recital halls and houses of worship. With DMX, W-DMX and RDM control, you have added programming flexibility. The H-55FC lets you focus on the performance, trusting that it will bathe the stage in rich, vibrant light. Compact yet powerful, the H-55FC delivers professional-grade results for small-scale applications where a full-size lighting rig won't fit. It packs advanced features into a minimal footprint, simplifying installation and programming. For nuanced, theatrical washes in tight spaces, the H-55FC is an innovative solution.
Specifications
- Dynamic Effects
- Light Source: 26 LEDs (6 red, 6 green, 6 blue, 5 amber, 4
- lime) 2.62–5.25W, (840 mA), 4807K, 50,000 hours life
- expectancy.
- Color Temperature (at full): 4807K
- CRI: 82
- Beam Angle (w/80° filter): 46.1°
- Beam Angle (w/65° lens): 63.3°
- Beam Angle (w/45° lens): 38.8°
- Beam Angle (w/25° lens): 24.7°
- Field Angle (w/80° filter): 76.8°
- Field Angle (w/65° lens): 86.9°
- Field Angle (w/45° lens): 78.4°
- Field Angle (w/25° lens): 46.7°
- Illuminance (w/80° filter): 152 lux @ 5 m
- Illuminance (w/65° lens): 115 lux @ 5 m
- Illuminance (w/45° lens): 173 lux @ 5 m
- Illuminance (w/25° lens): 430 lux @ 5 m
- Lumens (w/80° filter): 2,698
- Lumens (w/65° lens): 2,928
- Lumens (w/45° lens): 2,691
- Lumens (w/25° lens): 2,849
- Selectable PWM: 600Hz, 1,200Hz, 2,000Hz, 4,000Hz, 6000Hz, 25,000Hz
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0–30Hz
- Color Temperature Presets: Yes/No
- Dim Modes: 4
- Built-in Automated Programs: Yes
- Connections
- Dimensions: 13.14 x 6.92 x 4.52” (334 x 176 x 115 mm)
- Weight: 7.4 lb. (3.4 kg)
- Exterior Color: Black
- Power Connection: Bare-wired
- Power Input: Hard-wired
- Data Connectors: 5-pin XLR, Phoenix connector
- Cable Length (power): 15’ (4.5 m)
- Electrical
- Control Protocol: DMX, W-DMX, RDM
- DMX Channels: 4, 5, 8, 11, 13, 14, 16 or HSV
- Modes/Personalities: 8 personalities (2, 4, 5, 8, 11, 13, 14,
- 16, HSV)
- Input Voltage: 100 to 240VAC, 50/60Hz (auto-ranging)
- Power and Current: 62W, 0.541 A @ 120V, 60Hz
- Power and Current: 64W, 0.308 A @ 208V, 60Hz
- Power and Current: 64W, 0.278 A @ 230V, 50Hz
- CE, MET,
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F–113 °F (-10 °C–45 °C)
- Ovation H-55FC
- 65°, 40° and 25° Lens
- 80° Filter
- Egg Crate
- Recess and Sconce Mounting Kits
- W-DMX Transmitter
- Professional Clamps: CTC-50HC, CTC-50HCN
- 5-pin DMX Cables
- RDM2go
Features
- Compact full color LED houselight with interchangeable lenses
- 16-bit dimming and adjustable PWM for flicker-free operation
- DMX, RDM andW-DMX control for flexible programming
- Multiple mounting options: yoke, recess kit, sconce kit
