Item #1585569 Model #ROGUER2XWASHVW

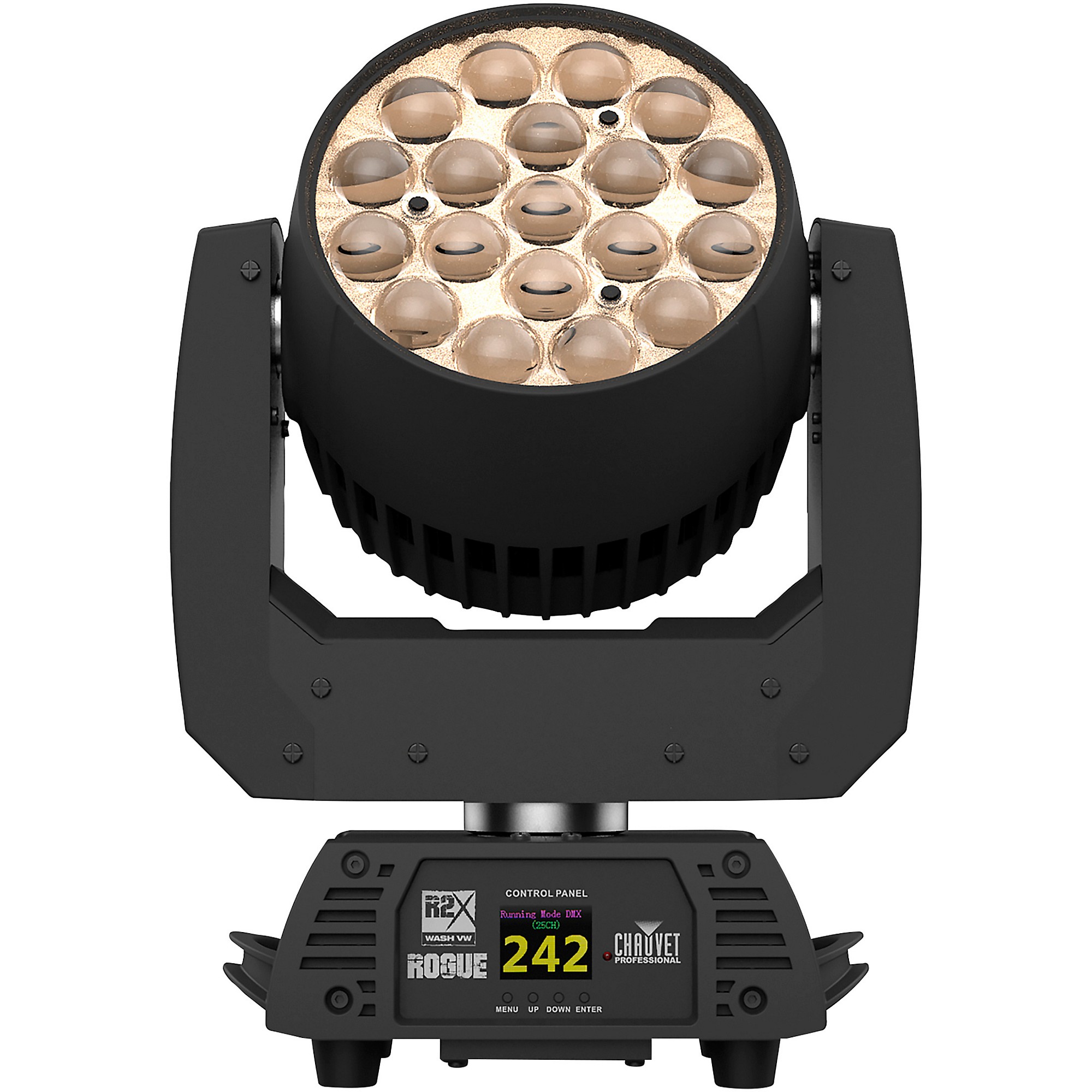

CHAUVET Professional Rogue R2X Wash High Output LED Variable White Wash Standard

$2,000.00

Availability
Delivery
Out of stock
Pickup In-Store
Choose Store

This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Email me when in stock

Save to Wishlist

Fully featured variable white LED yoke wash fixture with LED zone control and zoom.

The CHAUVET Professional Rogue R2X Wash VW is a variable white version of the industry-leading Rogue R2X Wash. Ideal for broadcast and exhibition markets, this versatile unit is capable of rendering nearly any temperature of white ranging from 2600 to 6075K. Rogue R2X Wash utilizes 19 (25 W) Warm White and Cool White LEDs, offering five zones of LED control for pixelmapping effects, as well as built-in automated programs. The versatile zoom range of 12° to 49° and unique lens design allows for full coverage in even the widest of areas. Control your way via DMX or RDM.

Includes Neutrik powerCON power cord and Omega bracket with mounting hardware
Specifications
Optical
  • Light Source: 19 LEDs (CW and WW) 25 W, (1.5 A), 50,000 hours life expectancy
  • Color Temperature (range): 2600 to 6075 K
  • Beam Angle: 8° to 34.4°
  • Field Angle: 11.3° to 50.4°
  • Zoom Angle: 11.3° to 50.4°
  • Lumens – Source: 10,700 lm
  • Lumens – Output: 10,918 lm
  • Illuminance (11.3°): 14,499 lux @ 5 m
  • Illuminance (50.4°): 1,266 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
  • Pan and Tilt: 540°/230°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Temperature Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No
Connections
  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 15, 18, 23, 34 or 36
  • Modes/Personalities: 7 personalities (15CH, 18CH, 23CH,
  • 23CH MS, 34CH, 36CH or 36CH MS)
Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 4 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V
  • Power and Current: 336 W, 2.825 A @ 120 V, 60 Hz
  • Power and Current: 335 W, 1.620 A @ 208 V, 60 Hz
  • Power and Current: 339 W, 1.467 A @ 230 V, 50 Hz
Certifications / Qualifications
  • CE, MET, FCC
  • IP Rating: IP20, dry location

Features

  • 16-bit dimming of master dimmer, individual colors for smooth control of fades
  • 19 variable white LEDs, 25 W each
  • 3- and 5-pin DMX input/output connections
  • 5 zones of LED control for pixel mapping control
  • Unique lens design for excellent blending
  • Fast, smooth pan and tilt movement
  • Built-in color temp presets from 2800 K to 6000 K
  • RDM enabled for remote addressing and trouble shooting
  • 6 distinct dimming modes for advanced control
  • Omega mounting bracket, fits all Rogue and Maverick fixtures
  • Easy-to-read OLED display with simple, effective menu options
  • Simple and complex DMX channel profiles for programming versatility
