Item #1591964 Model #4011-DF-G-B01-015

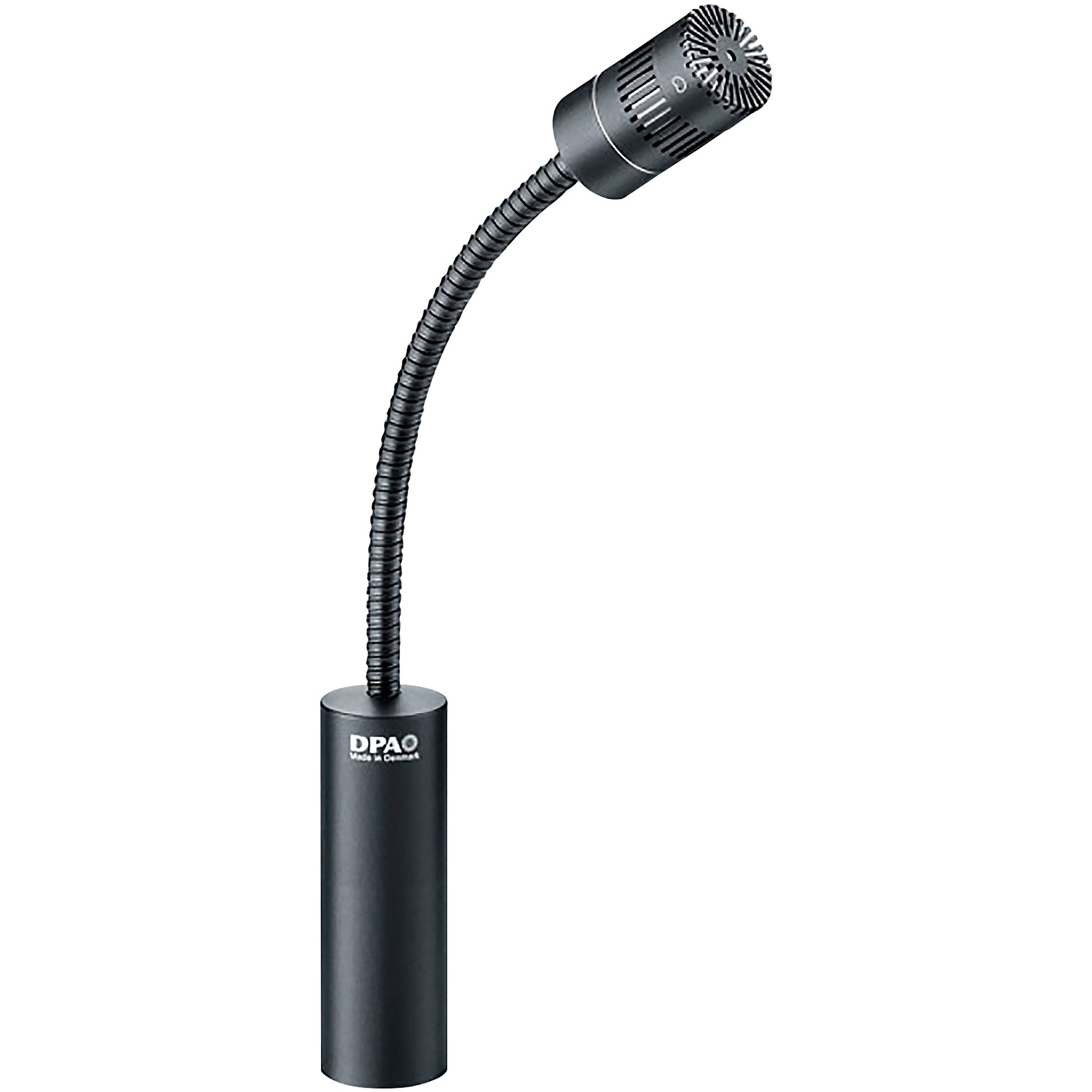

DPA Microphones 4011 Cardioid Mic, Black, XLR, 20 cm (8 in) Boom, Full Gooseneck Standard

$2,140.00

Availability
Delivery
Out of stock
Pickup In-Store
Choose Store

This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Email me when in stock

Save to Wishlist

A high-quality stage voice or instrument mic.

The DPA Microphones 4011 Cardioid Mic is the ultimate floor stand solution, offering a high-quality stage voice or instrument mic. This 4011 Cardioid Mic delivers low noise and a natural voice and is highly direction for high isolation. Other features include a rapidly stabilizing microphone boom pole, modular flexibility, integrated shock-mounting in floor base, and an exclusive, elegant design.
Specifications
  • Directional pattern: Cardioid
  • Principle of operation: Pressure gradient
  • Cartridge type: Pre-polarized condenser
  • Frequency response: 20 Hz - 20 kHz
  • Effective frequency range, ±2 dB, at 30 cm (11.8 in): 40 Hz - 20 kHz
  • Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB (max. 27 dB)
  • Distortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peak
  • Dynamic range: Typ. 121 dB
  • Max. SPL, THD 10%: 144 dB SPL peak
  • Rated output impedance: 100 Ω
  • Minimum load impedance: 2 kΩ
  • Cable drive capability: 100 m (328 ft)
  • Output balance principle: Impedance balancing
  • Common mode rejection ratio (CMRR): > 40 dB
  • Power supply (for full performance): P48 (Phantom Power)
  • Current consumption: 3.5 mA
  • Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • Color: Matte black
  • Microphone diameter: 19 mm (0.75 in)
  • Capsule diameter: 19 mm (0.75 in)
  • Microphone length: Capsule: 23 mm (0.9 in), Boom poles: 20 cm (8 in), 32 cm (13 in), 47 cm (18 in), 77 cm (30 in), 122 cm (48 in)
  • Maximum output voltage, RMS: 2.2 V
  • Polarity: +V at pin 2 for positive sound pressure
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%
  • Matching tolerance (frequency response and sensitivity): ±1 dB
  • Phase deviation for kit: < 10°

Features

  • Low noise and natural voice
  • Highly directional for high isolation
  • Uniform, frequency independent directionality
  • Exclusive, elegant design
  • Integrated shock-mounting in floor base
  • Rapidly stabilizing microphone boom pole
  • Modular flexibility
