1.4 in cardioid mic with a side cable entry perfect for unobtrusive spot miking.

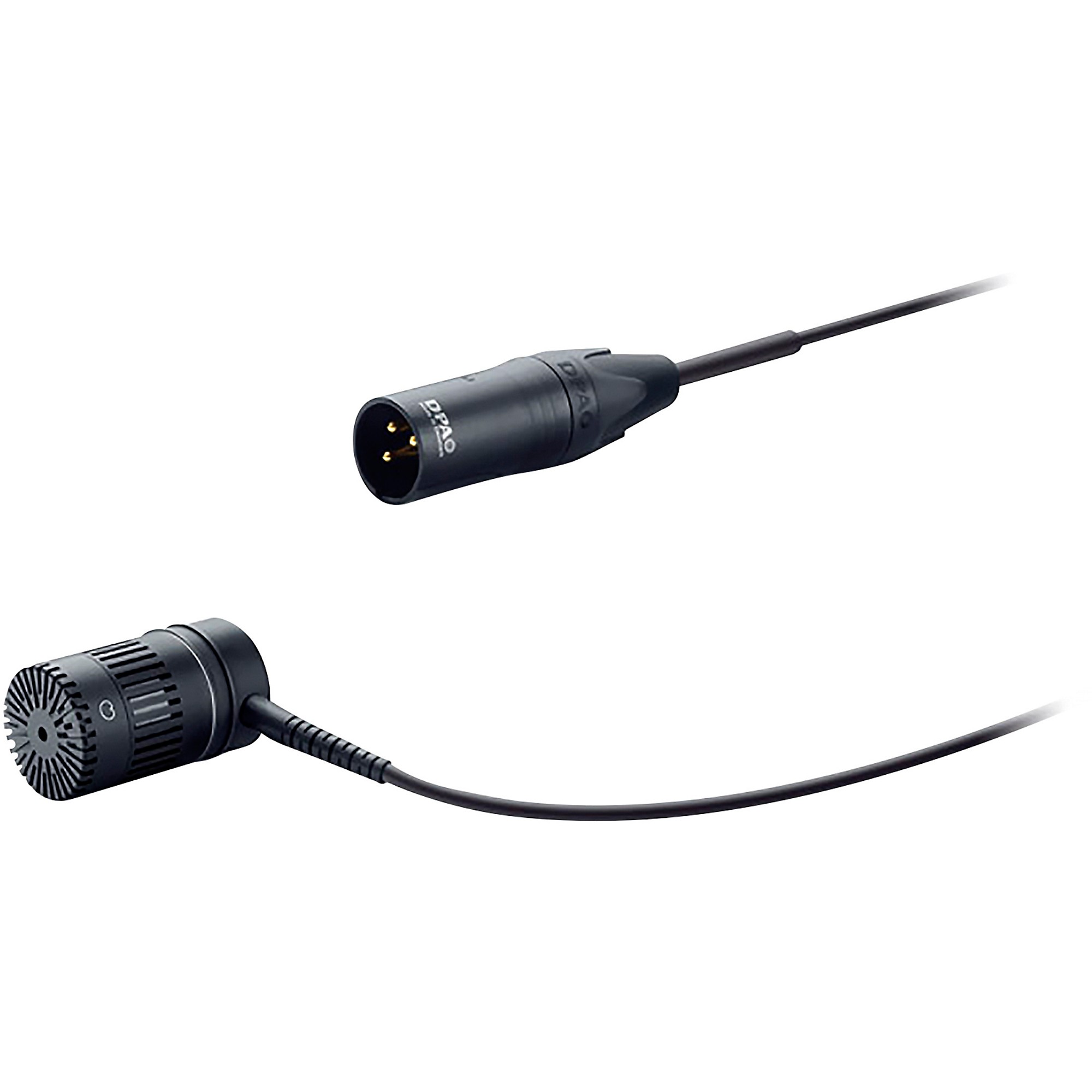

Ideal for unobtrusive spot miking, such as hanging or table use, the DPA Microphones 4011ES Cardioid Mic is an ultra-compact cardioid condenser microphone. The mic has a length of only 1.4" and a low-key appearance. This solution features an integrated cable solution with a side cable entry. This allows the mic to be hung from the ceiling and create precise and repeatable positions and angles when spot miking orchestra sections or ambience atmospheres. The 4011ES replaces the non-modular legacy 4021 Compact Cardioid Condenser Mic.
The DPA Microphones 4011ES Cardioid Mic is renowned in recording studios and live applications around the world as an exceptional mic. State-of-the-art components have been carefully selected to provide optimal neutrality, accuracy and extremely low distortion.
The principal appeal of the 4011 Cardioid Mic is its directional quality and attention to detail. This mic makes everything sound like the original. The first-order cardioid pickup pattern provides superb separation between sound sources. It’s equally suitable for close-up work on acoustic guitar, grand piano, overheads, percussion, wind instruments and vocals as it is for spot-miking symphonies. It can also handle incredibly high sound pressure levels.
A flat on-axis frequency response and excellent phase response deliver a faithful reproduction of the original sound. The off-axis response is similarly smooth so that any leakage is an accurate reflection of the original, though attenuated according to the true first-order cardioid pickup pattern.
Combine it with the preamp of your choice
As with all of DPA Microphones’ modular pencil microphones, you can combine the Cardioid Mic Capsule with any of their preamps.
The MMP-A Microphone Preamp is an ultra-transparent, transformerless preamp with active drive for impedance balancing. The MMP-C Compact Microphone Preamp is an ultra-compact preamp with active drive for impedance balancing. It has a slightly softer character than the other preamps for their pencil microphones.
Other preamps include the very small form factor types MMP-E Modular Active Cable (XLR output) and MMP-G Modular Active Cable (MicroDot output), allowing for very slim setups. The MMP-G even allows you to match a larger microphone directly to a wireless transmitter.
The DPA Microphones 4011ES Cardioid Mic is renowned in recording studios and live applications around the world as an exceptional mic. State-of-the-art components have been carefully selected to provide optimal neutrality, accuracy and extremely low distortion.
The principal appeal of the 4011 Cardioid Mic is its directional quality and attention to detail. This mic makes everything sound like the original. The first-order cardioid pickup pattern provides superb separation between sound sources. It’s equally suitable for close-up work on acoustic guitar, grand piano, overheads, percussion, wind instruments and vocals as it is for spot-miking symphonies. It can also handle incredibly high sound pressure levels.
A flat on-axis frequency response and excellent phase response deliver a faithful reproduction of the original sound. The off-axis response is similarly smooth so that any leakage is an accurate reflection of the original, though attenuated according to the true first-order cardioid pickup pattern.
Combine it with the preamp of your choice
As with all of DPA Microphones’ modular pencil microphones, you can combine the Cardioid Mic Capsule with any of their preamps.
The MMP-A Microphone Preamp is an ultra-transparent, transformerless preamp with active drive for impedance balancing. The MMP-C Compact Microphone Preamp is an ultra-compact preamp with active drive for impedance balancing. It has a slightly softer character than the other preamps for their pencil microphones.
Other preamps include the very small form factor types MMP-E Modular Active Cable (XLR output) and MMP-G Modular Active Cable (MicroDot output), allowing for very slim setups. The MMP-G even allows you to match a larger microphone directly to a wireless transmitter.
Specifications
- Directional pattern: Cardioid
- Principle of operation: Pressure gradient
- Cartridge type: Pre-polarized condenser
- Frequency response: 20 Hz - 20 kHz
- Effective frequency range, ±2 dB, at 30 cm (11.8 in): 40 Hz - 20 kHz
- Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
- Equivalent noise level, ITU-R BS.468-4L Typ. 25 dB (max. 27 dB)
- Distortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peak
- Dynamic range: Typ. 121 dB
- Max. SPL, THD 10%: 144 dB SPL peak
- Rated output impedance: 100 Ω
- Minimum load impedance: 2 kΩ
- Cable drive capability: 100 m (328 ft)
- Output balance principle: Impedance balancing
- Common mode rejection ratio (CMRR): > 40 dB
- Power supply (for full performance): P48 (Phantom Power)
- Current consumption: 3.5 mA
- Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
- Color: Matte black
- Weight: 109 g (3.8 oz)
- Microphone diameter: 19 mm (0.75 in)
- Capsule diameter: 19 mm (0.75 in)
- Microphone length: 35 mm (1.38 in)
- Maximum output voltage, RMS: 2.2 V
- Polarity: +V at pin 2 for positive sound pressure
- Temperature range: -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH): Up to 90%
- Matching tolerance (frequency response and sensitivity): ±1 dB
- Phase deviation for kit: < 10°
