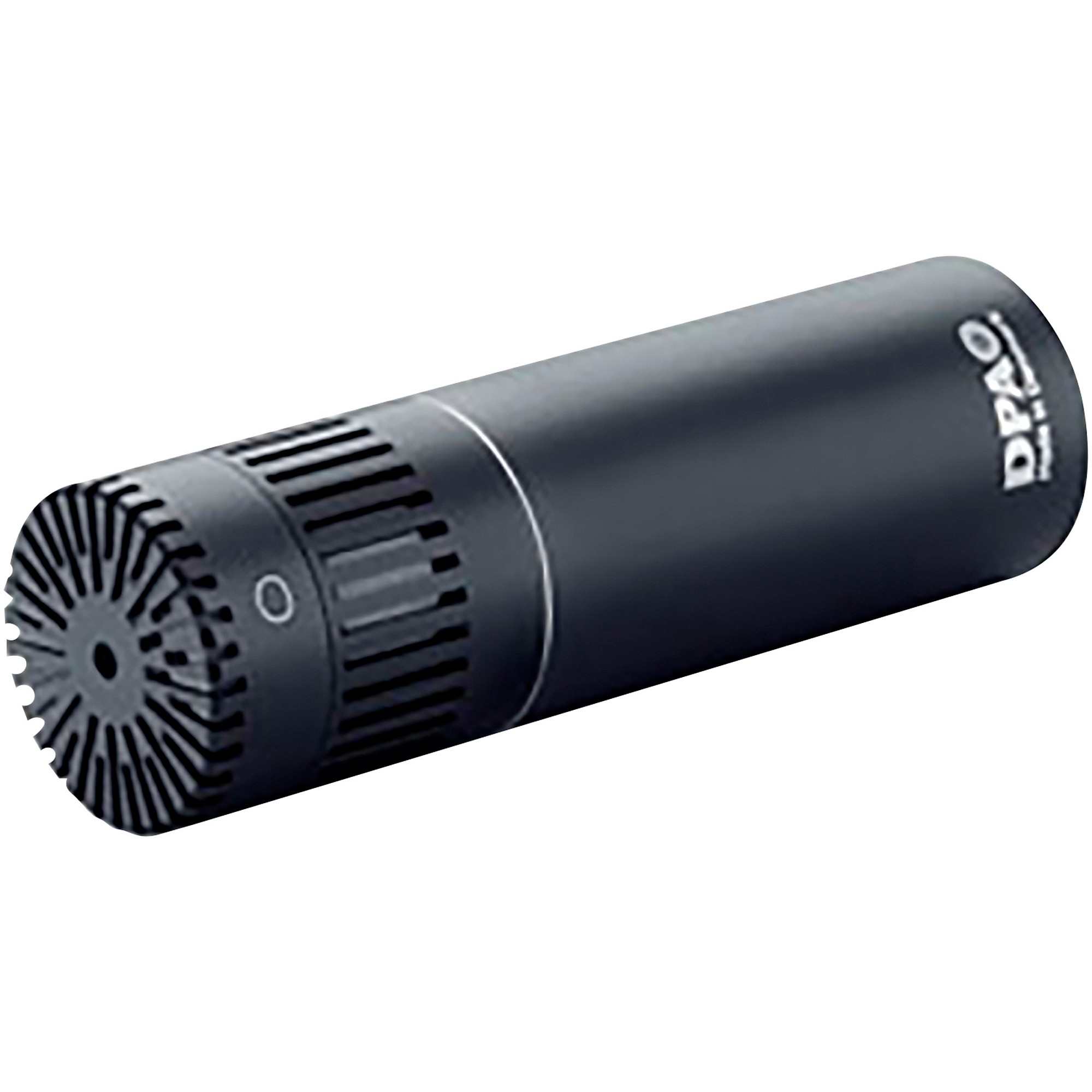

Item #1591967 Model #4015C

DPA Microphones 4015C Compact Wide Cardioid Mic Standard

$1,875.00

Availability
Delivery
Out of stock
Pickup In-Store
Choose Store

This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Email me when in stock

Save to Wishlist

An excellent spot mic for choirs, percussion setups, grand pianos, wind instruments and more.

The DPA Microphones 4015C Compact Wide Cardioid Mic is an excellent spot mic as a fill-in between an omni and a cardioid. The compact version is easier to position than other cardioid microphones. Visually discreet, the 4015C Compact Wide Cardioid Mic represents an indispensably low-profile solution for audio engineers and set designers alike. Tremendously precise and natural-sounding, these mics will certainly exceed expectations when used on choirs, percussion setups, grand pianos, wind instruments and much more.
Specifications
  • Directional pattern: Wide cardioid
  • Principle of operation: Pressure gradient
  • Cartridge type: Pre-polarized condenser
  • Frequency response: 20 Hz - 20 kHz
  • Effective frequency range, ±2 dB, at 60 cm (23.6 in): 40 Hz - 20 kHz
  • Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB (max. 27 dB)
  • Distortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peak
  • Dynamic range: Typ. 121 dB
  • Max. SPL, THD 10%: 152 dB SPL peak
  • Rated output impedance: 100 Ω
  • Minimum load impedance: 2 kΩ
  • Cable drive capability: 100 m (328 ft)
  • Output balance principle: Impedance balancing with Active Drive
  • Common mode rejection ratio (CMRR): > 50 dB
  • Power supply (for full performance): P48 (Phantom Power)
  • Current consumption: 2.8 mA
  • Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • Color: Matte black
  • Weight: 58 g (2 oz)
  • Microphone diameter: 0.75”
  • Capsule diameter: 0.75”
  • Microphone length: 2.5”
  • Maximum output voltage, RMS: 4.5 V
  • Polarity: +V at pin 2 for positive sound pressure
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%
  • Matching tolerance (frequency response and sensitivity): ±1 dB
  • Phase deviation for kit: < 10°

Features

  • Low profile – wide pickup area
  • Natural reproduction
  • Directional ambience pickup
  • Exceptional for vocals
  • Modular flexibility
