Item #1592024 Model #4060-OC-C-F10

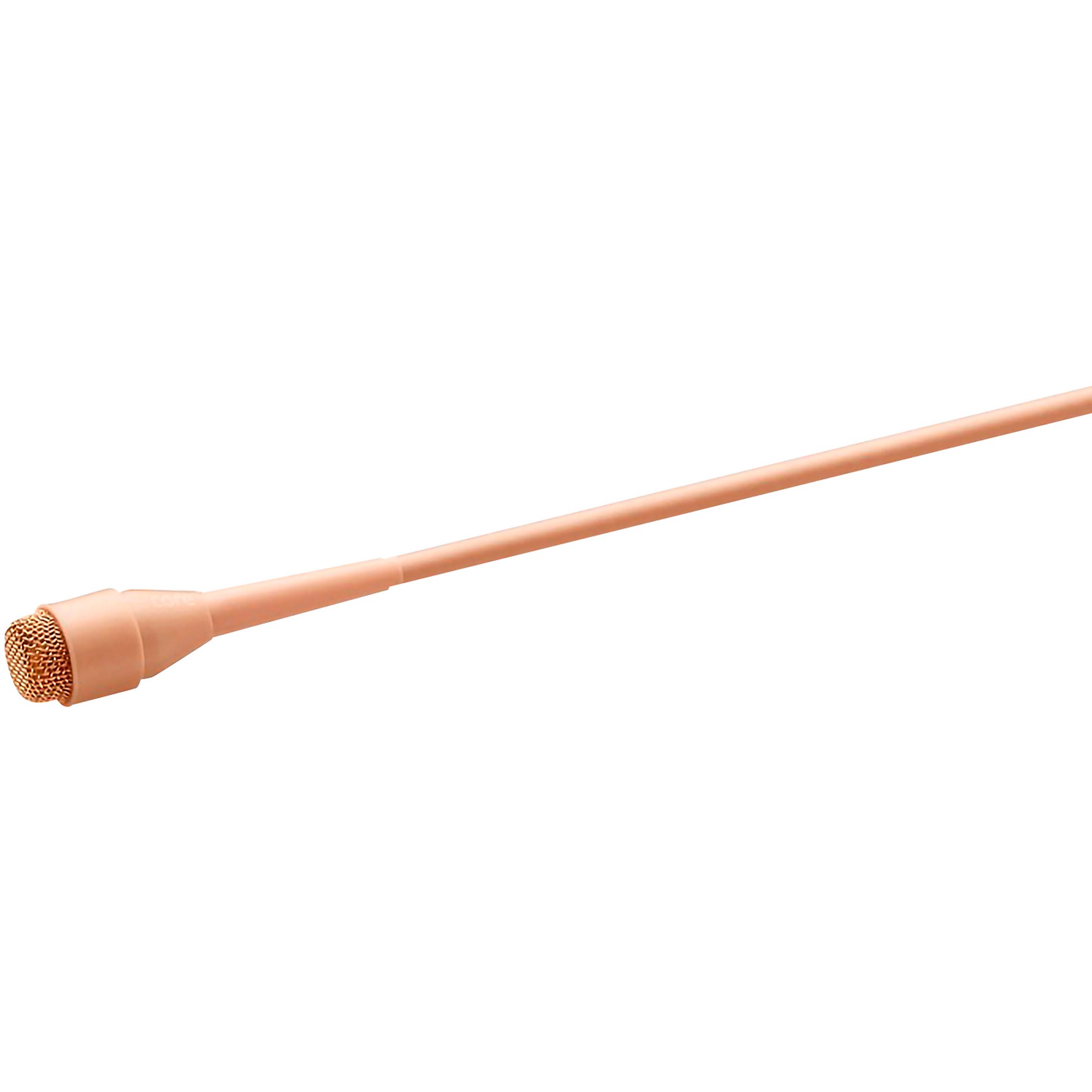

DPA Microphones 4060 CORE Omni Mic, Normal SPL, Beige, TA4F Mini-XLR Standard

$615.00

Availability
Delivery
Out of stock
Pickup In-Store

This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Email me when in stock

Save to Wishlist

An omnidirectional condenser lavalier microphone that's small in size, but mighty in flexibility.

The DPA Microphones 4060 CORE Omni Mic with Normal SPL is an omnidirectional condenser lavalier microphone that’s is small in size, but mighty in flexibility. Due to its miniature size, it exhibits an exceptionally accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup. The omnidirectional pattern also makes it less sensitive to handling noise as well as pop and wind noise.

DPA Microphones originally designed this microphone for use with wireless systems in theaters but today it’s one of the most loved mics for television and film applications. It’s especially suited for capturing speech in all of its nuances and can be used to close-mike a wide range of instruments. This microphone handles sound pressure levels up to 134 dB before clipping occurs. This mic is well-suited for applications where the sound source is more remote or damped and you need to have a good balance of signal versus noise.

This DPA Microphones series was developed to withstand the toughest of conditions. They contain a 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm. This unique, Double Vent Protection System makes the mics greatly resistant to humidity and sweat. These mics are also designed with a Kevlar-reinforced cable relief, which is built to withstand the constant twists, bends and pulls that are part of the everyday use in harsh environments.
Specifications
  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser
  • Frequency response: 20 Hz - 20 kHz
  • Effective frequency range ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
  • Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
  • Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
  • Distortion, THD < 1% - CORE: 126 dB SPL RMS, 129 dB SPL peak
  • Dynamic range – Legacy: Typ. 100 dB
  • Dynamic range – CORE: Typ. 106 dB
  • Max. SPL, THD 10%: 134 dB SPL peak
  • Rated output impedance: 30 - 40 Ω
  • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
  • Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter. With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
  • Connector: MicroDot, TA4F Mini-XLR
  • Color: Beige
  • Weight: 7.5 g (0.26 oz) incl. Cable and MicroDot connector
  • Microphone diameter: 5.4 mm (0.21 in)
  • Microphone length: 12.7 mm (0.5 in)
  • Cable length: 1.8 m (5.9 ft)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%
  • Sensitivity selection tolerance (at 1 kHz): ±1.5 dB

Features

  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Large selection of clips, windscreens, grids and other accessories
  • Modular adapter system fits most professional wireless systems
