Omnidirectional condenser lavalier microphone that’s small in size, but mighty in flexibility.

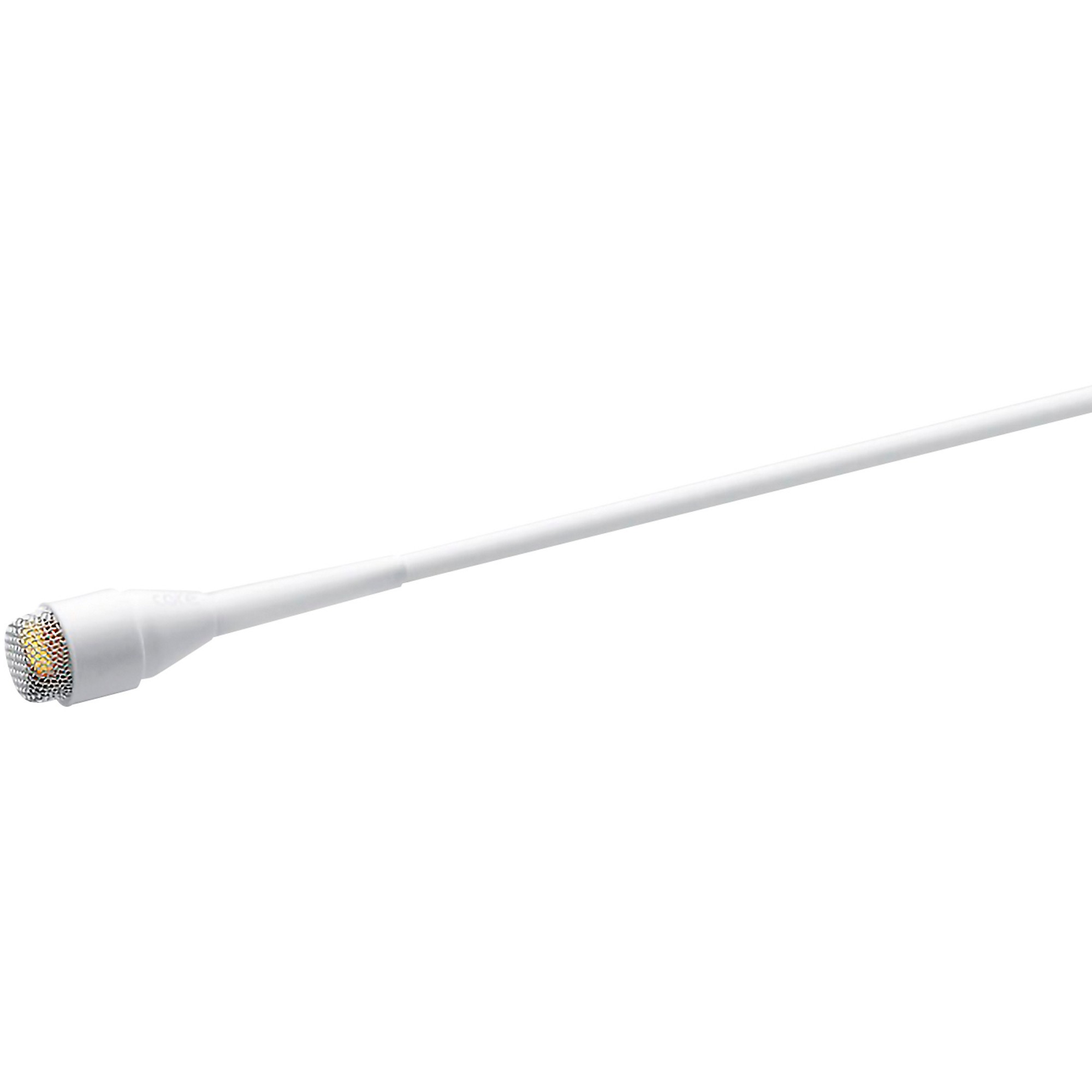

The 4060 Miniature Omnidirectional Microphone, Normal SPL from DPA Microphones is an omnidirectional condenser lavalier microphone that’s small in size, but mighty in flexibility. Due to its miniature size, it exhibits an exceptionally accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup. The omnidirectional pattern also makes it less sensitive to handling noise as well as pop and wind noise.
DPA Microphones originally designed this microphone for use with wireless systems in theaters but today it’s one of the most loved mics for television and film applications as well. It’s especially suited for capturing speech in all of its nuances and can be used to close-mike a wide range of instruments. This microphone handles sound pressure levels of up to 134 dB before clipping occurs. It’s also well-suited for applications where the sound source is more remote or damped and you need to have a good balance of signal versus noise.
DPA Microphones originally designed this microphone for use with wireless systems in theaters but today it’s one of the most loved mics for television and film applications as well. It’s especially suited for capturing speech in all of its nuances and can be used to close-mike a wide range of instruments. This microphone handles sound pressure levels of up to 134 dB before clipping occurs. It’s also well-suited for applications where the sound source is more remote or damped and you need to have a good balance of signal versus noise.
Specifications
- Directional patter: Omnidirectional
- Principle of operation: Pressure
- Cartridge type: Pre-polarized condenser
- Frequency response: 20 Hz - 20 kHz
- Effective frequency range ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
- Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
- Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
- Distortion, THD < 1% - CORE: 126 dB SPL RMS, 129 dB SPL peak
- Dynamic range – Legacy: Typ. 100 dB
- Dynamic range – CORE: Typ. 106 dB
- Max. SPL, THD 10%: 134 dB SPL peak
- Rated output impedance: 30 - 40 Ω
- Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
- Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter
- With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
- Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
- Connector: Mini-Jack
- Color: White
- Weight: 7.5 g (0.26 oz) incl. Cable and MicroDot connector
- Microphone diameter: 5.4 mm (0.21 in)
- Microphone length: 12.7 mm (0.5 in)
- Cable length: 1.8 m (5.9 ft)
- Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
- Temperature range: -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH): Up to 90%
- Sensitivity selection tolerance (at 1 kHz): ±1.5 dB
Features
- Exceptional audio quality
- Uniform, consistent sound between DPA mics
- Extremely rugged and reliable
- Diminutive size made for flexible and easy concealment
- Large selection of clips, windscreens, grids and other accessories
- Modular adapter system fits most professional wireless systems
