Item #1592009 Model #4061-OC-C-B03

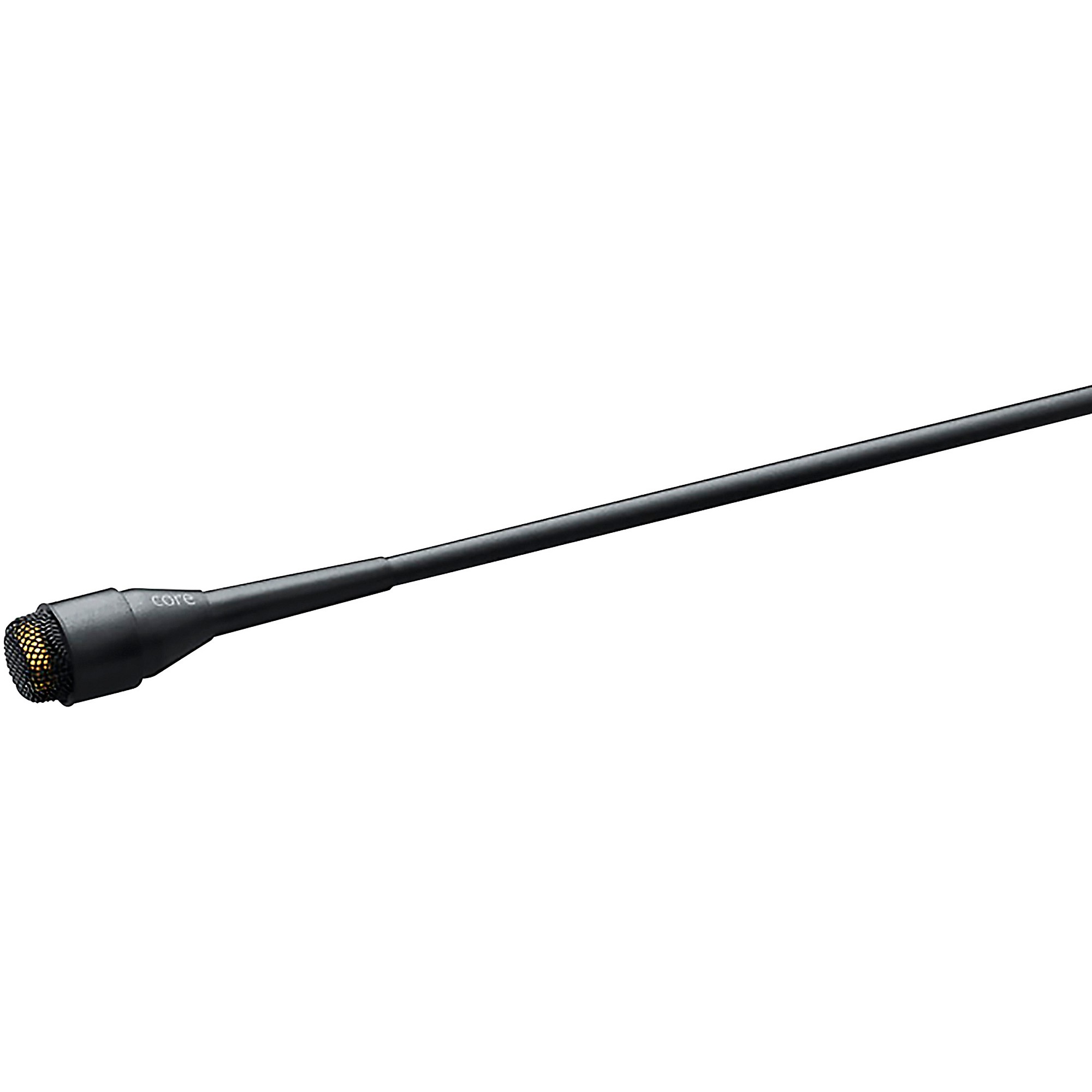

DPA Microphones 4061 CORE Omni Mic, Loud SPL, Black, 3-pin LEMO Standard

$615.00

Availability
Delivery
Out of stock
Pickup In-Store

This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Email me when in stock

Save to Wishlist

Miniature omnidirectional microphone that can handle SPLs of up to 144 dB peak before clipping.

The DPA Microphones 4061 Miniature Omnidirectional Microphone with Loud SPL is acoustically identical to the 4060 Miniature Omnidirectional Microphone, Normal SPL, but its sensitivity is adjusted to accommodate higher sound pressure levels. The 4061 Miniature Omnidirectional Microphone, Loud SPL can handle SPLs of up to 144 dB peak before clipping, making it one of the best miniatures for use on very loud sound sources, such as some instruments and human voices.

In comparison, the 4061 is about 10 dB less sensitive than the 4060 and therefore works well when used for hidden applications, such as mounted on the head or forehead of a theater performer. In this placement, the sound pressure level is about 10 dB louder than what you encounter with chest placement (lapel microphone).
Specifications
  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser
  • Frequency response: 20 Hz - 20 kHz
  • Effective frequency range ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
  • Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
  • Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
  • Distortion, THD < 1% - CORE: 134 dB SPL RMS, 137 dB SPL peak
  • Dynamic range – Legacy: Typ. 97 dB
  • Dynamic range – CORE: Typ. 111 dB
  • Max. SPL, THD 10%: 144 dB SPL peak
  • Rated output impedance: 30 - 40 Ω
  • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
  • Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter. With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
  • Connector: 3-pin LEMO
  • Color: Black
  • Weight: 7.5 g (0.26 oz) incl. Cable and MicroDot connector
  • Microphone diameter: 0.21”
  • Microphone length: 0.5”
  • Cable length: 1.8 m (5.9 ft)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%
  • Sensitivity selection tolerance (at 1 kHz): ±1.5 dB

Features

  • Exceptional audio quality
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Large selection of clips, windscreens, grids and other accessories
  • Modular adapter system fits most professional wireless systems
