Miniature omnidirectional mic that's able to handle sound pressure levels of up to 154 dB before clipping.

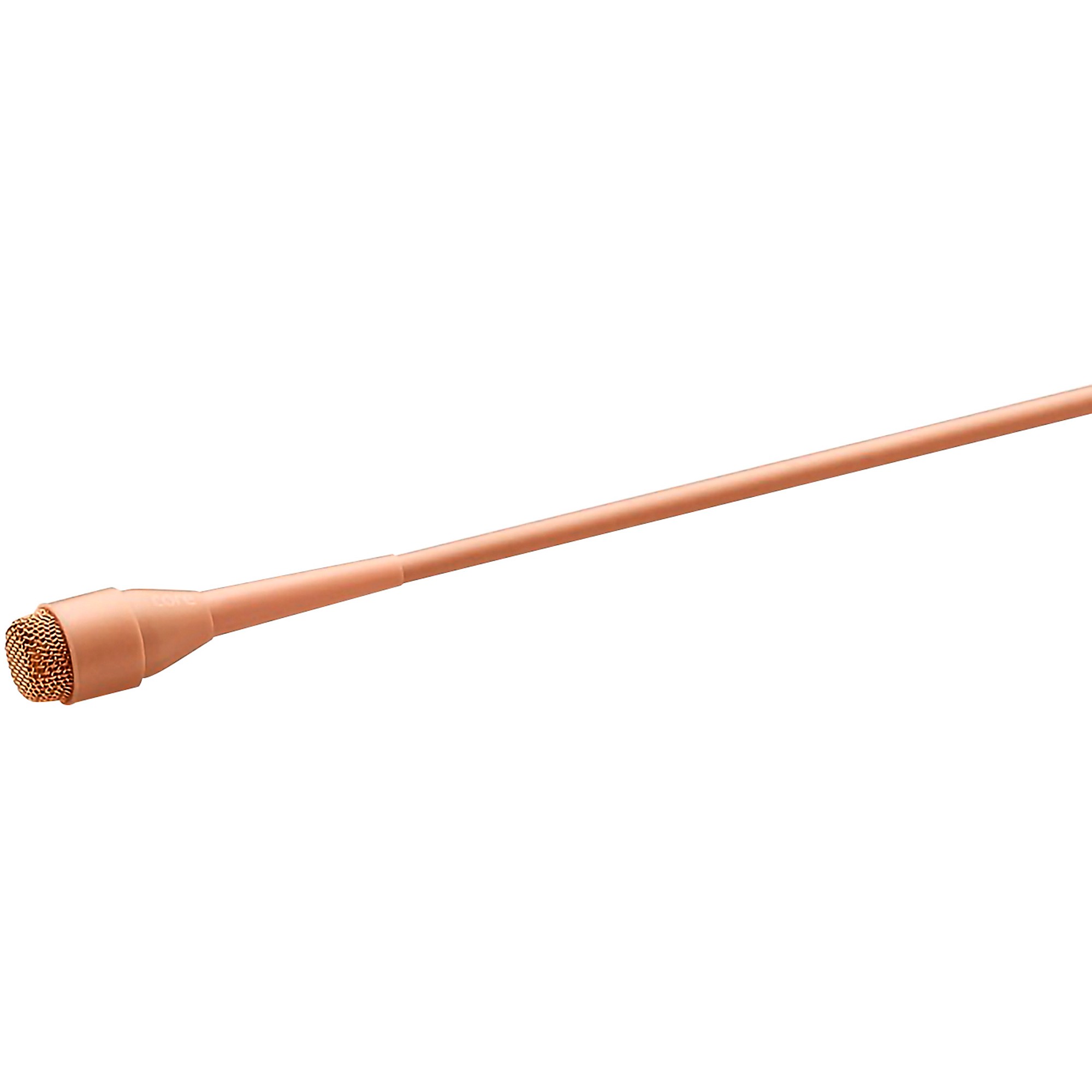

The DPA Microphones 4062 CORE Omni Mic, Extreme SPL, is similar to the others in this DPA Microphones series, but is sensitivity adjusted to match extremely loud sound pressure levels. With the correct power source, the microphone will be able to handle sound pressure levels of up to 154 dB before clipping occurs, making it ideal for close-miking drums and brass. The microphone is also the perfect choice for miking in the engine compartment of cars or directly in the exhaust pipes.
This mic is based on DPA’s original 4060—the very first miniature microphone developed by DPA from the best technology previously only used in hearing aids and measurement microphones. This mic was developed to withstand the toughest of conditions. It contains a 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm. This unique, Double Vent Protection System makes the mic greatly resistant to humidity and sweat. This mic is also designed with a Kevlar-reinforced cable relief, which is built to withstand the constant twists, bends and pulls that are part of the everyday use in harsh environments.
This mic is based on DPA’s original 4060—the very first miniature microphone developed by DPA from the best technology previously only used in hearing aids and measurement microphones. This mic was developed to withstand the toughest of conditions. It contains a 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm. This unique, Double Vent Protection System makes the mic greatly resistant to humidity and sweat. This mic is also designed with a Kevlar-reinforced cable relief, which is built to withstand the constant twists, bends and pulls that are part of the everyday use in harsh environments.
Specifications
- Directional pattern: Omnidirectional
- Principle of operation: Pressure
- Cartridge typ: Pre-polarized condenser
- Frequency response: 20 Hz - 20 kHz
- Effective frequency range ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
- Sensitivity, nominal, ±3 dB at 1 kHz: 1 mV/Pa; -60 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 33 dB(A) re. 20 µPa (max. 37 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 45 dB (max. 49 dB)
- Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
- Distortion, THD < 1% - CORE: 136 dB SPL RMS, 139 dB SPL peak
- Dynamic range – Legacy: Typ. 90 dB
- Dynamic range – CORE: Typ. 106 dB
- Max. SPL, THD 10%: 154 dB SPL peak
- Rated output impedance: 30 - 40 Ω
- Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
- Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter
- With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
- Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
- Connector: MicroDot
- Color: Beige
- Weight: 7.5 g (0.26 oz) incl. Cable and MicroDot connector
- Microphone diameter: 5.4 mm (0.21 in)
- Microphone length: 12.7 mm (0.5 in)
- Cable length: 1.8 m (5.9 ft)
- Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
- Temperature range: -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH): Up to 90%
Features
- Exceptional audio quality
- Extremely rugged and reliable
- Diminutive size made for flexible and easy concealment
- Large selection of clips, windscreens, grids and other accessories
- Modular adapter system fits most professional wireless systems
