Get the interview and keep the distance with the 4097 CORE Interview Kit.
The DPA Microphones 4097 CORE Interview Kit makes it easy to deliver great sound in challenging situations. It contains a 4097 CORE Shotgun Microphone, which shines in outdoor locations, handling inclement weather and limiting intrusive background noises. It’s a professional solution for professional broadcasters, who need amazing sound in a lightweight, small-footprint form factor.
Free-standing solution
Mount the microphone on a tripod via the cold shoe mount and use it as a stationary interview mic on a table.
Transmitter-direct solution
Mount the microphone directly on the transmitter and place it on a podium or table. This is a quick and easy mic solution with a very small presence.
Voice-over recording
For on-the-go voice-over work, there are a number of DPA accessories that quickly turn the mic into the perfect tool for your situation.
A flexible and light solution
For a team doing on-location interviews, especially outdoors, it's important to have professional tools that make the entire process easy and flexible enough for any situation.
When you’re doing distance interviewing inside or out, the 4097 CORE Interview Kit gets you up and running quickly and easily — no extra equipment, complicated setup or workflow changes. A lighter, more flexible solution lightens your bag and eases your work.

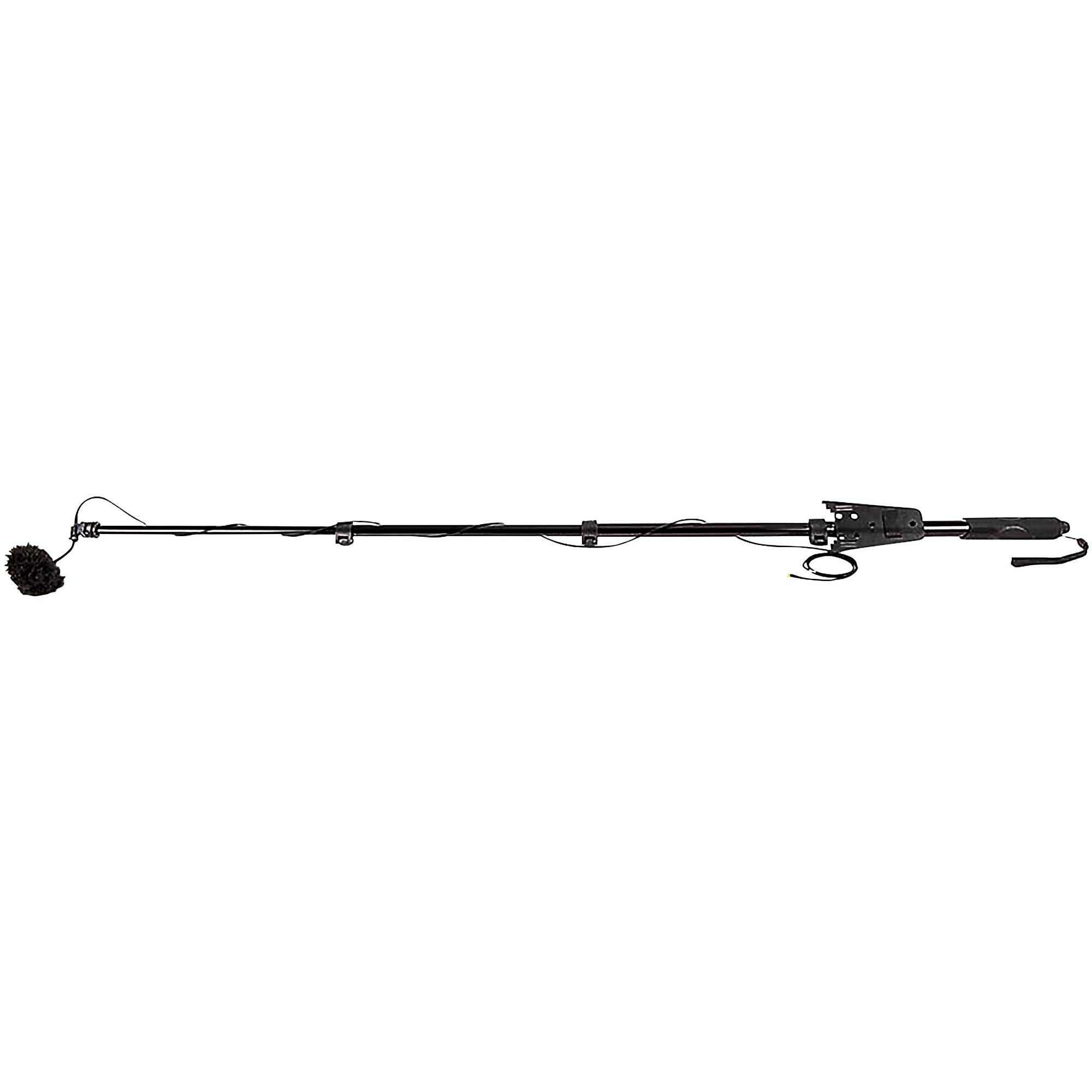

Interview at (more than) arm’s length using the 4097 CORE Micro Shotgun Mic attached to an extremely lightweight telescope boom. The solution collapses down to only about 40 cm (16 in) and extends all the way to 140 cm (55 in).
Free-standing solution
Mount the microphone on a tripod via the cold shoe mount and use it as a stationary interview mic on a table.
Transmitter-direct solution
Mount the microphone directly on the transmitter and place it on a podium or table. This is a quick and easy mic solution with a very small presence.
Voice-over recording
For on-the-go voice-over work, there are a number of DPA accessories that quickly turn the mic into the perfect tool for your situation.
A flexible and light solution
For a team doing on-location interviews, especially outdoors, it's important to have professional tools that make the entire process easy and flexible enough for any situation.
When you’re doing distance interviewing inside or out, the 4097 CORE Interview Kit gets you up and running quickly and easily — no extra equipment, complicated setup or workflow changes. A lighter, more flexible solution lightens your bag and eases your work.
Interview at (more than) arm’s length using the 4097 CORE Micro Shotgun Mic attached to an extremely lightweight telescope boom. The solution collapses down to only about 40 cm (16 in) and extends all the way to 140 cm (55 in).
Specifications
- Directional pattern: Supercardioid
- Principle of operation: Pressure gradient
- Cartridge type: Pre-polarized condenser
- Frequency response: 20 Hz - 20 kHz
- Effective frequency range ±2 dB, at 20 cm (7.9 in): 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz
- Sensitivity, nominal, ±3 dB at 1 kHz: 16 mV/Pa; -36 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
- Distortion, THD < 1%: 130 dB SPL RMS, 133 dB SPL peak
- Dynamic range: Typ. 110 dB
- Max. SPL, THD 10%: 135 dB SPL peak
- Rated output impedance: From MicroDot: 30 - 40 Ω. From DAD4099-BC XLR Adapter: 100 Ω
- Cable drive capability: Up to 300 m (984 ft) with DAD4099-BC XLR Adapter
- Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD4099-BC XLR Adapter
- Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter. With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
- Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
- Connector: MicroDot
- Color: Black
- Weight: 10 g (0.35 oz)
- Microphone length: 10.4 cm (4 in)
- Temperature range: -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH): Up to 90%
Features
- Extremely rugged and reliable
- Enhances speech intelligibility
- Resistant to moisture, extreme temperatures and humidity
- Built-in shock mount for stability even in difficult situations
- Available with 10-plus mounting options for flexibility
- Modular adapter system fits most professional wireless systems
- The 4097 CORE Interview Kit includes:
- 1 4097 CORE Micro Shotgun Microphone (4097-DC-G-B00-010)
- 1 MicroDot Cable 2.2 mm (.09 in), 1.8 m (5.9 ft) (CM2218B00)
- 1 Plate for transmitter
- 1 Velcro strap 330 mm (13 in)
- 1 Cold Shoe Mount with standard 1/4 in thread (CS4099)
- 1 Rycote Windjammer (Rycote 055427, DPA 4099 Mini Windjammer)
- 1 Telescope Boom (Manfrotto MPCOMPACT-BK)
