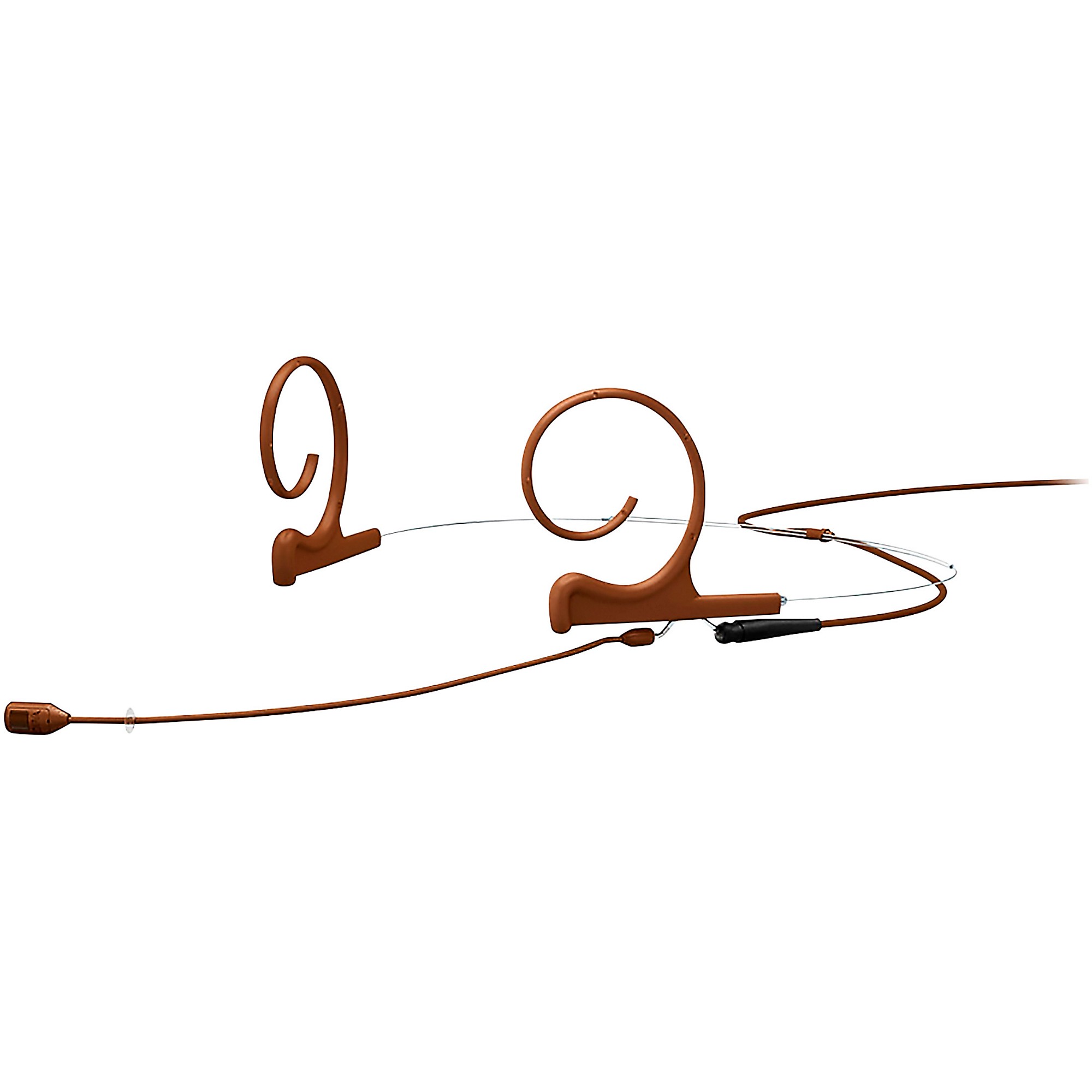

Headset with accurate and natural voice intelligibility and very high-SPL capabilities.
Combining the legendary sound of the 4088 Directional Capsule with DPA's lightweight and flexible headset system, the 4288 CORE Directional Flex Headset Mic is ideal for both spoken word and vocal performance applications. This headset mic offers accurate and natural voice intelligibility and very high-SPL capabilities—users can both speak and sing into the mic with no hint of distortion.
This mic provides excellent off-axis rejection in high-SPL situations. It efficiently suppresses distant sound sources, making it perfect for demanding live performance environments where background noise and feedback are concerns. In high-SPL events, or when feedback is a concern, the 4088 Directional Capsule will tackle these challenges with ease. The bass response is designed for optimal linearity at 2-3 cm (1 in) from the sound source. This means that the bass roll-off will be relatively prominent at a greater distance—a paramount factor when it comes to rejection of background noise and in the fight to avoid feedback. The microphone capsule is also optimized for low distortion as well as humidity resistance.
The Headset variant of the 4288 sits securely around the head and is ideal for active performance situations. It’s ergonomically designed to fit comfortably and easily. This mic adjusts to fit any ear size and head shape, and also mounts securely and is hardly visible. By rotating the boom and the earhook, the microphone can be easily used on either the left or the right ear. The connector splits the cable from the microphone boom allowing you to swap broken cables and/or wireless connectors quickly.
The 100 mm (3.9 in) boom on this directional mic is 3 cm (1 in) longer than on the omnidirectional version, which matches the need for placement at the corner of the mouth. To avoid "popping", the capsule should not be placed directly in front of the mouth.
IP58 certified
All CORE by DPA technology microphones are IP58 certified. This durability is achieved through a number of defense mechanisms:
Water-repellant nano-coating of the cover and housing
Hermetic sealing of the sensitive amplifier at the core of the mic
Dual gold plating of the diaphragm
This mic provides excellent off-axis rejection in high-SPL situations. It efficiently suppresses distant sound sources, making it perfect for demanding live performance environments where background noise and feedback are concerns. In high-SPL events, or when feedback is a concern, the 4088 Directional Capsule will tackle these challenges with ease. The bass response is designed for optimal linearity at 2-3 cm (1 in) from the sound source. This means that the bass roll-off will be relatively prominent at a greater distance—a paramount factor when it comes to rejection of background noise and in the fight to avoid feedback. The microphone capsule is also optimized for low distortion as well as humidity resistance.
The Headset variant of the 4288 sits securely around the head and is ideal for active performance situations. It’s ergonomically designed to fit comfortably and easily. This mic adjusts to fit any ear size and head shape, and also mounts securely and is hardly visible. By rotating the boom and the earhook, the microphone can be easily used on either the left or the right ear. The connector splits the cable from the microphone boom allowing you to swap broken cables and/or wireless connectors quickly.
The 100 mm (3.9 in) boom on this directional mic is 3 cm (1 in) longer than on the omnidirectional version, which matches the need for placement at the corner of the mouth. To avoid "popping", the capsule should not be placed directly in front of the mouth.
IP58 certified
All CORE by DPA technology microphones are IP58 certified. This durability is achieved through a number of defense mechanisms:
Water-repellant nano-coating of the cover and housing
Hermetic sealing of the sensitive amplifier at the core of the mic
Dual gold plating of the diaphragm
Specifications
- Directional pattern: Cardioid
- Principle of operation: Pressure gradient
- Cartridge type: Pre-polarized condenser
- Frequency response: 20 Hz - 20 kHz
- Effective frequency range, ±2 dB, Near field 2-3 cm (0.8 - 1.2 in): 100 Hz - 20 kHz (4 - 6 dB soft boost at 15 kHz)
- Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
- Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
- Distortion, THD < 1% - CORE: 134 dB SPL RMS, 137 dB SPL peak
- Dynamic range – Legacy: Typ. 97 dB
- Dynamic range – CORE: Typ. 111 dB
- Max. SPL, THD 10%: 144 dB SPL peak
- Rated output impedance: 30 - 40 Ω
- Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
- Output balance principle: Signal balanced with DAD6001-BC XLR Adapter
- Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
- Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter. With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
- Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
- Connector: TA4F Mini-XLR
- Color: Brown
- Weight: Single Ear: 10 g (0.35 oz)
- Microphone diameter: 5.4 mm (0.21 in)
- Microphone length: 12.7 mm (0.5 in)
- Cable length: 1.3 m (4.3 ft)
- Cable color: Brown
- Cable diameter: 1.6 mm (0.06 in)
- Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
- Temperature range: -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH): Up to 90%
Features
- Pristine audio quality
- Lightweight and flexible
- Easy mounting to the left or right
- Minimal visual impact
- Resistant to humidity
- Flexible adapter system fits most professional wireless systems
