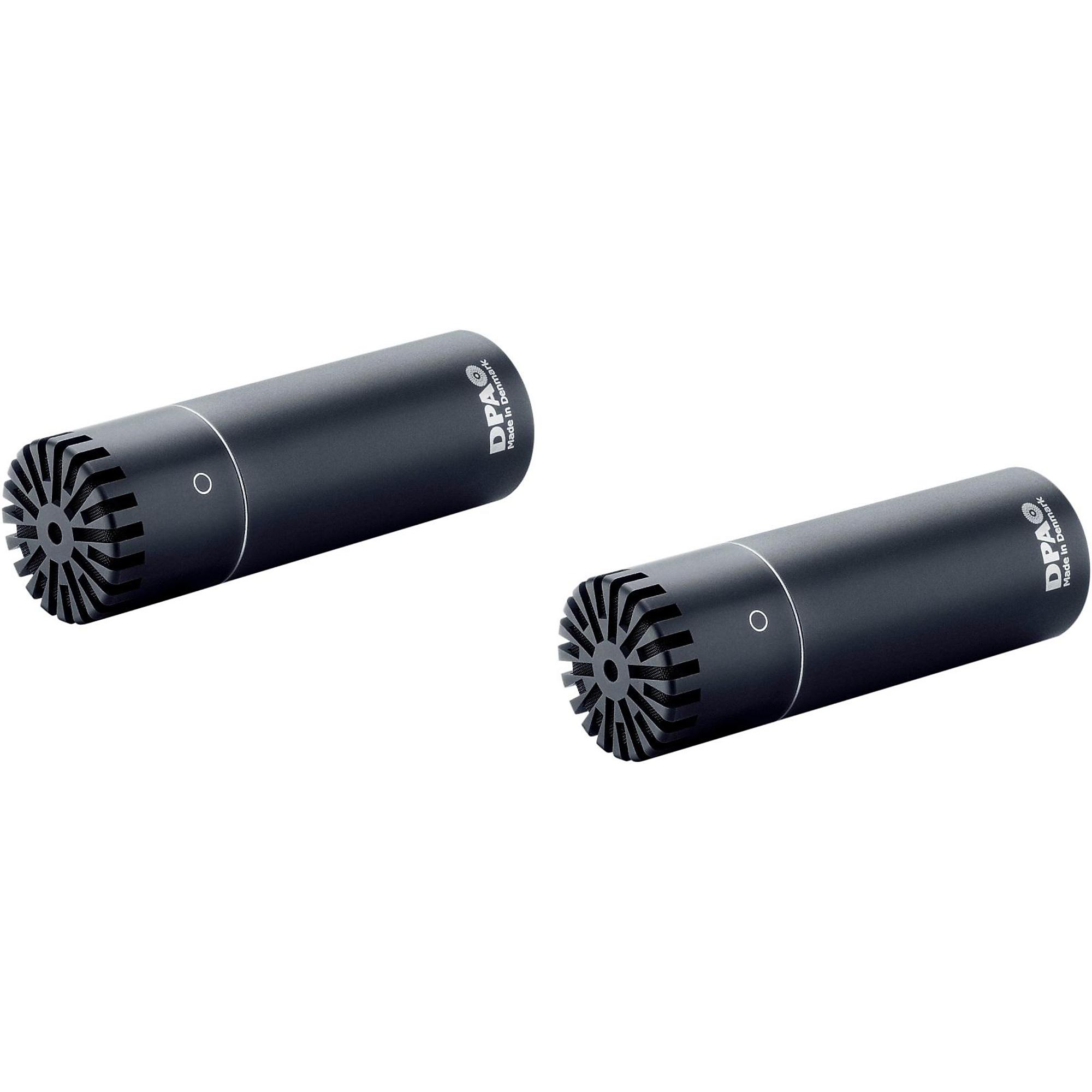

Discrete stereo pair of compact mics with omni pattern condenser capsules.
The DPA ST2006C is a complete DPA 2006C Stereo Pair with two handpicked omni microphones, selected on sensitivity within ±1.5 dB.
As a small, lightweight and inconspicuous main AB stereo pair the 2006s deliver precise acoustic fingerprint and true tone. Meeting classic architecture and installation requirements, the 2006C's can be mounted, hung or concealed to create clean, transparent recordings.
The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory inlays.
Included in this kit
Two carefully matched 2006C omni microphones, sturdy PeliTM case, holders, and windscreens.
As a small, lightweight and inconspicuous main AB stereo pair the 2006s deliver precise acoustic fingerprint and true tone. Meeting classic architecture and installation requirements, the 2006C's can be mounted, hung or concealed to create clean, transparent recordings.
The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory inlays.
Included in this kit
Two carefully matched 2006C omni microphones, sturdy PeliTM case, holders, and windscreens.
Specifications
- Directional pattern: Omnidirectional
- Principle of operation: Pressure
- Cartridge type: Pre-polarized condenser, Twin Diaphragm Capsule
- Frequency range: 20 Hz - 20 kHz
- Frequency range, ± 2 dB: 50 Hz - 20 kHz with typ. 3 dB soft boost at 14 kHz
- Sensitivity, nominal, ± 2 dB at 1 kHz: 40 mV/Pa; -28 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 16 dB(A) re. 20 Pa (max. 18 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 28 dB (max. 30 dB)
- S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 78 dB(A)
- Total Harmonic Distortion (THD) at 1 kHz: < 1 % up to 130 dB SPL peak
- Dynamic range: Typ. 114 dB
- Max. SPL, peak before clipping: 134 dB
- Output impedance: < 200 ohm
- Minimum load impedance: 2 kohm
- Cable drive capability: 100 m (328 ft)
- Output balance principle: Impedance balancing with Active Drive
- Common Mode Rejection Ratio (CMRR): > 50 dB
- Power supply (for full specifications): 48 V Phantom power (± 4 V)
- Current consumption: 2.8 mA
- Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
- Color: Matte black
- Weight: 60 g (2.1 oz)
- Microphone diameter: 19 mm (0.75 in)
- Microphone length: 58 mm (2.3 in)
- Output voltage, RMS: > 4 V
- Polarity: +V at pin 2 for positive sound pressure
- Temperature range: -40 C to 45 C (-40 F to 113 F)
- Relative Humidity (RH): Up to 90%
- Sensitivity selection tolerance (at 1 kHz): ± 1.5 dB
Features
- Sensitivity selected pair
- Compact size and authentic sound
- Full-bodied sound from a small-bodied mic
- Peli Case transportation and protection
