A faithful reissue of the King of the Underworld.

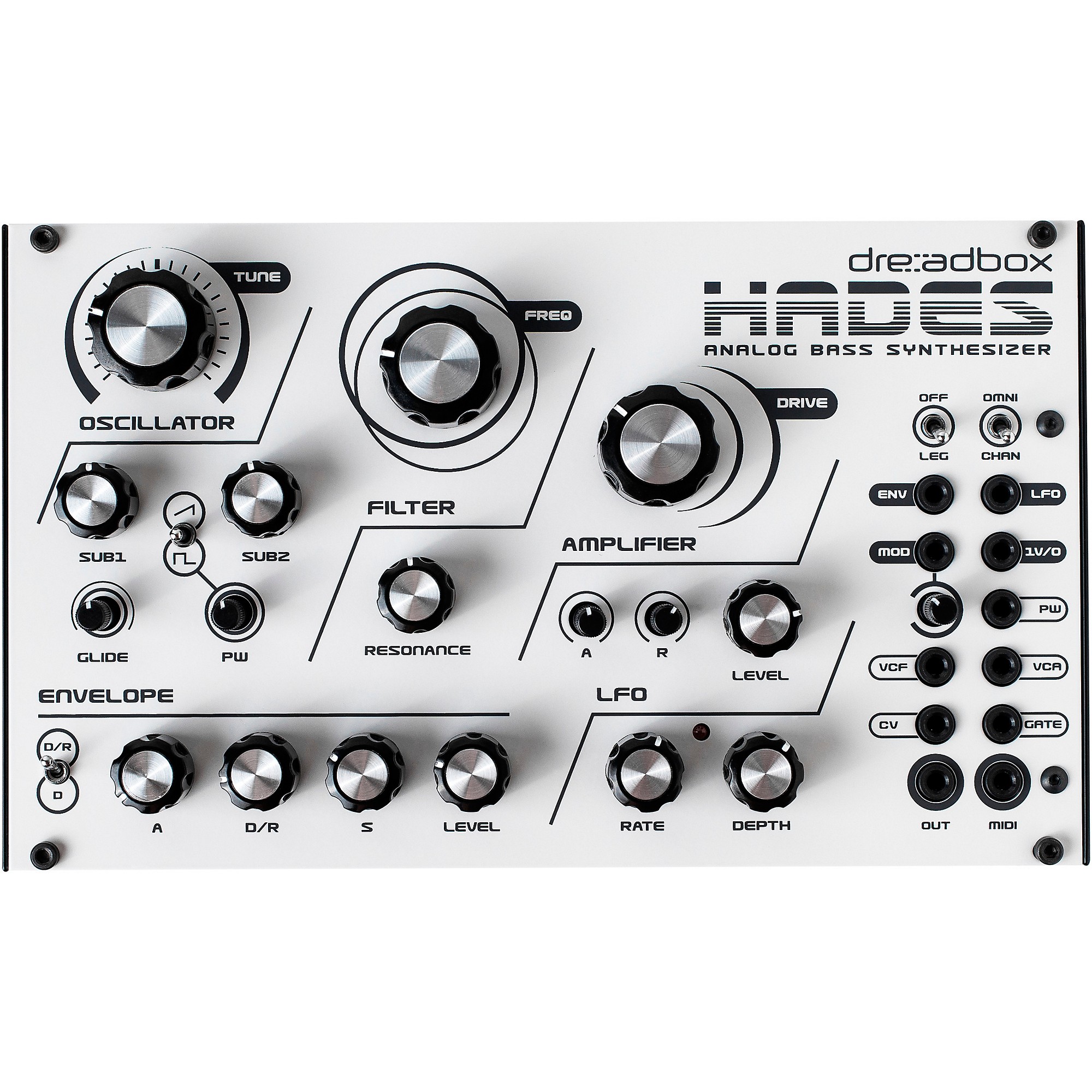

This Hades monophonic analog synthesizer reissue from Dreadbox is a faithful reproduction of the original legend. It can be played as a standalone unit, or incorporated as a 42HP-sized Eurorack module—and includes 11 patch points for interactivity with other gear. It features a VCO with two sub octaves, two waveforms with PW control, a 3-pole resonating low-pass filter, AD/RS envelope generator and wide-range triangle wave LFO, among others. Its powerful bass boost circuit make the Hades a formidable bass machine. With USB power, it offers convenient portability and energy efficiency.
Specifications
- MIDI interface: MIDI In 3.5 mm type A socket, responds to Pitch, Note On/Off, Mod wheel, Pitch wheel, and to all channels + OMNI channel (via MIDI Learn)
- Mono audio out: Can be also used with headphones, max output is 5vpp, depending on the
- setting
- All patch points are 3.5mm mono action (except of the MIDI and AUDIO out)
- GATE in: 0–5V
- GATE out: 0–5V
- CV IN: +/-10V, works with 1V/ocv
- CUT CV in: +/-5V
- MOD wheel out: 0–5V
- ENV out: 0–5V
- LFO out: +/-5V
- PW in: +/-5V
- VCA CV in: 0–5V
- Suggested room temperature for VCO stability: 12–35 Celsius
Features
- Full-analog synth, faithful reproduction of the Hades (produced through 2014–2016, was
- limited only to 1,000 units at the time)
- Can be used as a standalone unit or as a Eurorack module, 42HP sized
- Powered by a simple USB adapter for maximum portability and energy efficiency
- 1 x VCO with 2 sub octaves
- 2 x waveforms with PW control
- 3-pole resonating low-pass filter
- OTA distortion
- OTA VCA
- 1 AD/RS envelope generator and 1 AR, drastically improved from the original version
- Triangle wave LFO with a very wide frequency range
- Special internal Bass boost circuit will make this the ultimate bass engine
- 11 patch points
- CV outs: Envelope, LFO, Modulation wheel, 1V/ocv
- CV ins: PW, filter CUT off, VCA, CV, GATE
