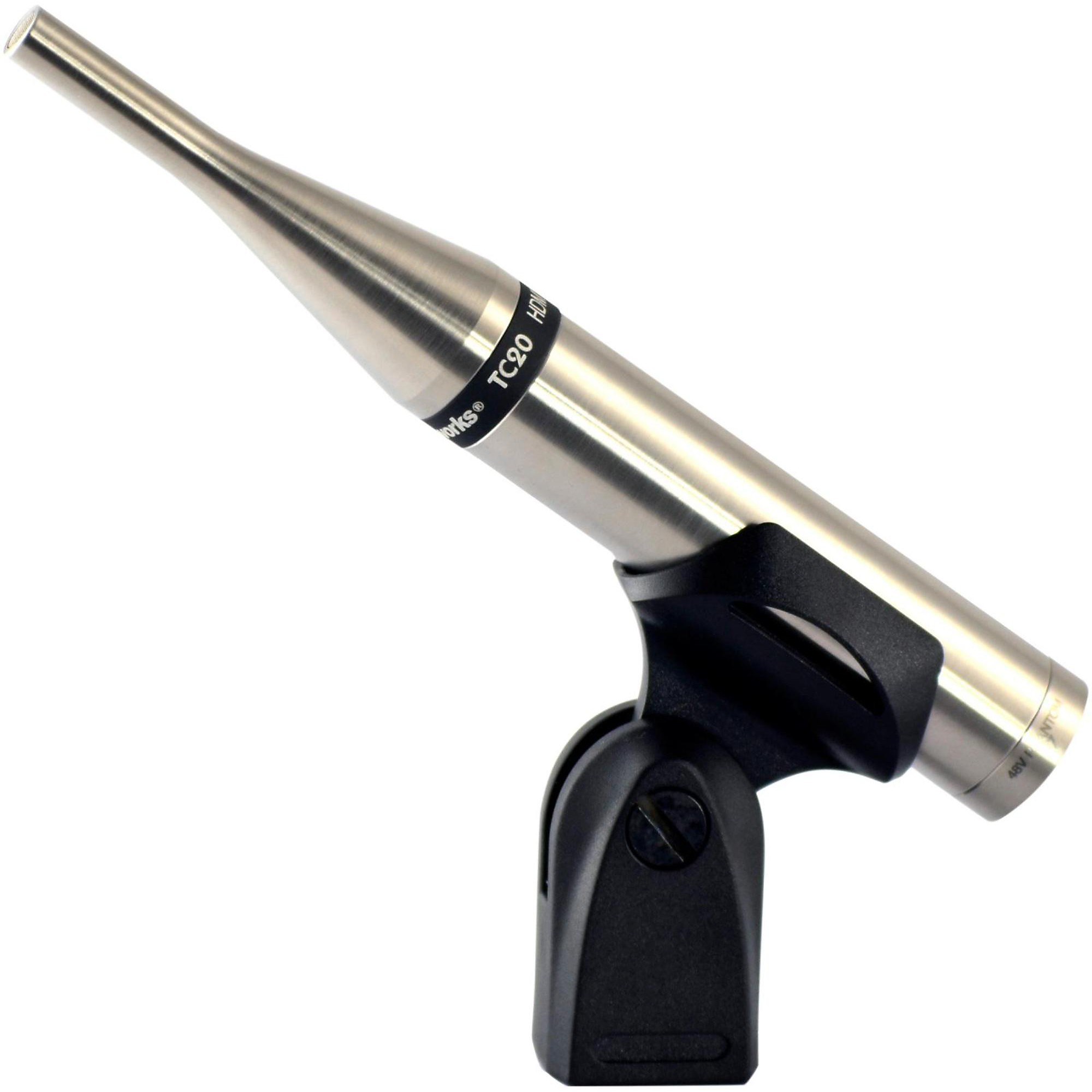

20kHz omnidirectional microphone for loud sources.
The TC Series (Time Coherent), which includes this TC20 small-diaphragm condenser with omnidirectional polar patter microphone, is designed for recording louder sources such as drums, percussion, amplified instruments and loud sound effects. Microphones in this series allow recording of louder acoustic sources without overloading the preamplifier. Models in the TC Series are often the choice for recording drum overheads, close miked or amplified instruments and sound effects.
Specifications
- Frequency Response: 10Hz to 20kHz ±1/-3dB
- Polar Pattern: Omnidirectional
- Sensitivity: 8mV/Pa (-42dBV/Pa)
- Power Requirements: 48V Phantom, 10mA
- Max Acoustic Input: 150dB SPL
- Output: XLR (pin 2+)
- Output Impedance: 100 ohm, balanced (50 ohm ea. pin 2 & 3)
- Min Output Load: 600 ohm between pins 2 & 3
- Noise: 27dB SPL equivalent (A weighted)
- Dimensions L x D: 165 mm x 22 mm (6.5" x .860")
- Weight: .35 lb. (160 g)
Features
- Our least expensive general-purpose omni with high frequency response to 20kHz
- Ideal for a wide variety of instruments and vocals
- For live sound, use for close miking instrument amps, drums or brass
- Omnidirectional polar pattern
- Accurate and uncolored
- Effortlessly handle high sound pressure levels up to 150dB SPL
- Fast impulse response and diaphragm settling time
- Exceptional flat frequency response, sounds natural and uncolored
- Requires 48V Phantom Power
