Safe and stable voltage for optimum performance at an affordable price.

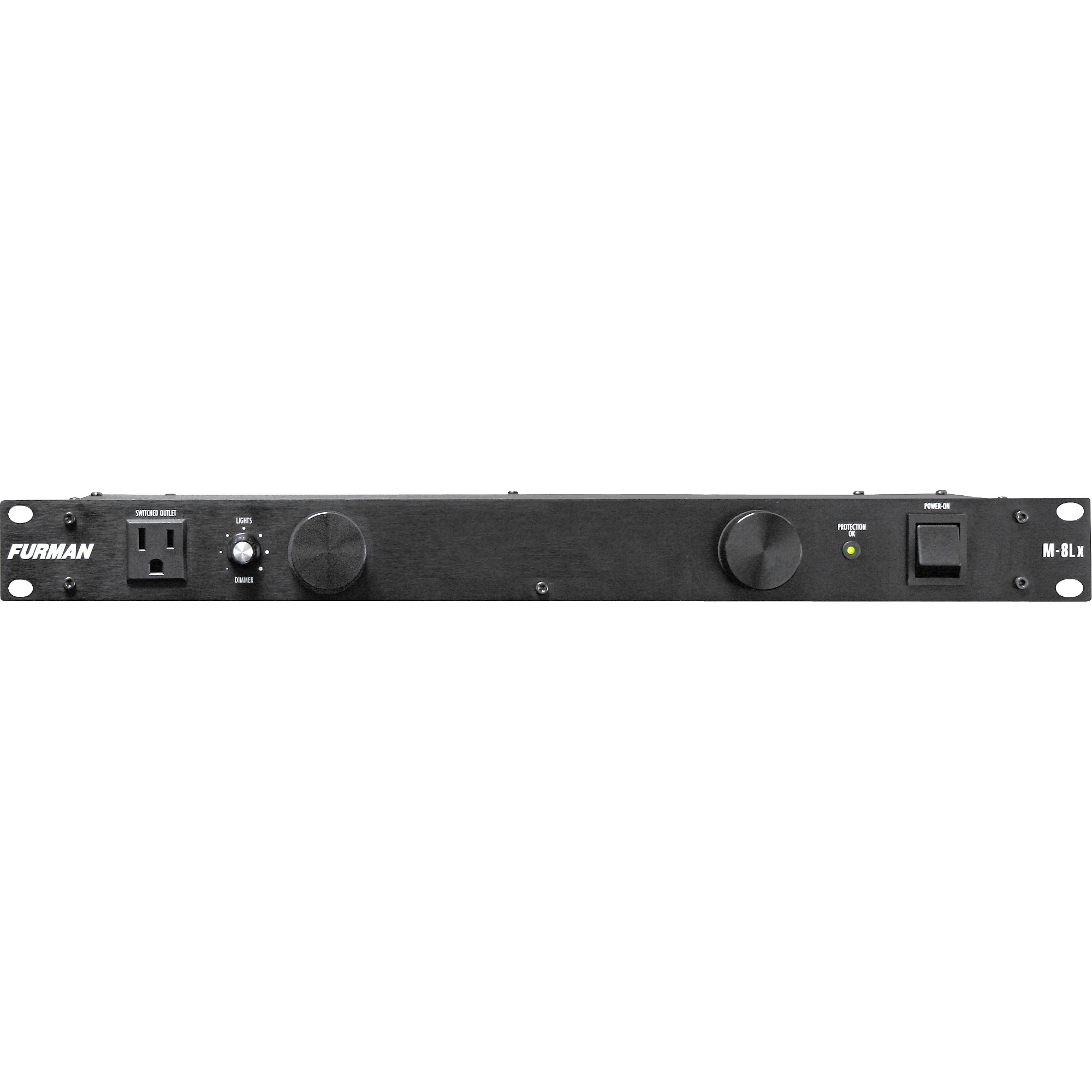

The Furman Merit M-8LX Power Conditioner is the perfect low-cost AC power solution for any rackmount audio system. The Merit M-8LX has eight switched AC outlets in the rear panel to power and protect all your equipment with up to a 15-amp load.
The Furman Merit M-8LX protects your delicate electronic equipment by combining high voltage varistor (MOV) surge and transient suppressors. The fast-acting suppression circuit quickly responds and clamps transient voltages to safe levels. An RFI/EMI interference filter works to prevent noise from fluorescent lights, certain dimmers, radio transmitters, and similar sources of electronic pollution from contaminating the AC line and from there, leaking into sensitive audio, video, or computer circuits. NRTL/TUV listed.
The Furman Merit M-8LX Power Conditioner features 2 slide out, swiveling light fixtures to provide discreet illumination of your equipment on stages, in studios, and in other dark places. A dimmer knob lets you adjust the lamp brightness to just the right level.
The Furman Merit M-8LX protects your delicate electronic equipment by combining high voltage varistor (MOV) surge and transient suppressors. The fast-acting suppression circuit quickly responds and clamps transient voltages to safe levels. An RFI/EMI interference filter works to prevent noise from fluorescent lights, certain dimmers, radio transmitters, and similar sources of electronic pollution from contaminating the AC line and from there, leaking into sensitive audio, video, or computer circuits. NRTL/TUV listed.
The Furman Merit M-8LX Power Conditioner features 2 slide out, swiveling light fixtures to provide discreet illumination of your equipment on stages, in studios, and in other dark places. A dimmer knob lets you adjust the lamp brightness to just the right level.
Specifications
- Maximum Output Current: 15 amps
- Line Cord: 6 ft., captive, 14 AWG, with 3-conductor Edison plug
- Lamps: Two 120V incandescent bulbs, 4W each
- Operating Voltage: 120VAC 60Hz
- Spike Protection Mode: Line to neutral
- Energy Dissipation: 170 joules
- Peak Impulse Current: 12,000 amps
- Maximum Continuous Opterating Voltage: 130 VAC RMS
- Let Through Voltage (@ 125 amps, 8/20uS waveform) 400V
- Noise Attenuation: Transverse mode: Greater than 26dB, 200Khz to 10 Mhz
- Dimensions: 1.75" H x 19" W x 7.5" D
- Weight: 5.5 lb.
- Warranty: Merit Series units are protected by a limited three year warranty covering defects in materials and workmanship.
Features
- Filtration of noise from radio frequencies and electromagnetic interference
- Standard level of surge suppression
- Dual pullout rack lights with dimmer control
- 8 rear-panel outlets
- Sturdy one rack space design
- 15-amp capacity with circuit breaker
