Item #1586262 Model #HL90100

Headliner R2 2-Channel Rotary DJ Mixer With Analog Filter Standard

$399.99

Availability
Delivery
In Stock
Pickup In-Store
Save to Wishlist

2-channel rotary DJ mixer with high-pass/low-pass filters, and 3-Band Isolator EQ on each channel.

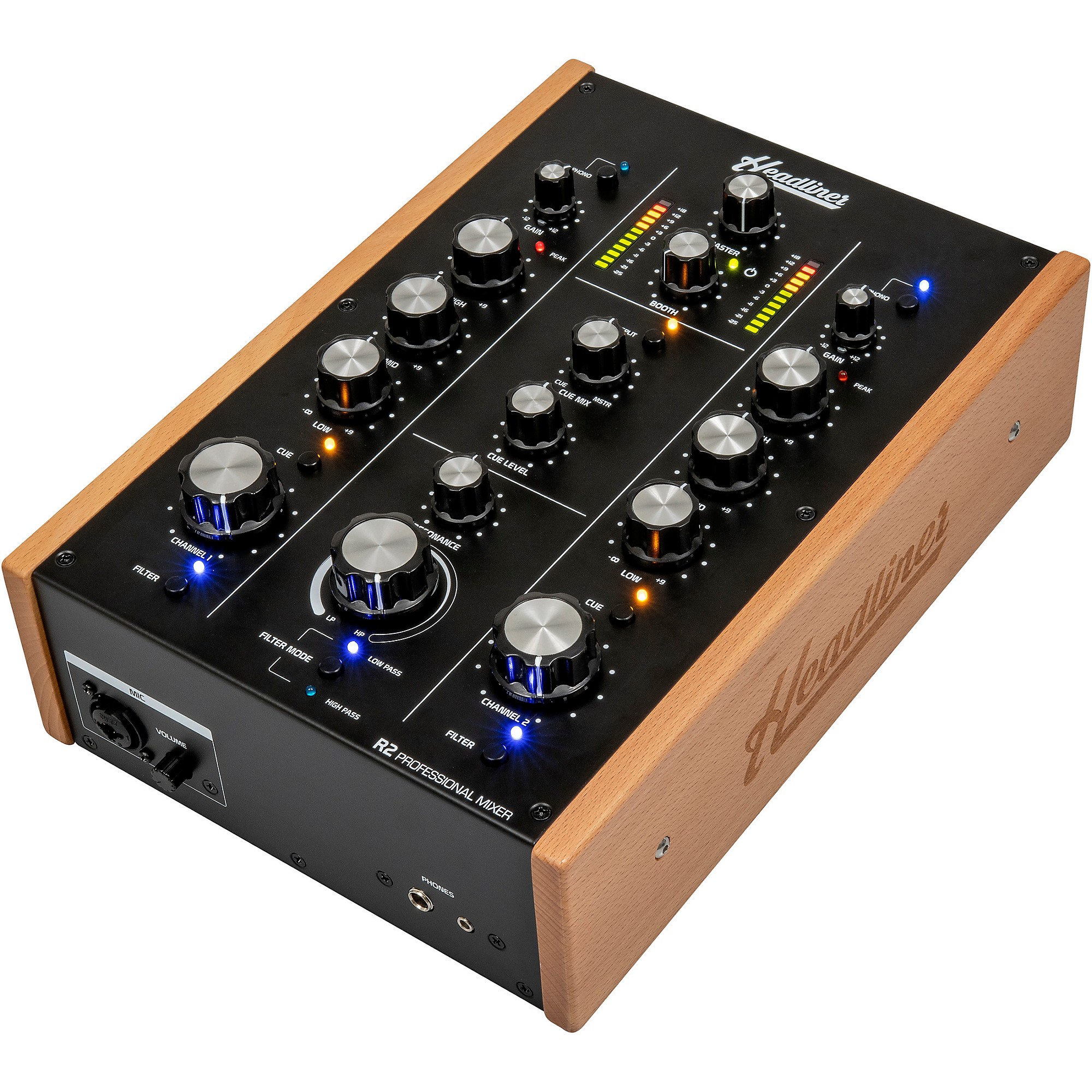

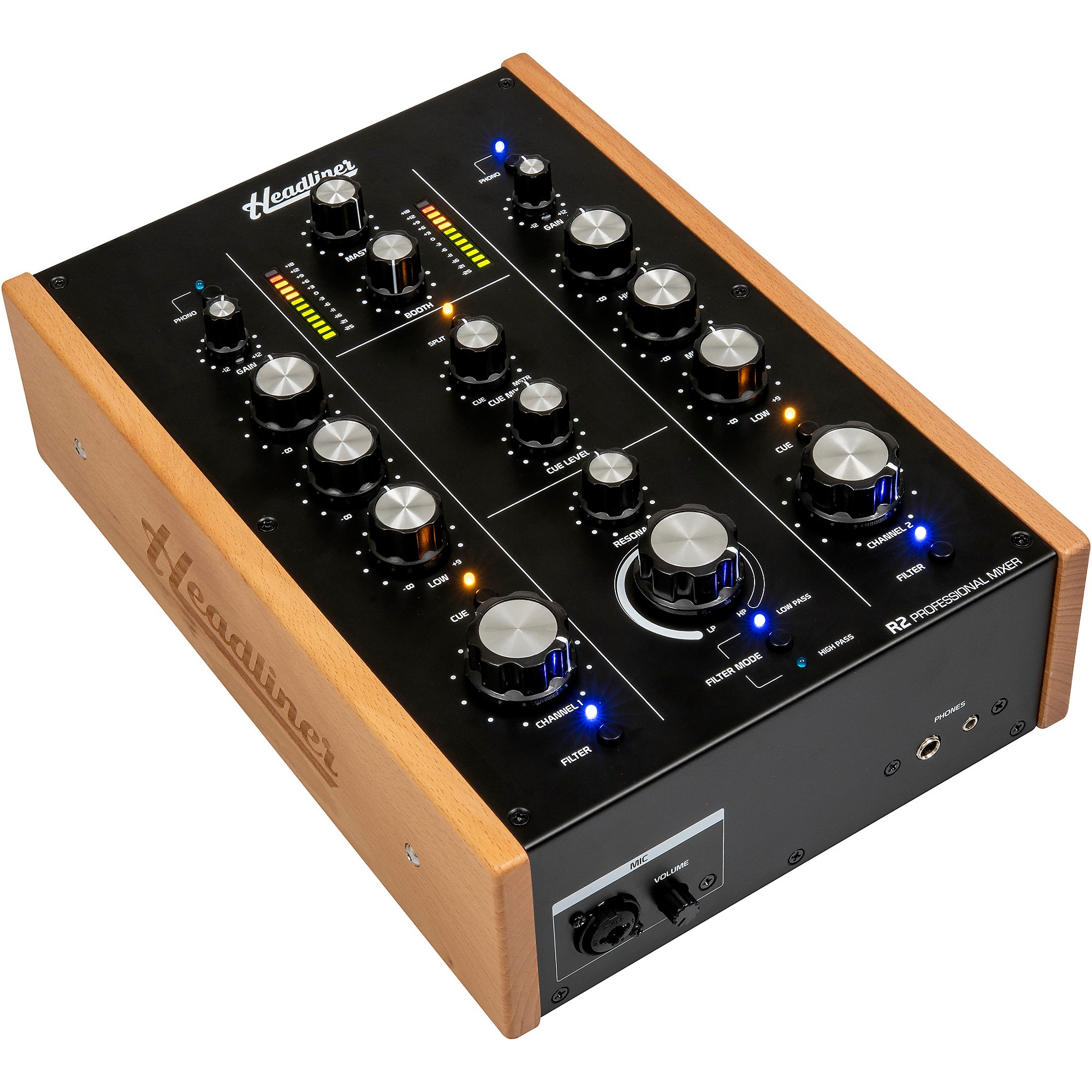

The Headliner R2 is a 2-channel rotary DJ mixer that’s perfect for DJs looking for precise control and a warm sound. The R2 is packed with features like an analog filter and 3-band isolator EQs on each channel, and uses only high-quality components, including genuine ALPS potentiometers.

Featuring two stereo channels with selectable Line and Phono RCA inputs, each channel on the Headliner R2 comes equipped with gain control with a peak LED, a 3-band isolator EQ, a headphone cue selector, a large channel volume control knob, and a filter activation switch.

The Master channel boasts an analog filter, headphone monitoring, and output control section. The analog filter features selectable High Pass / Low Pass Filter modes with Frequency and Resonance controls, giving you precise control over your sound.

The headphone Cue control section is packed with features, including headphones volume control, headphones mix control (Cue/Master), and split monitor switch. You can easily switch between listening to the master output and the cue output, or blend them together in your headphones, giving you complete control over your mix. The high current headphone amplifier, with dual 1/4” and 1/8” jacks, allows you to use any type of headphones you prefer.

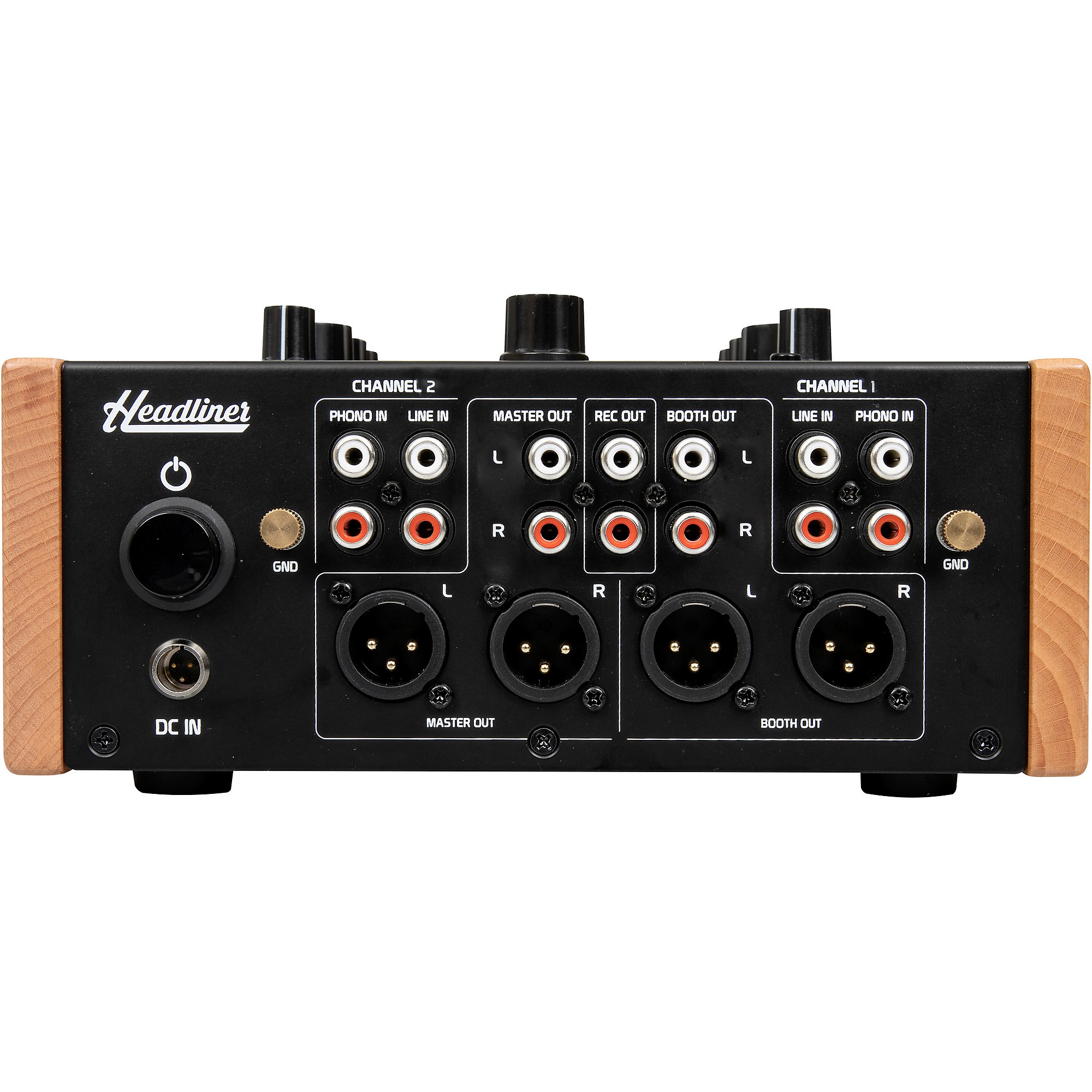

You also have independent Master and Booth outputs with volume controls, both with balanced XLR and unbalanced RCA connectors, giving you the flexibility to connect to any sound system.

The Headliner R2 also features an additional Record output with unbalanced RCA jacks and dual LED level meters for the Master output, ensuring that you can accurately monitor and adjust your levels. The microphone input with level control on the front panel makes it easy to incorporate vocals into your set.

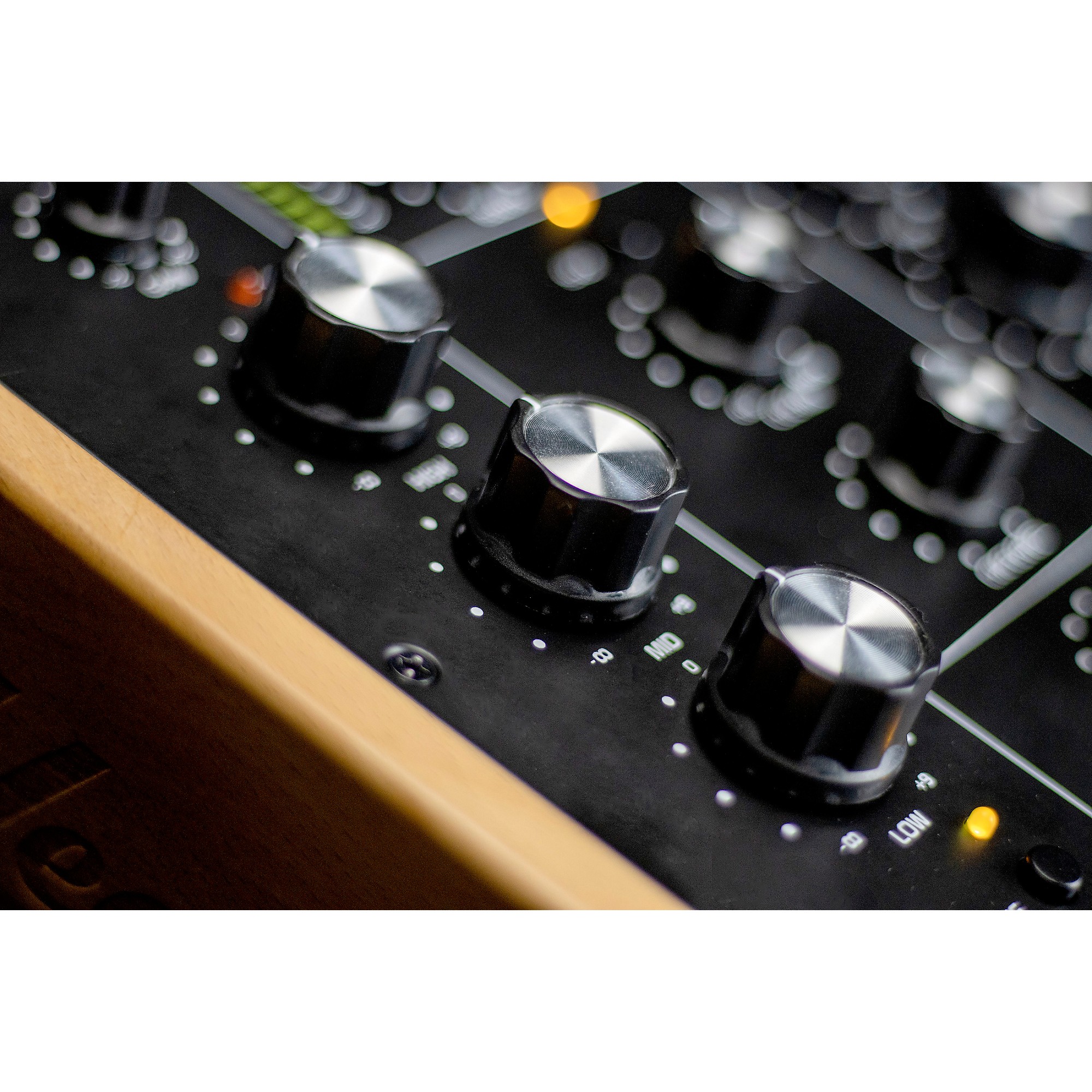

The Headliner R2 features genuine ALPS potentiometers, and a sturdy metal enclosure with stained wood side panels for a classic look that will complement any DJ setup. The modular internal construction, coupled with the external power supply connected via locking Mini XLR ensure superior audio performance.

The Headliner R2 is a reliable, high-quality mixer that will give your DJ performances that classic vibe. Whether you're spinning house, techno, or classic funk/soul/disco jams, this fun little mixer is the perfect addition to your setup.
Specifications
  • Microphone Input
  • Nominal Input Level: -50dBu
  • Frequency Response: 20Hz - 20kHz (+/- 0.1dB)
  • THD + N: < 0.1%
  • EIN: -120dBu (150Ω Load)
  • Input Impedance: 3 kOhm
  • Line Inputs
  • Nominal Input Level: -10dBV (-7.8dBu)
  • Gain Range: -12dB to +12dB
  • Frequency Response: 20Hz - 20kHz (+/- 0.1dB)
  • THD + N: < 0.05%
  • Input Impedance: 47 kOhm
  • Phono Inputs
  • Maximum Input Level: -40dBu
  • Gain Range: -12dB to +12dB
  • Frequency Response: RIAA
  • THD + N: < 0.05%
  • Input Impedance: 47 kOhm
  • Main Outputs
  • Nominal Output Levels, balanced: +4dBu
  • Maximum Output Level, balanced: +20dBu
  • Nominal Output Levels, unbalanced: -10dBV (-7.8dBu)
  • Maximum Output Level, unbalanced: +12dBu
  • Frequency Response: 20Hz-20kHz (+/-0.5dB)
  • Residual noise: <-80dBu
  • Dynamic Range: > 100dB
  • Crosstalk: < -65dB
  • THD + N: < 0.05%
  • Headphone Output
  • Maximum Output Level: 70mA/channel into 150Ω
  • Minimum Load Impedance: 32 Ohms/channel
  • Power Supply
  • Type: External with locking mini-XLR connector
  • Input Voltage: 100-240v ~ 50/60Hz
  • Output Voltage: +/-15V; 500mA
  • Voltage Range: 32 Ohms/channel
  • Measurements: 12.6" x 8.6" x 4.2" (320 x 219 x 106 mm)
  • Weight: 6.15lbs (2.8Kg)

Features

  • 2-channel rotary DJ mixer with high-pass and low-pass filters
  • 3-Band Isolator EQ on each channel
  • Genuine ALPS potentiometers
  • Independent Master and Booth outputs with volume controls, balanced XLR outputs and unbalanced RCA outputs
  • Modular internal construction for superior audio performance
  • Sturdy metal enclosure with stained wood side panels for a classic look
