Item #1538605 Model #MA-301fetVG

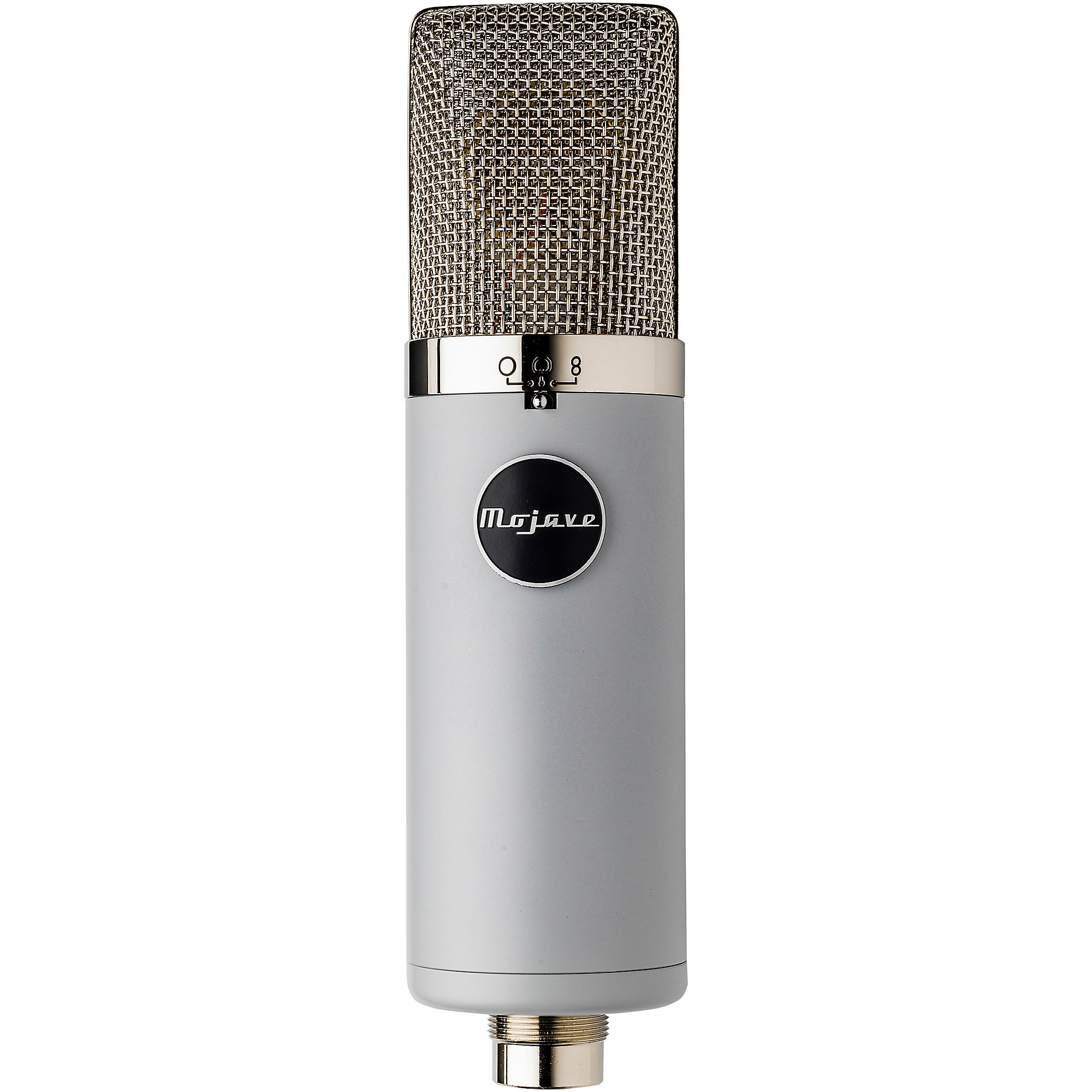

Mojave Audio MA-301fetVG Large-Diaphragm Multipattern Condenser Microphone - Vintage Gray Standard

$1,099.00

Availability
Delivery
In Stock
Pickup In-Store
Choose Store
Save to Wishlist

High-quality design and performance from David Royer.

The MA-301fetVG is a multi-pattern large-diaphragm, solid state condenser microphone. Based upon the popular MA-201fet designed by David Royer, the MA-301fetVG adds a 3-position pickup pattern selector, a15dB pad and a switchable bass roll-off.

Utilizing a 3-micron gold-sputtered capsule, high-quality Jensen audio transformer, military-grade FET and custom designed low-noise resistors, the MA-301fetVG performs at a level reminiscent of some of the best-loved classic condenser microphones. Each MA-301fetVG microphone is carefully tested and evaluated, then packaged in its protective case with a professional-grade shockmount.
Specifications
  • Transducer Type: Externally polarized, pressure gradient capacitor - double diaphragm
  • Diaphragm: 1" diameter, gold sputtered
  • Diaphragm Thickness: 3 microns
  • Polar Pattern: 3 patterns; omni, cardiod and figure-8
  • Frequency Response: 20 Hz to 20 KHZ, +/-3 dB at "flat" setting of bass cut switch. Bass cut switch provides 6dB per octave attenuation below
  • 100Hz in "cut" setting
  • Sensitivity: -40.5dB, re. 1V/pa
  • Maximum SPL: 120dB with pad off, 135dB with pad on
  • Distortion: < 1% @ 120dB SPL , < 3% @ 134dB SPL with pad off
  • < 1% @ 134dB SPL, < 3% @ 148dB SPL with pad on
  • Self Noise: 14dB nominal, not to exceed 16dB (A weighted)
  • Pad: 15dB
  • Bass Cut: 6dB per octave below 100 hertz
  • Impedance: 550 ohms, transformer balanced (Jensen)
  • Powering: 48VDC phantom power; current 1.2 mA
    • Dimensions and Weight
    • Carrying case with microphone, shock mount: 10" x 9" x 4.5", 4 lb.
    • Microphone: 7-5/8" X 2" (194 mm x 51 mm), 1 lb. (0.45 kg)

    Features

  • Multi-pattern: Cardioid, Omnidiectional, Figure-eight (Bi-directional)
  • Switchable 15dB pad
  • Switchable Bass Roll-off
  • Hand-selected 3-micron 1" capsule
  • Jensen audio transformer
  • Military-grade FET
  • Custom designed low-noise resistors
  • Ultra clean signal path
  • Vintage gray finish
    • Recommended Applications
    • Vocals
    • Voice Over and Broadcast
    • High SPL sources, such as Kick Drums and Bass Guitar Amps
    • Electric Guitar
    • Piano
    • Drum Overheads, Drum Rooms
