Item #1559771 Model #509142

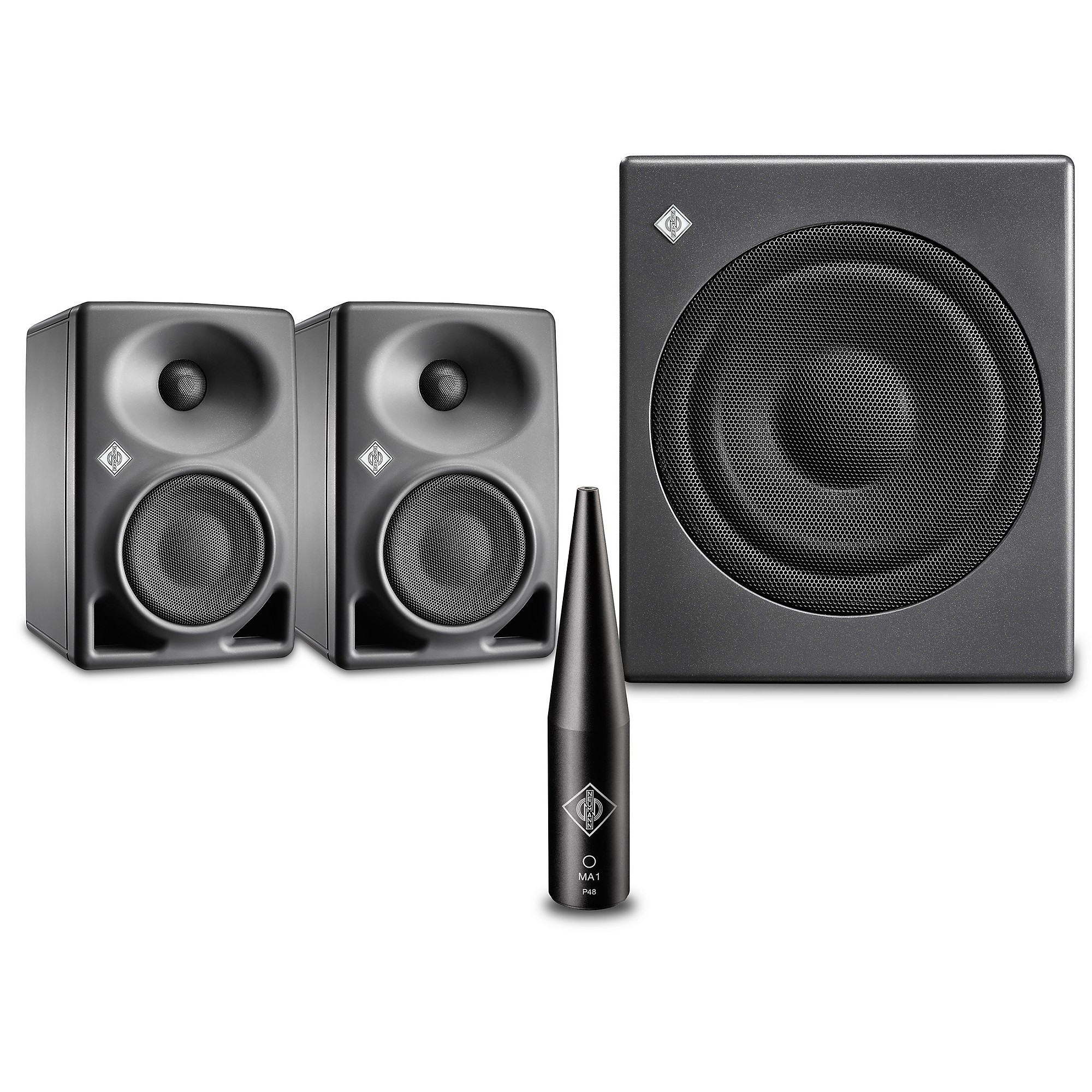

Neumann MA 1 Monitor Alignment Mic/Calibration System With KH 80 Pair/KH 750 Standard

$2,795.00

Availability
Delivery
Out of stock
Pickup In-Store

This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Email me when in stock

Save to Wishlist

Complete and calibrate your monitoring system with Neumann.

Neumann's Automatic Monitor Alignment MA 1 ensures the best possible sound quality in any room—from home studios to professional control rooms. The specially calibrated measurement microphone analyzes your acoustic environment in a guided process.

When paired with the KH 750 DSP subwoofer, stereo sets of analog KH series monitors can be analyzed by the Automatic Monitor Alignment Software. The KH 750 DSP has enough processing power to align the entire system, including the two analog loudspeakers connected to its outputs. The result is increased clarity, acute bass response and a time-correct, more accurate depiction of reverbs and acoustic spaces.

Neumann MA 1 Monitor Alignment Microphone and Calibration System
The MA 1 Automatic Monitor Alignment is the beginning of a new era in monitoring. Advanced calibration algorithms, jointly developed with the world's leading institute in audio processing, Fraunhofer IIS, ensure optimally adapted amplitude and phase correction for precise and reliable monitoring.

No special audio driver or plug-ins are required—alignment data is stored and processed within the DSP-powered monitors themselves. As a unique benefit, the software not only optimizes the amplitude response, but also optimizes the phase. This provides pinpoint accuracy in terms of tonality and impulse reproduction.

Neumann KH 750 Studio Subwoofer
The compact KH 750 DSP 10” is the ideal choice for smaller rooms and smaller studio monitors, such as the KH 80 DSP. The uniquely adaptable 2.0/0.1 Bass Manager allows the subwoofer to be used in many different system configurations. On the back panel there are analog and digital inputs and outputs, four routing modes and adaptable acoustical controls to allow for seamless system integration. The Neumann.Control software offers a myriad of functions for KH 750 users, giving you accurate low end for tracking, mixing, mastering, broadcasting and postproduction.

The newly designed 10” long-throw driver has a large magnet, linear motor design and a very stiff pressed steel basket. As subwoofers are usually placed on the floor, a robust grille protects the driver from accidental damage. A sealed-design, well-braced cabinet gives you the fastest possible transient response. It includes two balanced XLR ins and outs, while the 192kHz/24-bit digital input can accept AES3 and S/P-DIF signals. The bypassable standby function and switch-off time can be adjusted in Neumann.Control.

Neumann KH 80 Powered Studio Monitors
The Neumann KH 80 Active DSP Powered Studio Monitor is a 2-way active bi-amplified studio monitor featuring a DSP engine with network control, Mathematically Modeled Dispersion Waveguide (MMD), an analog input and an extensive range of mounting hardware. This allows the loudspeaker to be used in a variety of acoustical conditions.

The KH 80 Active DSP Powered Studio Monitor is a professional reference monitor representing cutting-edge acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible. The KH 80 Active DSP is designed for use as a near-field monitor, as a front loudspeaker in small multi-channel systems or as a rear loudspeaker in a compact multi-channel system. It can be used in project and music studios, broadcast centers, OB vans and postproduction studios for tracking, mixing and mastering. It is also well suited for use in home studio environments.
Specifications
MA 1 Audio
  • Analog or digital: Analog
  • Frequency response: 20Hz–20kHz
  • Max SPL: 132 dB
  • Connectivity: XLR
MA 1 Pattern and Type
  • Capsule: Condenser
  • Polar pattern: Omnidirectional
  • Type: Mounted
  • Applications: Studio
  • Diaphragm size: Small
  • Switches: No
  • Phantom power required: Yes
MA 1 Software Requirements
  • Operating system: Windows 10 64-bit and macOS 10.13 or later
KH 80 General
  • Size: Subwoofer
  • System type: Active
  • Configuration: 2-way
KH 80 Drivers
  • Low-frequency driver: 4”
  • Mid-frequency driver: Not applicable
  • High-frequency driver: 1”
  • Full-range driver: Not applicable
  • Driver type: Cone
KH 80 Sound
  • Frequency response: 52Hz–21kHz
  • Max peak SPL: 111.11dB SPL
  • Amplifier class: Info not available
  • Output power: 100W
KH 80 Onboard Features
  • Input connectors: XLR, 1/4”
  • Standby mode: Yes
  • Acoustic space control: Yes
  • Power indicator: Yes
KH 80 Other
  • Enclosure type: Sealed
KH 750 General
  • Size: Subwoofer System type: Active
  • Configuration: 1-way
KH 750 Drivers
  • Low-frequency driver: 10”
  • Mid-frequency driver: Not applicable
  • High-frequency driver: Not applicable
  • Full-range driver: Not applicable
  • Driver type: Cone
KH 750 Sound
  • Frequency response: 16Hz–800Hz
  • Max peak SPL: 105dB SPL
  • Amplifier class: Info not available
  • Output power: 256W
KH 750 Onboard Features
  • Input connectors: XLR, 1/4”
  • Standby mode: Info not available
  • Acoustic space control: Yes
  • Power indicator: Yes
KH 750 Other
  • Width: 13”
  • Height: 15.125”
  • Depth: 15.125”
  • Weight: 43 lb
  • Enclosure type: Sealed
