Legendary Neumann sound without the wires.

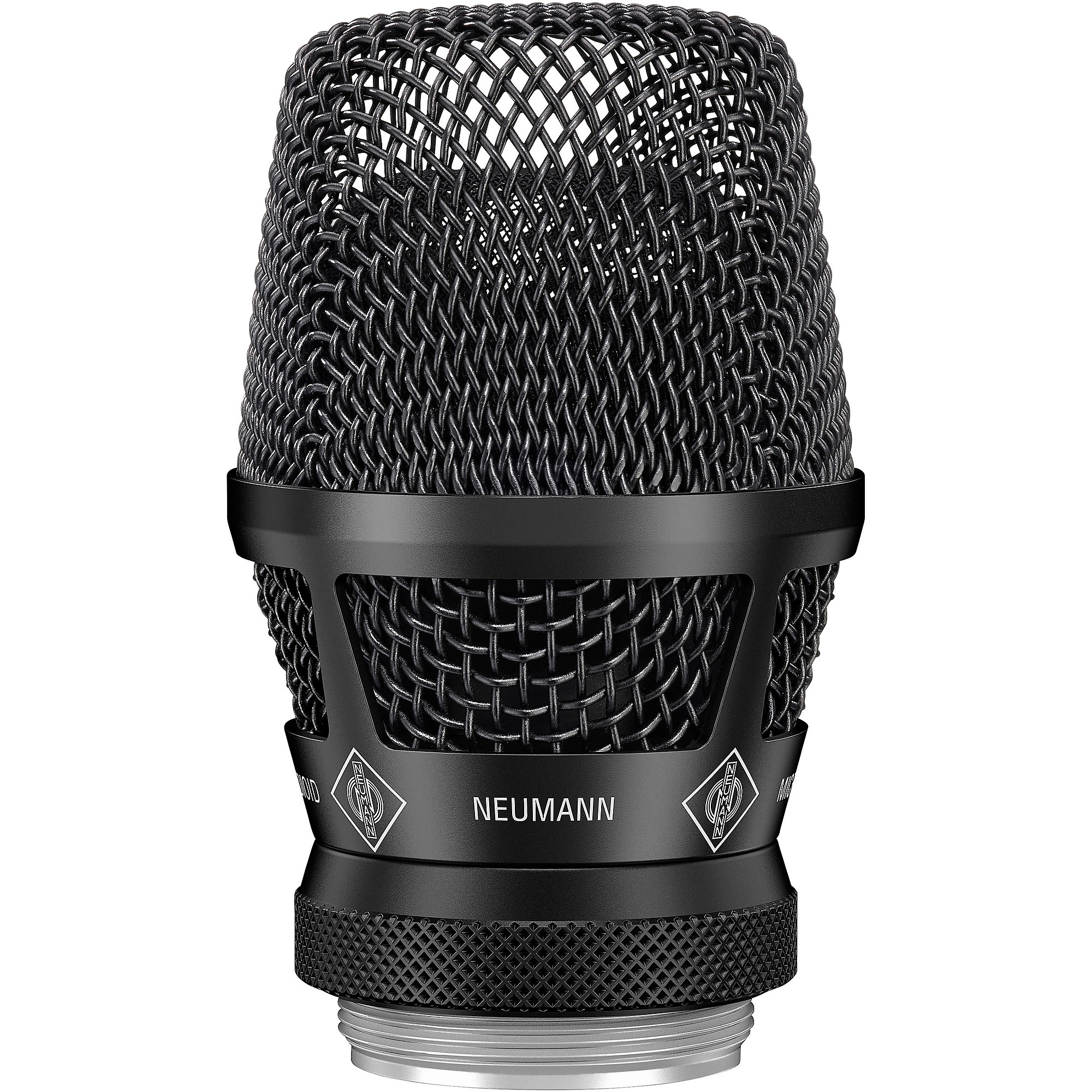

The KK 105 U capsule head brings Neumann's renowned studio-quality sound to your wireless vocal rig. Designed for miking vocals, speeches and presentations on stage, the KK 105 U features Neumann's meticulously engineered condenser capsule for exceptional clarity and transient response. The KK 105 U condenser capsule head is compatible with major wireless systems, giving you legendary Neumann tone without the constraints of cables.
Achieve Remarkable Clarity and Transient Response
While most stage mics use dynamic capsules, the KK 105 U's condenser capsule brings out nuances and subtleties that dynamics simply cannot match. You get superior accuracy across the entire frequency spectrum, with an open, airy top end and tight bass. This condenser capsule also provides outstanding transient response, capturing the immediacy and emotion of your vocal performance.
Supercardioid Pattern Rejects Feedback and Isolates Sound
With its tight supercardioid pickup pattern, the KK 105 U condenser capsule head excels at rejecting feedback and isolating your vocals from surrounding stage noise. The supercardioid polar pattern attains excellent off-axis rejection compared to standard cardioid mics, keeping monitoring wedges and other instruments from bleeding into your signal. The directional nature of the KK 105 U also minimizes phase issues and comb filtering when using multiple open mics on stage.
Rugged Design Built for the Stage
The KK 105 U has a hardened steel head grille that protects the capsule while providing an integral pop filter to control plosives on close-miked vocals. An internal pop screen also protects against moisture while preventing sibilance. With a high max SPL of 150dB, the KK 105 U handles extremely loud volumes without distortion. A low-cut filter compensates for proximity effect, ensuring clear low end even when closely miked. The KK 105 U condenser capsule head combines Neumann's refined sound with the resilience needed for the stage.
Wireless Freedom for Neumann Tone
The KK 105 U condenser capsule head works seamlessly with major wireless systems, giving you legendary Neumann sound without cables. Simply screw the KK 105 U onto compatible handheld transmitters and get ready for outstanding vocal tone. Whether you sing lead vocals for a rock band or give keynote speeches to large crowds, the KK 105 U condenser capsule brings studio-quality Neumann sound to your wireless rig. Experience the clarity and expressiveness of Neumann miking for all your live vocal needs.
Specifications
- Directional Pattern: Supercardioid
- Frequency Range: 40Hz–20kHz
- Sensitivity at 1kHz into 50 kohm: 4 mV/Pa ≅–48 dBV ± 1dB
- Signal-to-noise ratio, CCIR* (rel. 94dB SPL): 62dB
- Signal-to-noise ratio, A-weighted* (rel. 94dB SPL): 73dB
- Equivalent noise level, CCIR*: 32dB
- Equivalent noise level, A-weighted*: 21 dB-A
- Maximum SPL for THD < 0.5%**: 152dB
- Weight: approx. 183 g
- Diameter: 48 mm
- Length: 80 mm
- Operating temperature range: 0 °C - +70 °C (32 °F - 158 °F)
- Storage temperature range: −20 °C - +70 °C (−4 °F - 158 °F)
- Humidity range: max. 90 % at +20 °C
