Four-channel active DI with special features.

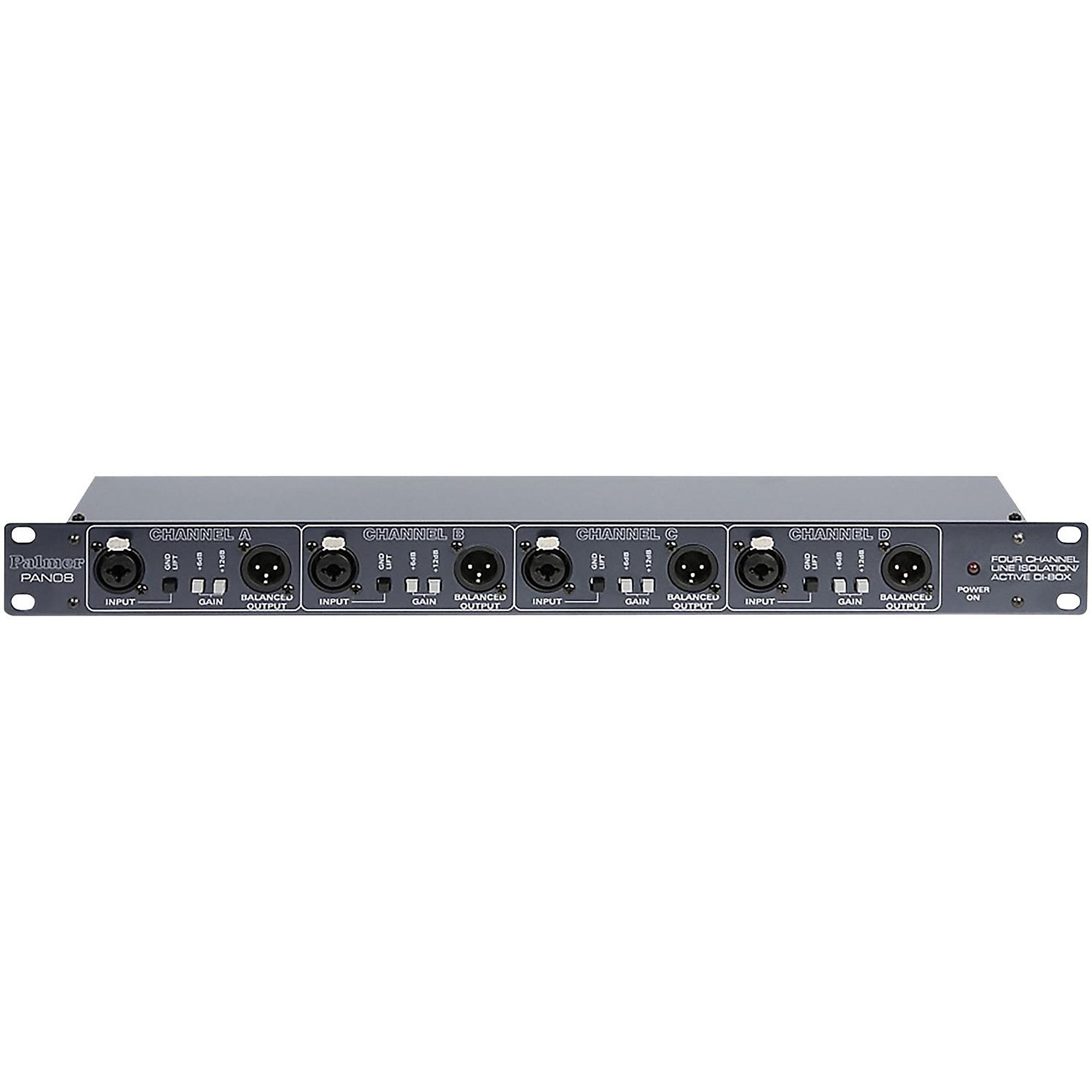

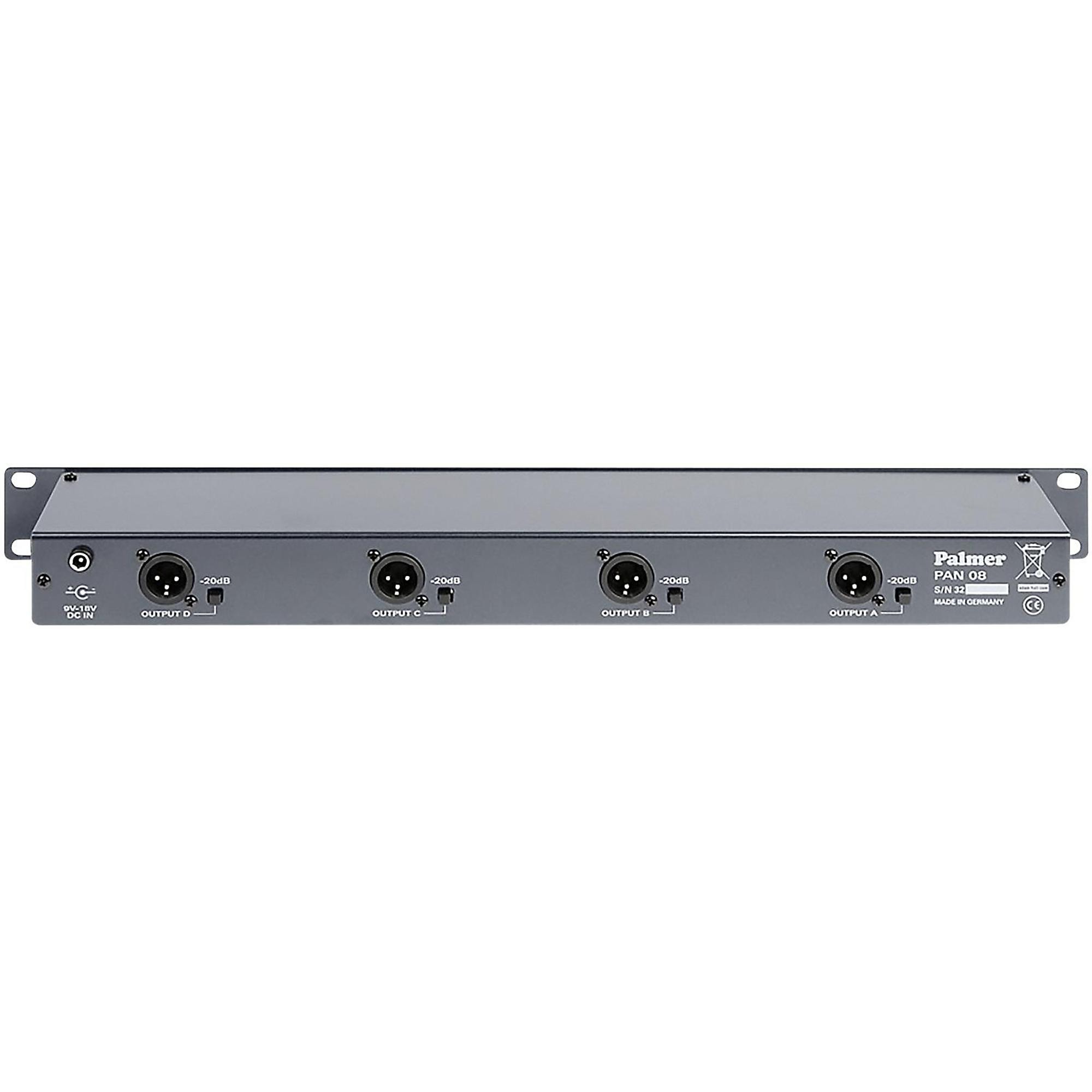

The PAN08 is a multifunctional device. Each of the four channels can be used independently as an active DI box, line isolation box, or booster. The combination socket input accepts unbalanced and balanced signals, and the output has dual transformer-balanced XLR jacks (front and rear).

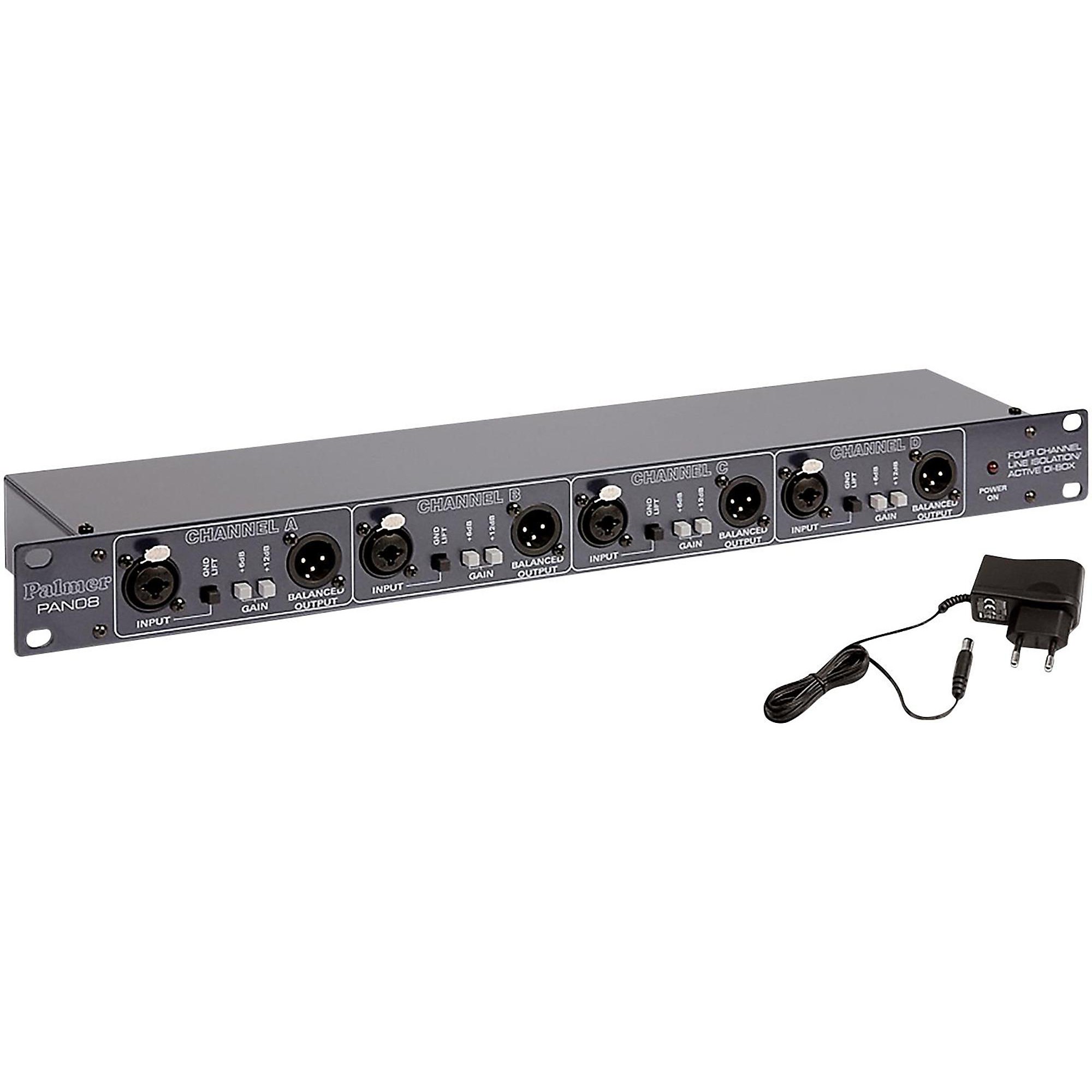

The signal level can be attenuated by 20 dB for microphone inputs, but can also be boosted in three stages by up to 18 dB for LINE inputs if necessary. With an output level of +12 dBu on a load of 600 Ohms with 0.05 % THD / 40 Hz and an output noise level of less than -110 dBu, the unit meets professional standards. One special feature worthy of mention is battery power. The supply voltage may range from 9 to 18 V. Thus the PAN08 can also be used outdoors without mains power.
The signal level can be attenuated by 20 dB for microphone inputs, but can also be boosted in three stages by up to 18 dB for LINE inputs if necessary. With an output level of +12 dBu on a load of 600 Ohms with 0.05 % THD / 40 Hz and an output noise level of less than -110 dBu, the unit meets professional standards. One special feature worthy of mention is battery power. The supply voltage may range from 9 to 18 V. Thus the PAN08 can also be used outdoors without mains power.
Features
- Product type: DI Boxes
- Type: active
- Channels: 4
- Inputs: 4
- Input connectors: XLR, 6.3 mm Jack
- Max. input level: +12 dBu
- Input impedance: Balanced: 20k Ohm(s)
- Outputs: 8
- THRU outputs/channel: 0
- Output connectors: XLR
- Max. output level: +12 dBu
- Output impedance: 600 Ohm(s)
- Frequency response: 20 - 20000 Hz
- Transformer balanced: yes
- Ratio: Variable
- Indicators: Power
- Controls: 2 x gain, attenuator, ground lift
- Operating voltage: 9 V DC power supply
- Cabinet material: sheet steel
- Cabinet surface: powder coated
- Width: 480 mm
- Width: 19"
- Depth: 90 mm
- Height: 45 mm
- Height: 1 U
- Weight: 1.59 kg
