Isolation for eliminating hum and noise.

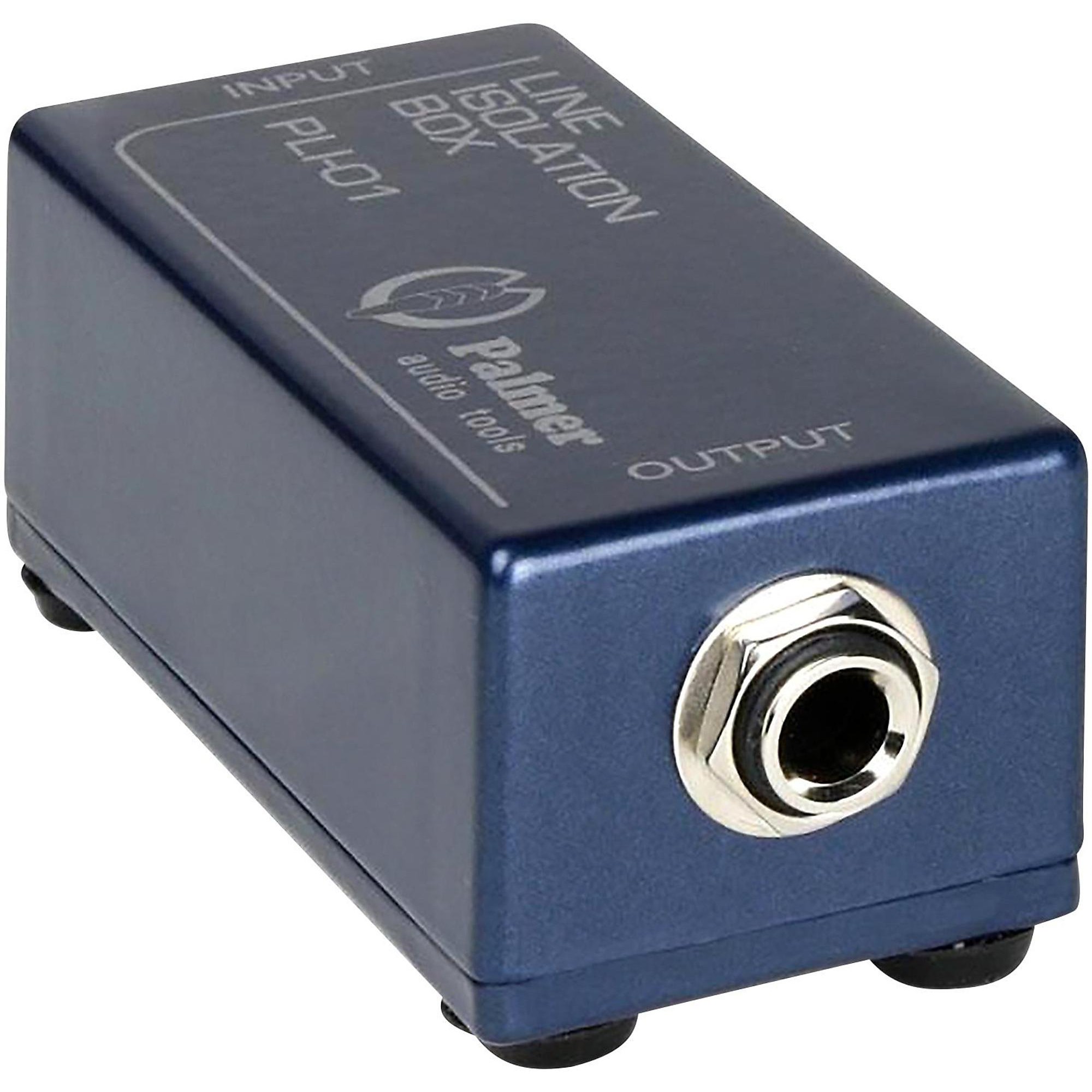

Mono isolation transformer (line isolator), equipped with 1/4 in. TRS jack sockets at both ends for balanced and unbalanced signals. Especially suitable for eliminating ground loops that cause hum. Conversion from unbalanced to balanced is possible. A two-channel version can be found under product number PLI05. Single channel unit in a small rugged diecast box. Especially useful in guitar rack systems where multiple signal processors and preamplifiers are combined. Also eliminates noise in car hifi when used to isolate power boosters.
Features
- Product type: Line Isolators
- Channels: 1
- Inputs: 1
- Input connectors: 6.3 mm Jack
- Input type: balanced/unbalanced (depending on TS/TRS connection)
- Input impedance: 10 k Ohm(s)
- Max. input level: +6 dBu
- Outputs: 1
- Output connectors: 6.3 mm Jack
- Output type: balanced/unbalanced (depending on TS/TRS connection)
- Output impedance: 10 k Ohm(s)
- Max. output level: +6 dBu
- Transformer balanced: yes
- Ratio: 1:1
- Frequency response: 20 - 20,000 Hz
- Cabinet material: die-cast aluminium
- Cabinet surface: powder coated
- Width: 105 mm
- Depth: 35 mm
- Height: 35 mm
- Weight: 0.16 kg
