For Podcast, stage and studio with fast USB-C connectivity.

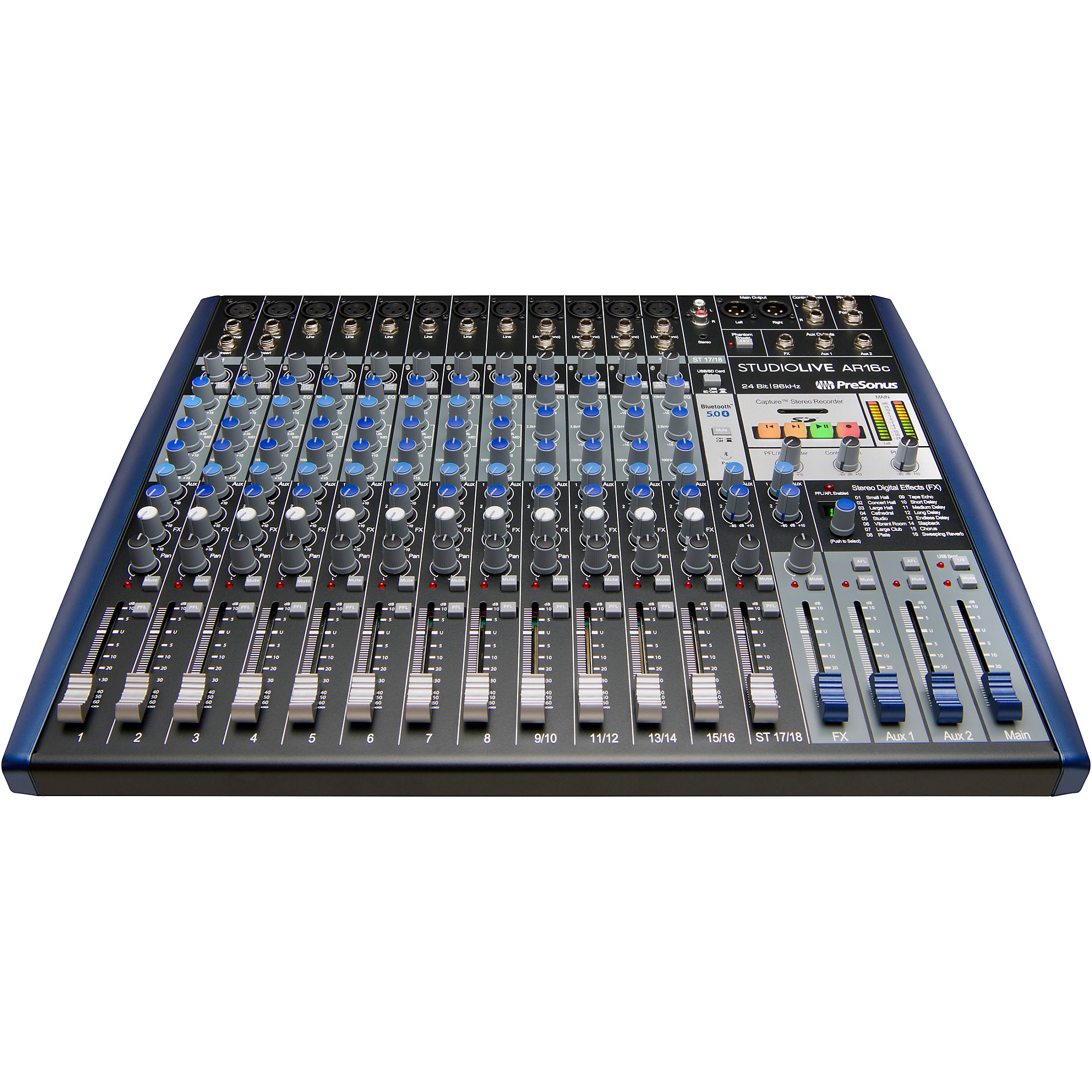

Don’t let the classic analog mixer design fool you—the StudioLive AR16c was built to record.
Featuring a pristine analog front end with 12 high-gain XMAX-L mic preamps and an 18x4, 24-bit, 96 kHz, USB-C-compatible USB 2.0 audio interface, the StudioLive AR16c’s hybrid design makes it simple to mix and record.
Add in a musical 3-band analog EQ, mic/line boost for low-level sources including vintage synths, all-new digital effects with rich reverbs and lush delays, Bluetooth connectivity, and a stereo SD recorder... and you have a mixing and recording powerhouse that fulfills the needs of both modern musicians and content creators.
Featuring a pristine analog front end with 12 high-gain XMAX-L mic preamps and an 18x4, 24-bit, 96 kHz, USB-C-compatible USB 2.0 audio interface, the StudioLive AR16c’s hybrid design makes it simple to mix and record.
Add in a musical 3-band analog EQ, mic/line boost for low-level sources including vintage synths, all-new digital effects with rich reverbs and lush delays, Bluetooth connectivity, and a stereo SD recorder... and you have a mixing and recording powerhouse that fulfills the needs of both modern musicians and content creators.
Specifications
- 12 balanced microphone inputs with XMAX-L mic preamps including:
- 2 instrument/line inputs
- 6 balanced mono line inputs
- 4 pairs of balanced stereo line inputs
- 2 insert points (channels 1 and 2)

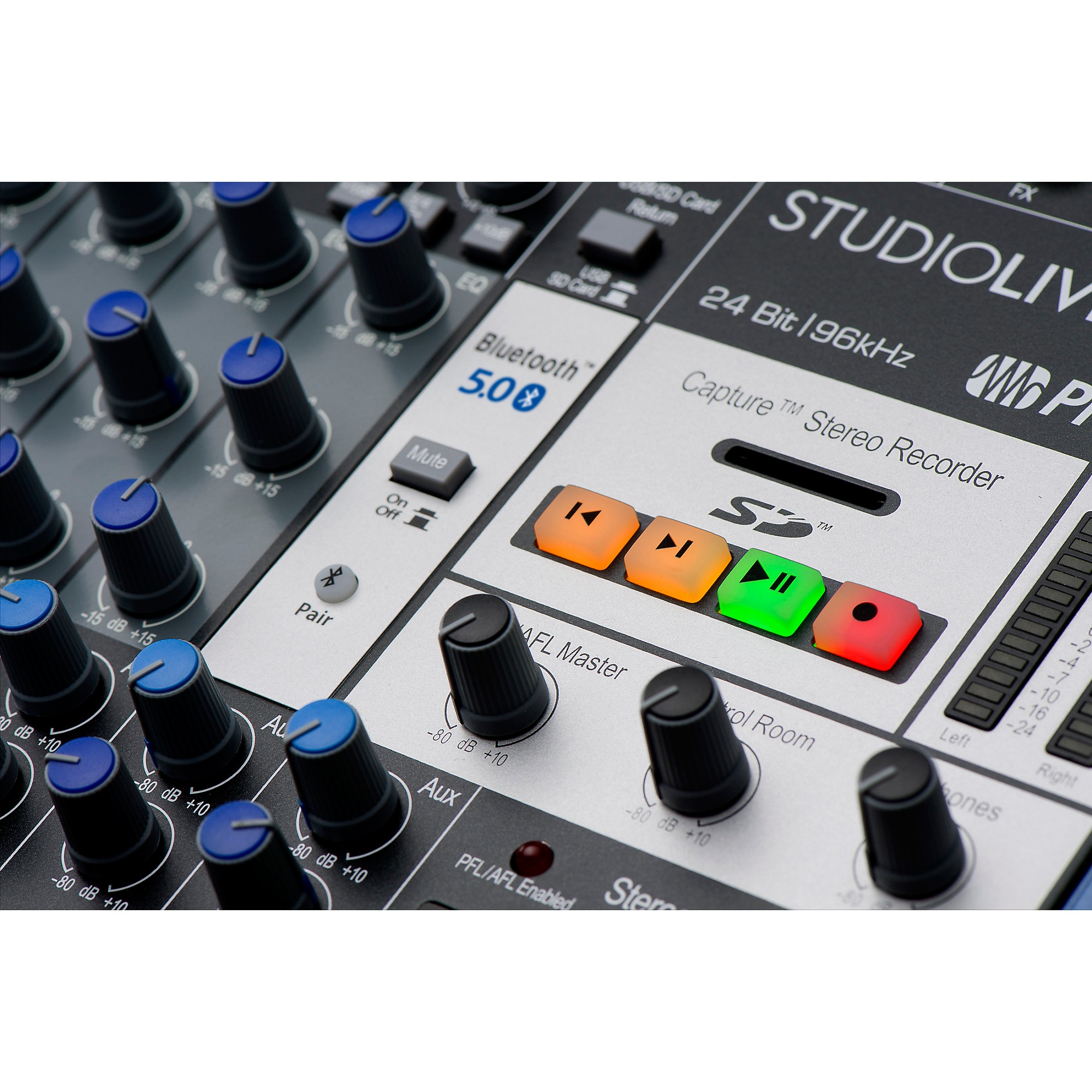

- Stereo Super Channel (Ch. 17/18) with Bluetooth 5.0 input, RCA inputs, 1/8-inch stereo input, and switchable SD/USB stereo playback
- 8 mono and 4 stereo channels, each with level knob, pan, mute, PFL solo, highpass filter, and 3-band semi-parametric EQ

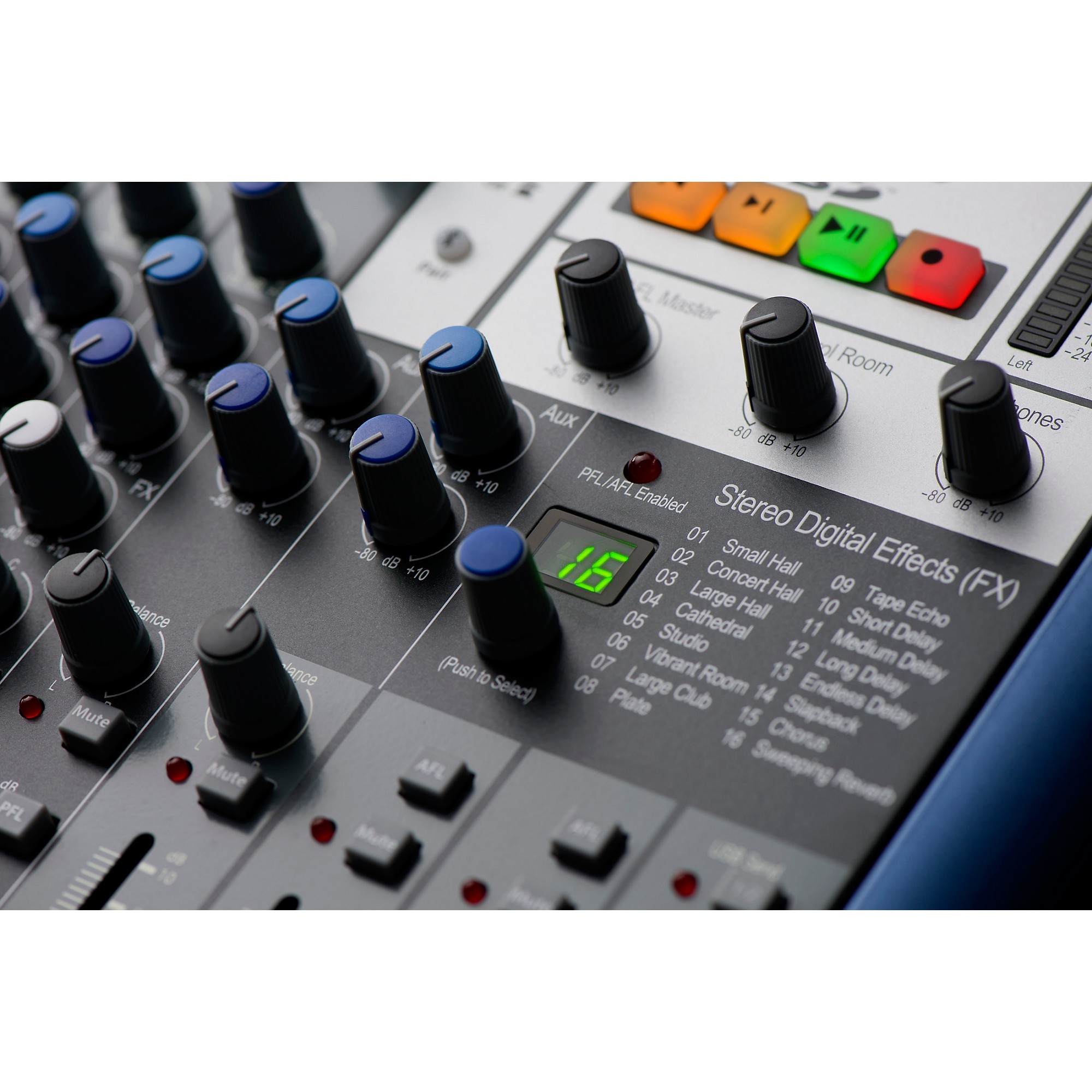

- Stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack
- 2 monitor buses with dedicated channel sends, AFL solo, and balanced TRS output
- Mic/line boost for low-level input sources and consumer devices
- XLR Main outputs
- L/R Control Room outputs and headphone output with dedicated level controls
- Global +48V phantom power

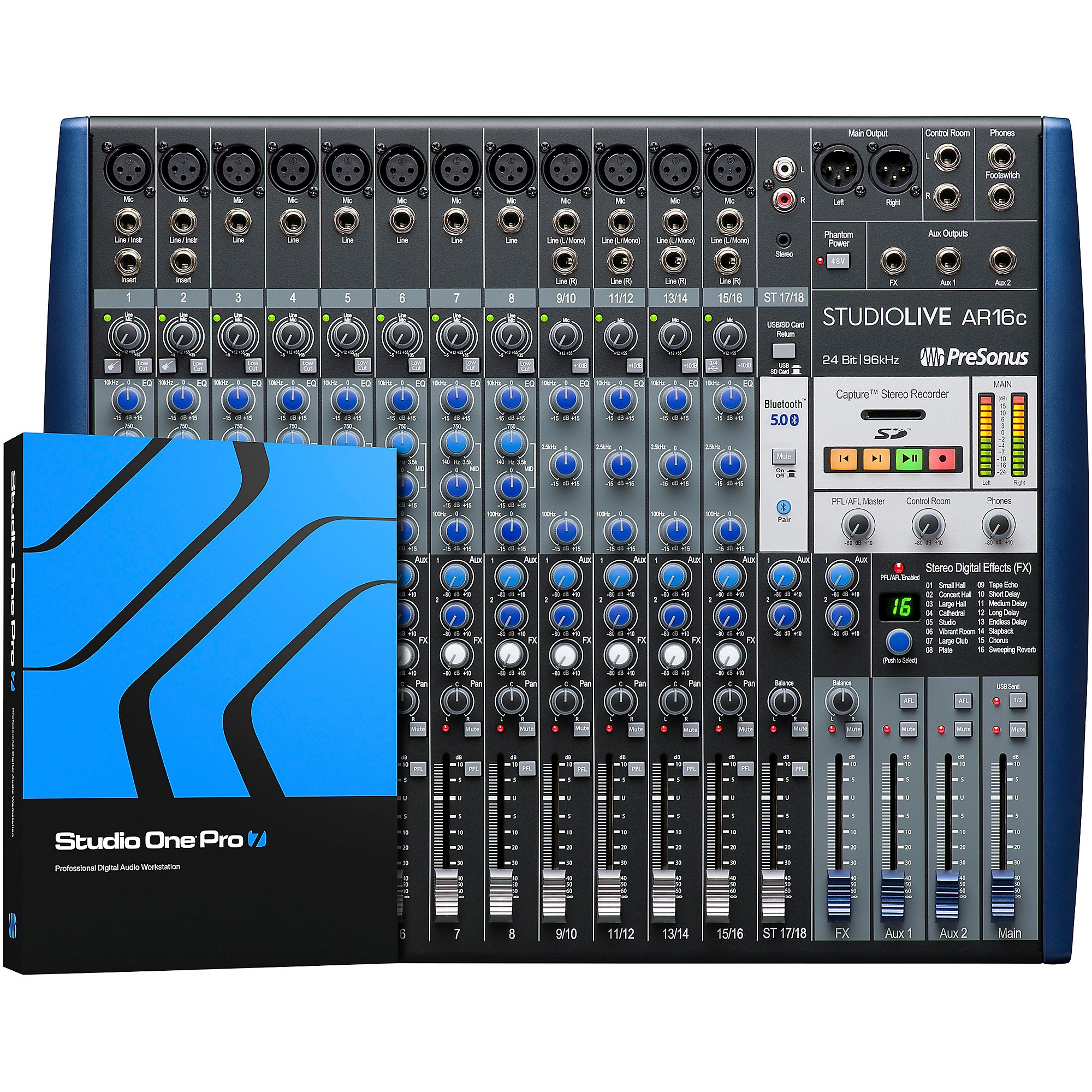

- Complete recording solution: Includes Capture live-recording software and Studio One Artist DAW for Mac and Windows

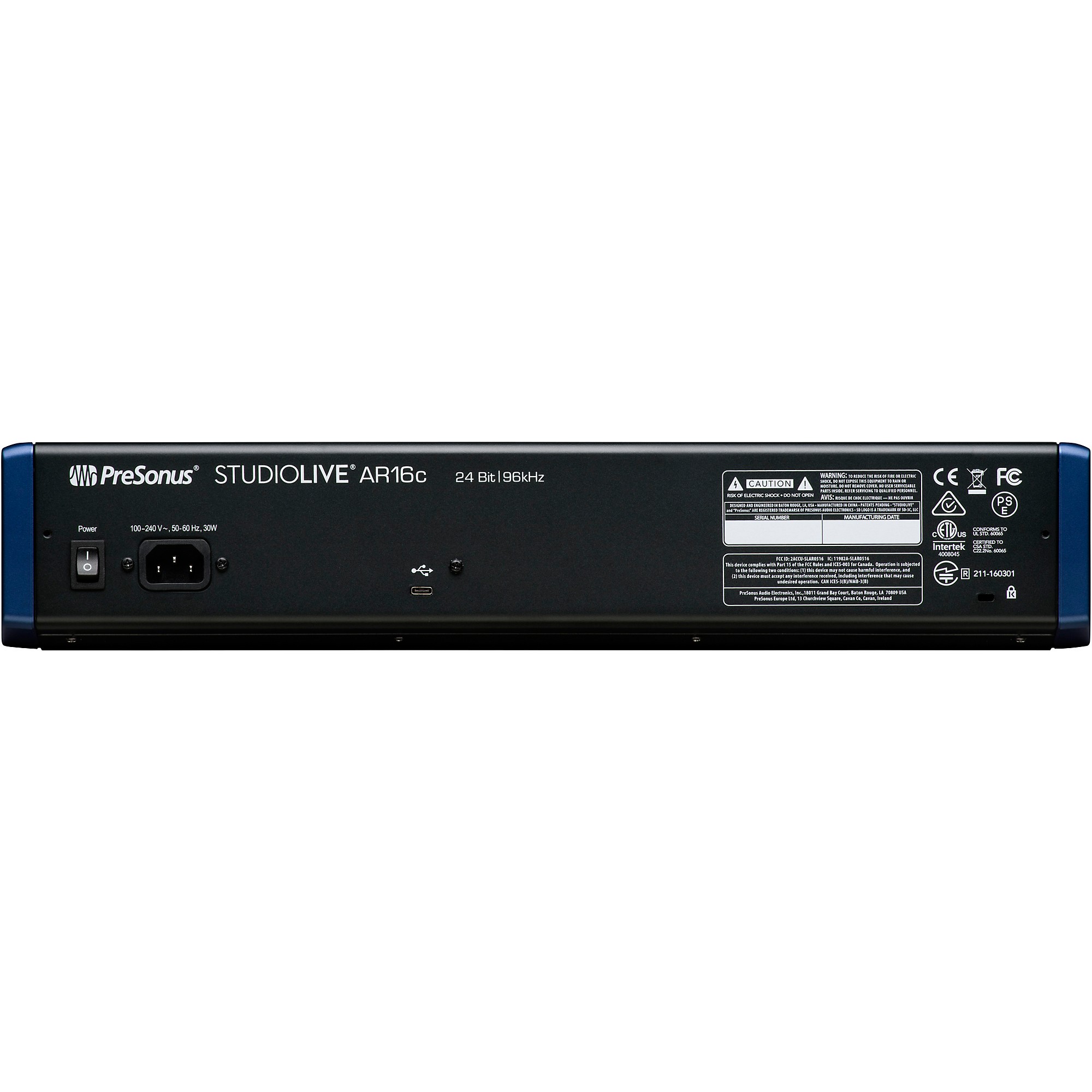

- Internal power supply
- Rackmount kit included, optional carrying backpack available
