No gimmicks or frills, just the right stuff.

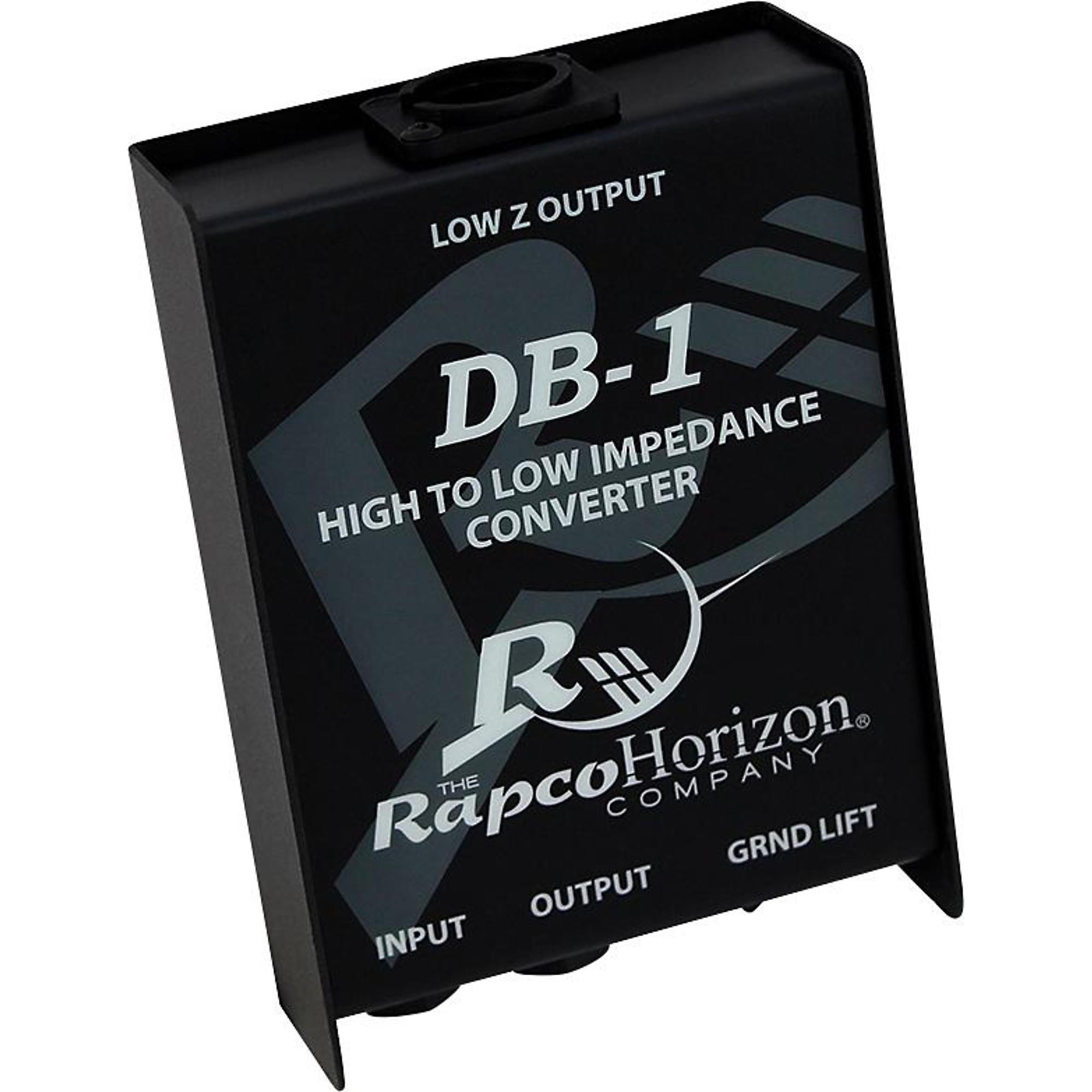

The DB-1's simple design offers reliable input jacks as well as a loop-through 1/4 in. jack. Plug any instrument level signal (and some line level) into the box, interface with a standard XLR mic cable into the Lo-Z output, and you're ready to plug the output directly into a mixing console. A ground lift switch is provided for buzz-free operation in almost any environment.
Specifications
- FREQUENCY RESPONSE:
- 20Hz-20kHz, ±.5DB @ -15dBv output
- -3dB @ approximately 85kHz
- Filter mode introduces 6dB/octave attenuation above 4.0kHz
- TOTAL HARMONIC DISTORTION:
- Less than .03% 20Hz-20kHz @ -30dBv output
- Less than .1% 30Hz-20kHz @ -15dBv output
- Less than .25% 20Hz-20kHz @ -15dBv output
- PHASE RESPONSE:
- Less than -18 @ 20kHz (ref. 1.0kHz)
- RISE TIME:
- Less than 4.5 microseconds (2.0kHz square wave, 10%-90%)
- INPUT IMPEDANCE:
- Greater than 130 kohm @ 1.0kHz (INST mode)
- Greater than 105 kohm @ 10kHz (INST mode)
- (Nominal source impedance is 20 kohm)
- Approximately 8.2 kohm (SPKR mode)
- (Nominal source impedance is 0 ohm)
- OUTPUT IMPEDANCE:
- Less than 200 ohm @ 1.0kHz
- Less than 215 ohm @ 10kHz
- (Nominal load impedance is 1.0 kohm)
- VOLTAGE STEPDOWN:
- Less than 22dB @ 1.0khz (INST mode)
- (SPKR mode attenuates signal by 20dB)
- MAXIMUM INPUT LEVEL @ 50Hz FOR 1% THD:
- +16dBv (INST mode), +34dBv (SPKR mode) @ 20Hz
- +21dBv (INST mode), +41dBV (SPKR mode) @ 30Hz
- +26dBv (INST mode), +46dBv (SPKR mode) @ 50Hz
Features
- Transforms Hi-Z 1/4 in. input to balanced Lo-Z XLR output
- Heavy duty steel box
- Superior quality connectors and transformer
- Recessed connectors and switches to prevent damage
- Ground lift switch to eliminate hum
- Paralleled 1/4 inch output for on-stage monitoring
- Individually tested for performance and quality
