Item #1599856 Model #COMB4CP-ARCB

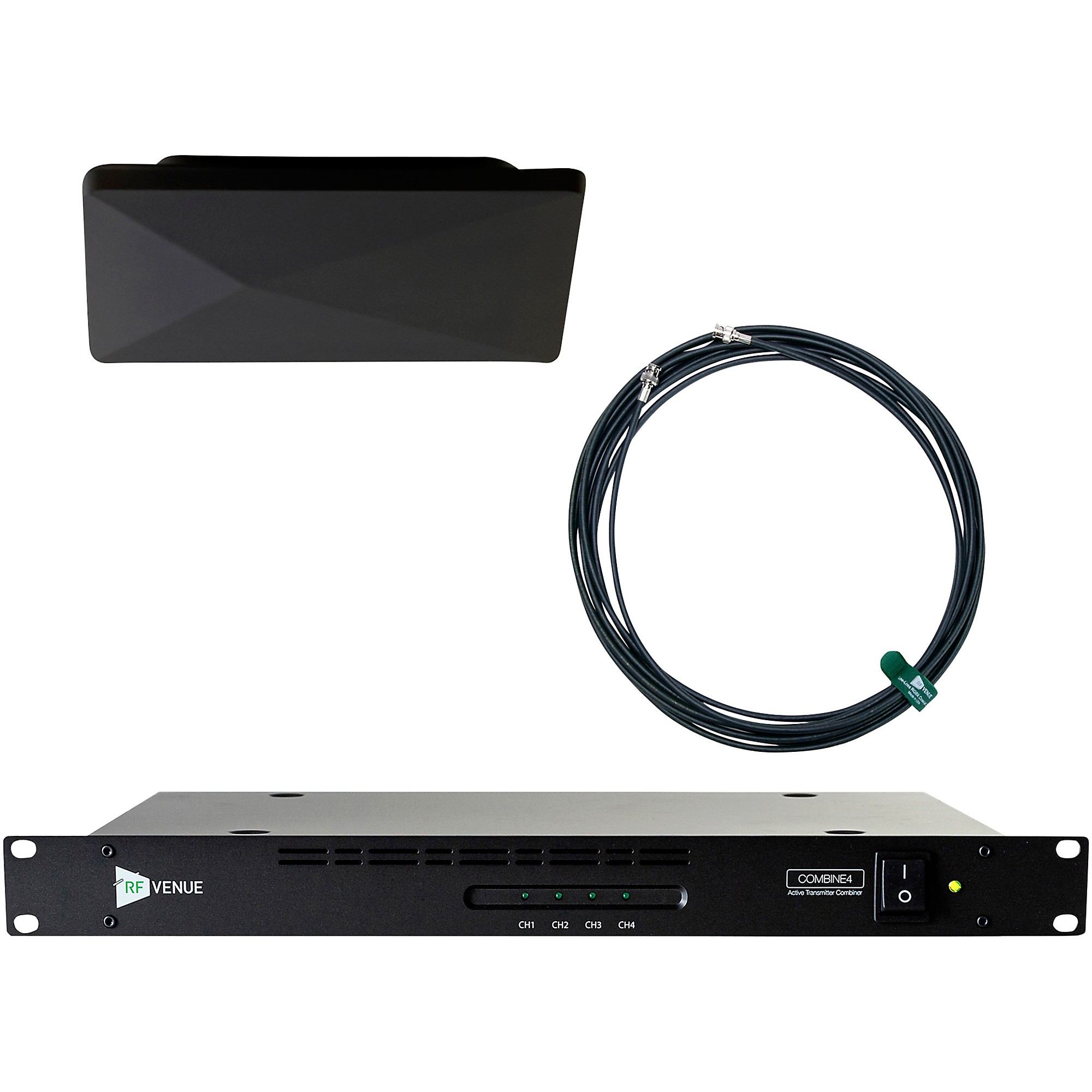

RF Venue CP Architectural Antenna, Black and COMBINE4 Black

$1,499.00

Availability
Delivery
Out of stock
Pickup In-Store

This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Email me when in stock

Save to Wishlist

A complete IEM antenna system for reduced interference.

The RF Venue CP Architectural antenna and COMBINE4 bundle provides an all-in-one IEM antenna solution to optimize your in-ear monitor transmitter setup. With the COMBINE4, you can combine up to four IEM transmitters into a single CP Architectural antenna, reducing cable clutter and interference. The CP antenna is specifically designed for IEM applications, providing optimized coverage across venues.

Combine Up to 4 Transmitters Into One Antenna

The COMBINE4 IEM transmitter combiner is a key component, letting you combine signals from up to four transmitters of any brand into the single CP Architectural antenna. This minimizes intermodulation distortion that can occur when multiple IEM antennas are positioned close together. The COMBINE4 provides DC power to your transmitters as well, eliminating excess wall warts and cable mess. With a maximum input power of 100mW, it reliably handles professional IEM transmitter levels.

CP Antenna Optimized for In-Ear Monitor Systems

The CP Architectural antenna included in this bundle is engineered specifically for IEM applications. Its wide 100° vertical by 80° horizontal dispersion pattern provides optimized coverage across venues of all sizes. The rugged ABS housing withstands tough touring conditions. With a sleek, low profile design, the CP antenna mounts cleanly wherever needed. For indoor venues, the optional mounting hardware lets you install it subtly against walls and ceilings. Outdoors, it mounts easily to mic stands or truss.

Includes Coaxial Cable for Quick Setup

The 25' RG8X coaxial cable included with the bundle connects the COMBINE4 unit to the CP antenna for fast, clutter-free installation. No need to source your own cabling. Just mount the antenna, connect your transmitters to the COMBINE4 inputs, then attach the coax cable between the two components and you're set. The system is also available without the coax cable if you prefer to provide your own.

For anyone running multiple IEM transmitters, the CP Architectural antenna and COMBINE4 bundle provides an elegant, all-in-one solution to optimize your setup. Reduce interference, cut down cable clutter and enjoy quick, reliable performance show after show.

Specifications
COMBINE4
  • Operating Frequency: 470 to 960 MHz
  • Full System Gain: 0 dB (±2 dB)
  • Maximum RF Input Power: +20 dBm (100 mW)
  • LED Indicator (Input Signal Threshold): > +5 dBm
  • Power Consumption: 60 W
  • Input AC Voltage: 100-240V AC, 50/60 Hz, max 2A:
  • Output DC Voltage (to receiver jacks): +12V, 1A max (4 outputs total 48 W)
  • Dimensions: 480 mm (18.90") W x 260 mm (10.24") D x 45 mm (1.77") H
  • Weight: 2.3 kg (5.1 lbs)
  • Accessories Included: AC cable; DC cable (x 4), BNC jumper (x 4)
CP-ARCB
  • Radiation Pattern: Flood
  • Polarization: RHCP
  • Frequency Range: 400 to 800 MHz
  • Impedance: 50 ohms
  • Beam Width: 120°
  • Gain: 2.5 dBi (@ 500 MHz)
  • Operating Bandwidth: 400 MHz
  • Operating Temperature Range: 10°C to +40°C (14°F to 104°F)
  • Dimensions: 280 mm (11") W x 280 mm (11") D x 50 mm (2") H
  • Typical Return Loss: 10 dB
  • Weight: 0.9 kg (2 lbs)
  • Mount Location: Wall or ceiling
  • Color: Black
  • Connector: BNC Female
  • Accessories: Ceiling hardware mounting kit; wall hardware mounting kit
