Item #1599858 Model #COMB8CP-ARCB

RF Venue CP Architectural Antenna, Black and COMBINE8 Black

$2,599.00

Availability
Delivery
Out of stock
Pickup In-Store

This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Email me when in stock

Save to Wishlist

An engineered wireless system to combine and power in-ear monitors.

The CP Architectural antenna and COMBINE8 from RF Venue is an all-in-one wireless system designed to optimize and simplify in-ear monitoring on stage. With the COMBINE8 transmitter combiner, you can combine signals from up to eight in-ear monitor transmitters into one CP Architectural antenna. The system also includes a DC power cable to provide power directly to the transmitters, eliminating the need for bulky wall wart power supplies. Thoughtfully engineered as a complete package, the CP Architectural antenna and COMBINE8 provides the key components—combiner, antenna and cabling—for quick and easy setup.

Reduce Interference With Up to Eight Transmitters Combined

Getting clean, consistent audio to musicians' in-ear monitors is critical, but closely positioned transmitters often interfere with each other. The COMBINE8 IEM transmitter combiner solves this by taking signals from up to eight transmitters and combining them into one output that connects to the CP Architectural Antenna. This greatly minimizes intermodulation artifacts and interference that you'd get running each transmitter into its own antenna. The result is solid, reliable audio being transmitted to each musician's ears. With the COMBINE8, you can combine transmitters from any brand as long as they are set to transmit at 50mW or less.

Power Transmitters Directly With the DC Power Cable

In addition to combining transmitter signals, the COMBINE8 also provides DC power directly to up to eight connected transmitters via the included DC-OCTOPUS power cable. This eliminates the need for multiple wall wart power supplies for each transmitter. Without a tangle of wall warts, setup is simpler and the system stays neat and organized. The DC power cable plugs into the COMBINE8 combiner to deliver reliable power to every connected transmitter.

Thoughtfully Engineered System for Seamless Setup

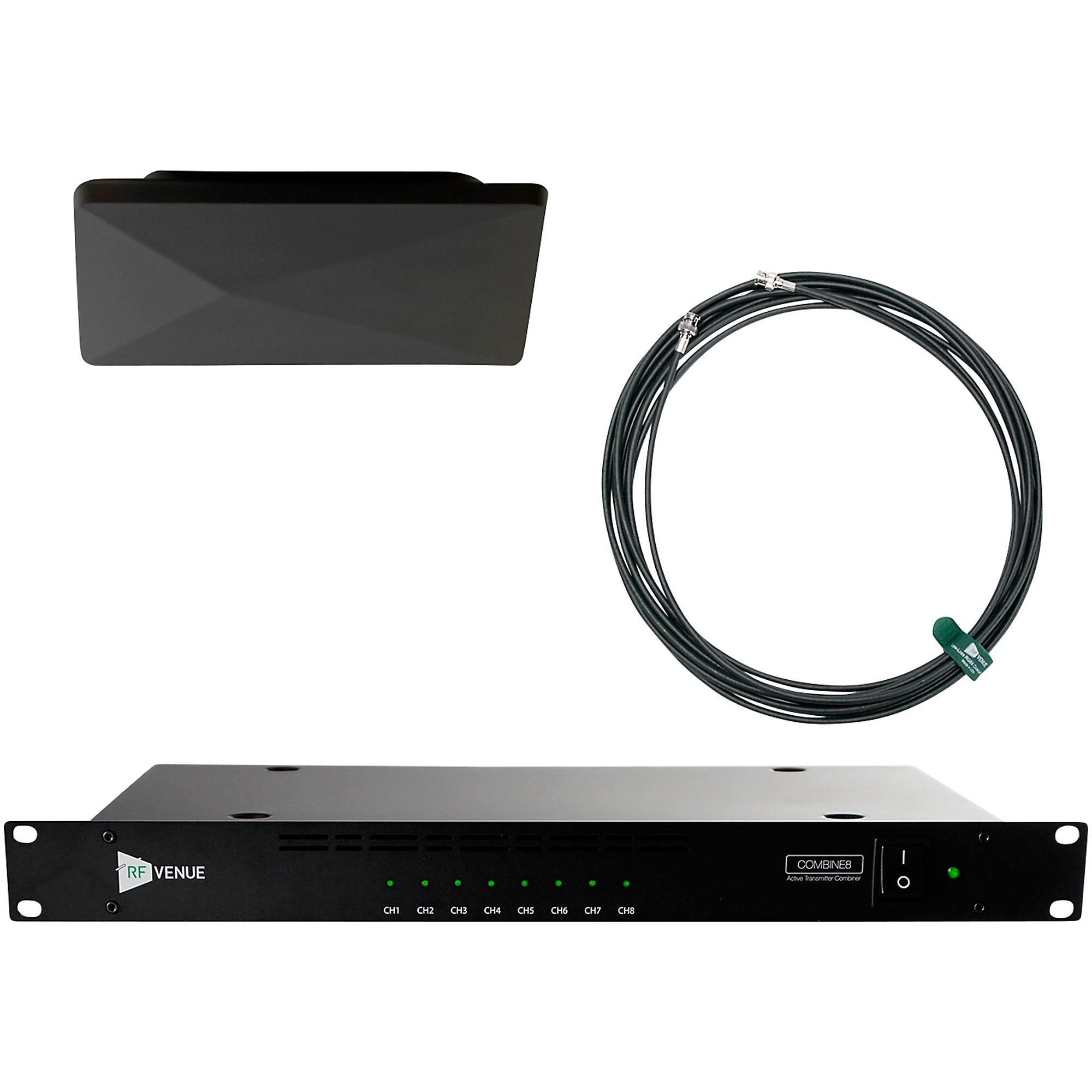

With the CP Architectural Antenna, COMBINE8 and 25' RG8X coaxial cable included, this RF Venue bundle provides the core components for an optimized in-ear monitoring system. Each element is engineered to work seamlessly together for quick, uncomplicated setup and reliable performance. The CP Architectural Antenna offers a sleek, low profile design that mounts to walls or mic stands. At just 11.5" tall, it provides an unobtrusive option for permanent installs or portable setups. The system is easy to transport in a gear bag or flight case, offering portable convenience between venues and shows.

For musicians who rely on in-ear monitors on stage, the CP Architectural antenna, Black and COMBINE8 system delivers optimized wireless audio transmission. With reduced interference between transmitters, you get clear, consistent sound straight to your ears. The streamlined design eliminates messy wall warts while ensuring reliable power to every transmitter.

Specifications
COMBINE8
  • Frequency Range: 470-608 MHz
  • Input Connectors: BX BNC
  • Full System Gain: 0 dB (±2 dB)
  • Maximum RF Input Power: +18 dBm (60 mW)
  • LED Indicator (Input Signal Threshold): > +5 dBM (Threshold power)
  • Power Consumption: 84 W
  • I / 0: BX RF inputs 1 antenna out.
  • Input AC Voltage: 100-240 VAC, 50/60 Hz, 2A
  • DC Output: 12VDC 4A
  • Dimensions: 480 (W) X 45 (H) X 260 (D) mm
  • Weight: 3.7 kgs
CP-ARCB
  • Radiation Pattern: Flood
  • Polarization: RHCP
  • Frequency Range: 400 to 800 MHz
  • Impedance: 50 ohms
  • Beam Width: 120°
  • Gain: 2.5 dBi (@ 500 MHz)
  • Operating Bandwidth: 400 MHz
  • Operating Temperature Range: 10°C to +40°C (14°F to 104°F)
  • Dimensions: 280 mm (11") W x 280 mm (11") D x 50 mm (2") H
  • Typical Return Loss: 10 dB
  • Weight: 0.9 kg (2 lbs)
  • Mount Location: Wall or ceiling
  • Color: Black
  • Connector: BNC Female
  • Accessories: Ceiling hardware mounting kit; wall hardware mounting kit
