Item #1599879 Model #DFINWD9

RF Venue DISTRO9 HDR and Diversity Fin Antenna Bundle Black

$2,849.00

Availability
Delivery
Out of stock
Pickup In-Store

This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Email me when in stock

Save to Wishlist

Robust RF distribution for flawless wireless performance.

The DISTRO9 HDR diversity fin antenna bundle from RF Venue is the ultimate wireless microphone system, ensuring your performances come through loud and clear. With the DISTRO9 HDR 9-channel antenna distribution system at its core, this bundle provides superior RF signal distribution and noise reduction for crystal-clear audio. When flawless wireless performance is a must, trust the DISTRO9 HDR diversity fin antenna bundle to deliver.

Superior RF Signal Distribution and Noise Reduction

The DISTRO9 HDR forms the backbone of this system, providing the highest-quality RF signal distribution for your wireless mics. The low-noise amplifiers and superior gain structure give you over 60dB of dynamic range across the spectrum from VHF to UHF and 900MHz. That means you get flawlessly clear audio with very low noise, letting your vocals, guitars and other instruments shine through. The DISTRO9 HDR ensures a strong, consistent signal no matter where you move on stage.

Flexible 9-Channel System

The DISTRO9 HDR gives you 9 channels of low-noise diversity wireless in a single unit. Its flexible design means any output can cascade to a second DISTRO9 HDR, allowing you to connect up to 17 wireless mics in just two rack spaces. With so many channels, you can dedicate antennas to drums, guitars, vocals and more. Separate performers into different zones as needed.

Dual-Antenna Technology

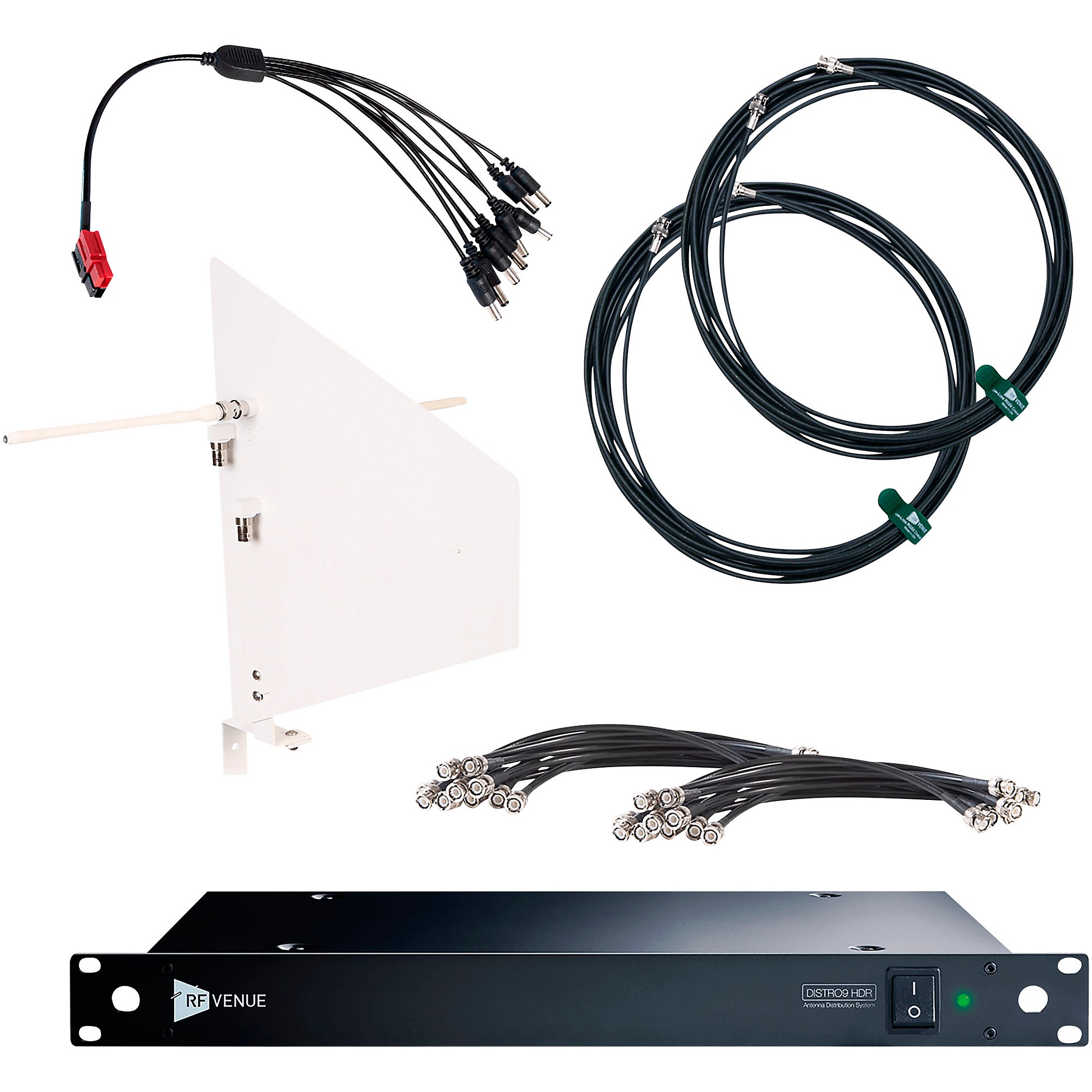

This bundle includes the DFINW diversity fin antenna, designed specifically for wireless systems. Its unique dual-antenna technology incorporates both directional and omni-directional elements to capture horizontally and vertically polarized waves. Mounted on the wall, the DFINW significantly improves signal consistency in reflective environments compared to traditional antennas. The dual elements also mean you only need one antenna instead of two separate ones. For permanent installs, the included L-bracket and hardware make mounting the DFINW fast and secure.

Easy Mounting and Cabling

Setting up the DISTRO9 HDR diversity fin antenna bundle is quick and easy thanks to the included cabling and mounting hardware. The 25 RG8X coaxial cables securely connect the DISTRO9 HDR to your remote antennas with BNC connectors. The L-bracket allows permanent wall mounting of the DFINW antenna. Ten 1.5' BNC cables provide short interconnects between components. With professional-grade cables and connectors, the system installs rapidly. The dedicated DC power kit even supplies power to your wireless receivers. Get your wireless system up and running fast with everything included in this bundle.

Specifications
  • Type: Antenna Distribution System with Diversity Fin Antenna
  • Channels: 9
  • Frequency Range: 50-1000 MHz (VHF, UHF, +900 bands)
  • Connectivity: 22 x BNC (4 inputs, 18 outputs), 1 x Anderson Powerpole (DC output), 1 x Cat6
  • Rackmountable: Yes, 1U
  • Dimensions: 18.89" x 1.77" x 9.84"
  • Cable Length: 2 x 25' Coaxial Cables
