Item #1599859 Model #D-ARCBDISTRO4

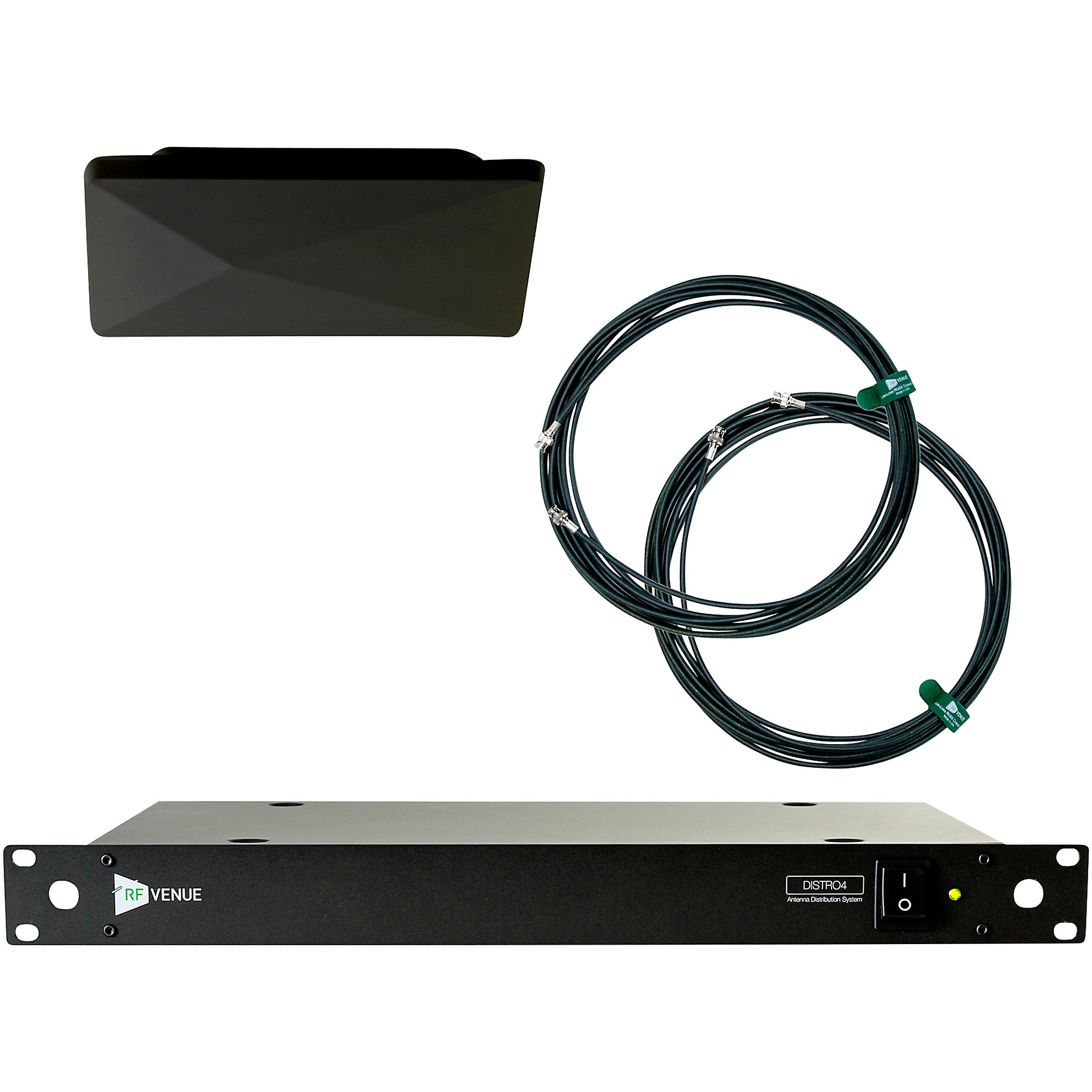

RF Venue Diversity Architectural Antenna, Black DISTRO4 Pack Black

$1,449.00

Availability
Delivery
Out of stock
Pickup In-Store

This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Email me when in stock

Save to Wishlist

A wireless system engineered for consistent, interference-free audio.

The Diversity Architectural antenna and DISTRO4 bundle from RF Venue delivers wireless microphone reception you can count on. With its dual-antenna diversity and flexible distribution capabilities, it's engineered to prevent pesky dropouts and interference during critical performances. Designed for seamless integration into any venue, this system simplifies signal routing while providing the range and reliability that vocalists and presenters need.

Never Miss a Note With Dual-Antenna Diversity

The D-ARC Diversity Omni antenna uses a patent-pending dual-feed design to achieve true diversity operation from a single unit. This eliminates signal fades and dropouts that occur when a performer turns their head or body, changing the angle of the wireless mic. The two internal antenna elements connect to both diversity inputs on the receiver, providing a continuous signal path as the orientation shifts. Housed in a paintable enclosure, the D-ARC installs cleanly on a wall or ceiling and blends into any room décor.

Distribute Signals Without Degradation

The DISTRO4 splits your antenna signal to feed up to four wireless receivers, while actually boosting signal strength to compensate for losses. This allows you to easily expand your channel count without compromising audio quality. For larger systems, multiple DISTRO4 units can be cascaded to accommodate any number of channels. The 1RU rackmount chassis delivers DC power to receivers over the coax cable, eliminating bulky wall warts.

Hassle-Free Installation for Any Venue

This RF Venue bundle takes the guesswork out of designing a wireless system. The low-profile D-ARC antenna mounts on walls or ceilings with included hardware and blends right in when painted. The DISTRO4 rackmounts in a closet or equipment room, safely distributing signals to on-stage receivers via plenum-rated coax cable. With rock-solid RF performance, flexible configuration options and a clean esthetic, it's an ideal wireless platform for production companies, churches, schools, conference centers and performance venues of all types.

Specifications
DISTRO4
  • Frequency Range: 470-952 MHz
  • RF Output Level (Gain): 3 dB (±2 dB)
  • Cascade Output Level: 0 dB ~ +2 dB
  • Output Connection Isolation: ≥ 25 dB
  • Third Order Intercept Point: 24 dBm
  • Impedance: 50 ohms
  • Power Consumption: 60 W
  • Input AC Voltage: 100~240 V switching
  • DC Over Coax (to external antennas): 12-14 VDC
  • Output DC Voltage (to receiver jacks): +12 V
  • Output DC Connectors: 5.5mm OD, 2.1mm ID
  • Dimensions: 480 mm (18.90") W x 250 mm (9.84") D x 45 mm (1.77") H
  • Weight: 2.15 kg (4.7 lbs)
  • Accessories Included: AC cable; DC cable (x 4), BNC jumper (x 10)
D-ARC
  • Radiation Pattern: Diversity flood
  • Polarization: Linear
  • Frequency Range: 470 to 616 MHz
  • Impedance: 50 ohms
  • Operating Bandwidth: 146 MHz
  • Operating Temperature Range: -10°C to +40°C (14°F to +104°F)
  • Connections: BNC female
  • Dimensions: 280 mm (11") W x 280 mm (11") D x 50 mm (2") H
  • Typical Return Loss: -6.4 dB
  • Weight: 0.9 kg (2 lbs)
