The easiest way to bring hybrid versatility to your acoustic drums.

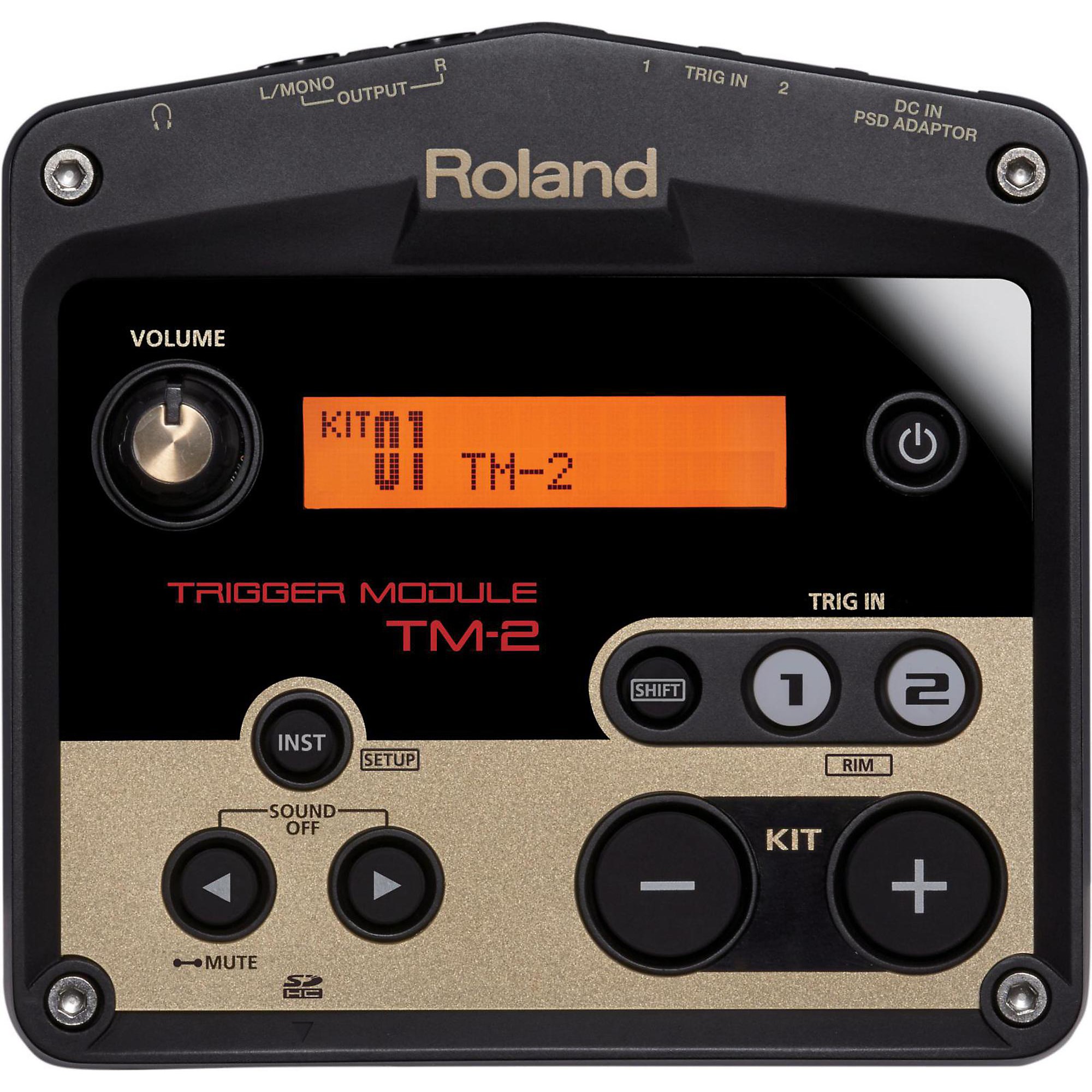

Battery powered and small in size, the TM-2 Trigger Module provides a simple solution for enhancing acoustic drums with the creative versatility of electronic percussion. Two trigger inputs support a wide variety of pads and drum triggers from Roland, while the ready-to-play pro sounds are optimized for augmenting live acoustic drums and extending the percussion capabilities of any drum set. Studio-quality multi-effects are on tap to process your kits, and you can even trigger your own custom WAV sounds, loops, and backing tracks via an SDHC card. By combining the TM-2 with products such as Roland's BT-1 Bar Trigger Pad, KT-10 Kick Trigger Pedal, or RT-series acoustic drum triggers, it's never been easier or more affordable to create a powerful hybrid drum kit that blends acoustic and electronic elements together.
Specifications
- Kits: 99
- Internal Instruments: 100+
- Number of User Instruments: Maximum 90,300
- File Format: WAV (44.1 kHz, 16 bits, Stereo/Mono)
- Storage Media: SD/SDHC Memory Card (Max. 32 GB)
- Multi-Effects: 1 system, 11 types
- Display: 16 characters, 2 lines (backlit LCD)
- Connectors:
- OUTPUT (L/MONO, R) jacks: 1/4-inch phone type
- PHONES jack: Stereo miniature phone type
- TRIG IN jack x 2: 1/4-inch TRS phone type
- MIDI (IN, OUT) connectors
- DC IN jack
- Power Supply: AC adaptor
- Alkaline battery: (AA, LR6) x 4
- Rechargeable Ni-MH battery (AA, HR6) x 4
- Current Draw: 400 mA
- Expected battery life: Approx. 4.5 hours
- Rechargeable Ni-MH battery (AA, HR6): Approx. 6 hours (When using batteries having a capacity of 2,000 mAh.)
- * The time may vary according to usage conditions, batteries used, and type of SD memory card used.
- Accessories: Owner's manual, Leaflet "USING THE UNIT SAFELY", AC adaptor
- Mounting plate: Wing bolt (M5 x 10) x 2
- Options (sold separately)
- Acoustic Drum Trigger: RT series
- Pads: PD series, PDX series, BT-1
- Kicks: KD series, KT-10
- Cymbals: CY series
- All Purpose Clump: APC-33
- Pad Stand: PDS-10
- Personal Drum Monitor: PM-10
- SIZE AND WEIGHT
- Width: 5-6/16" (135mm)
- Depth: 5-1/8" (130mm)
- Height: 2-6/16" (59mm)
- Weight: 13 oz. (360g)
Features
- Compact trigger module for drummers looking to incorporate a hybrid setup
- Over 100 ready-to-play acoustic kits, percussion instruments and sounds
- SDHC card slot lets users trigger their own WAV sounds stored on SDHC media, from one-shot samples and loop phrases to complete backing tracks
- Two trigger inputs that support both single- and dual-trigger pads
- Process kits with powerful effects such as reverb, flanger, delay, and more
- Compatible with Roland RT-series acoustic drum triggers and Roland percussion pads, including the BT-1 Bar Trigger Pad, KT-10 Kick Trigger Pedal, V-Pads, and V-Cymbals
- Powered by batteries or included AC adapter; up to four hours on four AA batteries
- Included mounting plate enables attachment to hi-hat stand or drum rack with a standard multi-clamp
- MIDI I/O for triggering sounds in external sound modules, capturing MIDI data in music software, and playing the TM-2 from other devices
- Simple and intuitive user interface for creating and selecting kits
- Suitable for all genres, from rock and metal to electronic music
