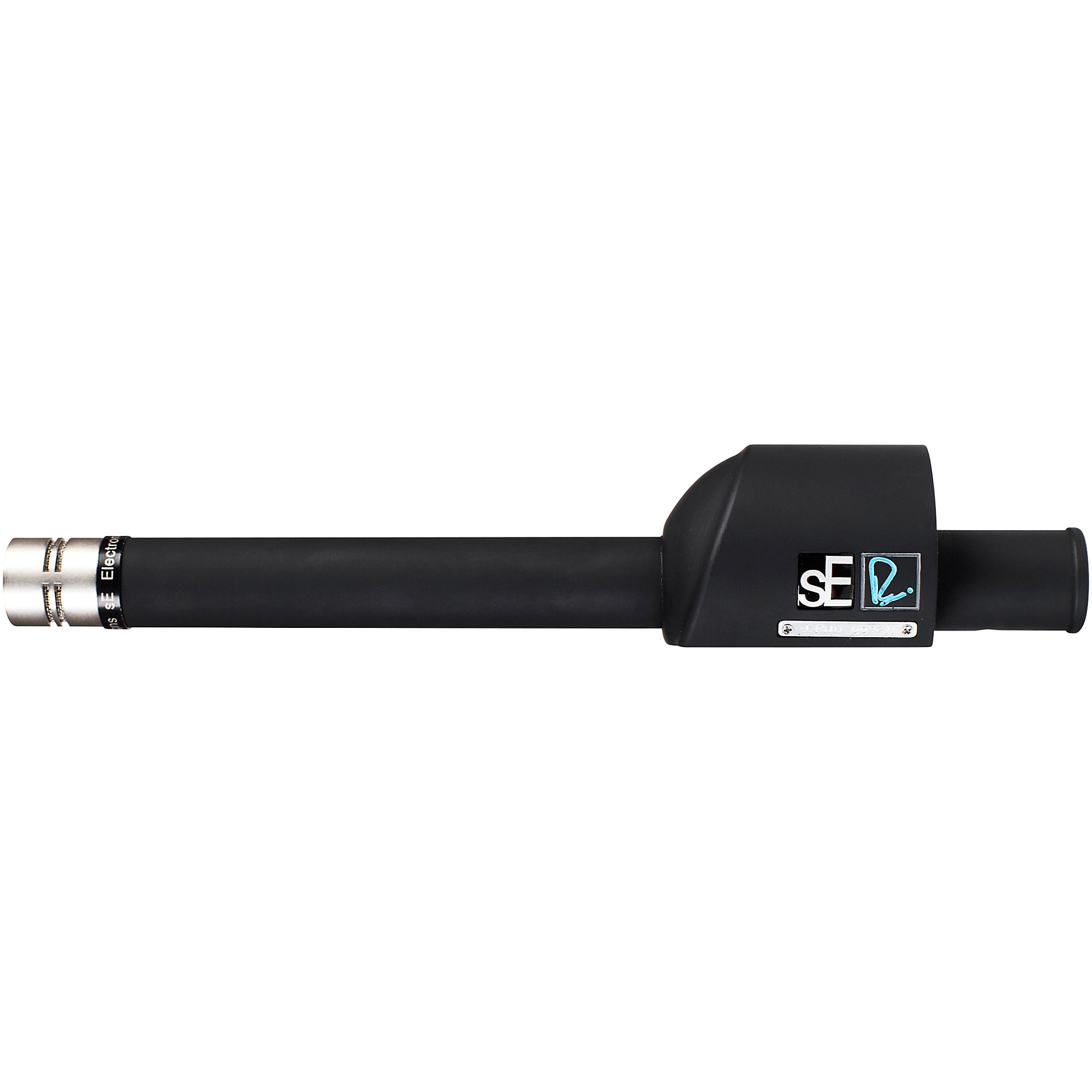

Designed with Rupert Neve, the RN17 redefines the capabilities of small-diaphragm condensers.
With a 15 mm diaphragm (the world's smallest production gold-sputtered diaphragm), the transient response of the RN17 is unparalleled. Such a small capsule reacts extremely quickly, and is therefore adept at picking up the most delicate of high-frequency content. However, a tiny diaphragm usually results in a lack of low-frequency response.
Made obvious by the unusual chassis shape, the RN17's transformer is substantially larger than the norm. This full-scale transformer was custom-designed by Rupert Neve specifically for this microphone—and nobody has been designing audio transformers longer (or better) than Rupert Neve.
With an audio transformer of this magnitude, the RN17 is able to put out astonishing clarity across all frequencies —not just the highs. The midrange is detailed and forward, the lows are full and accurate, and the whole microphone has a balance and headroom never before achieved with a small-capsule microphone.
The matte black finish minimizes the level of visual attention drawn to the microphone when used on stage or in the studio, allowing it to blend into the background.

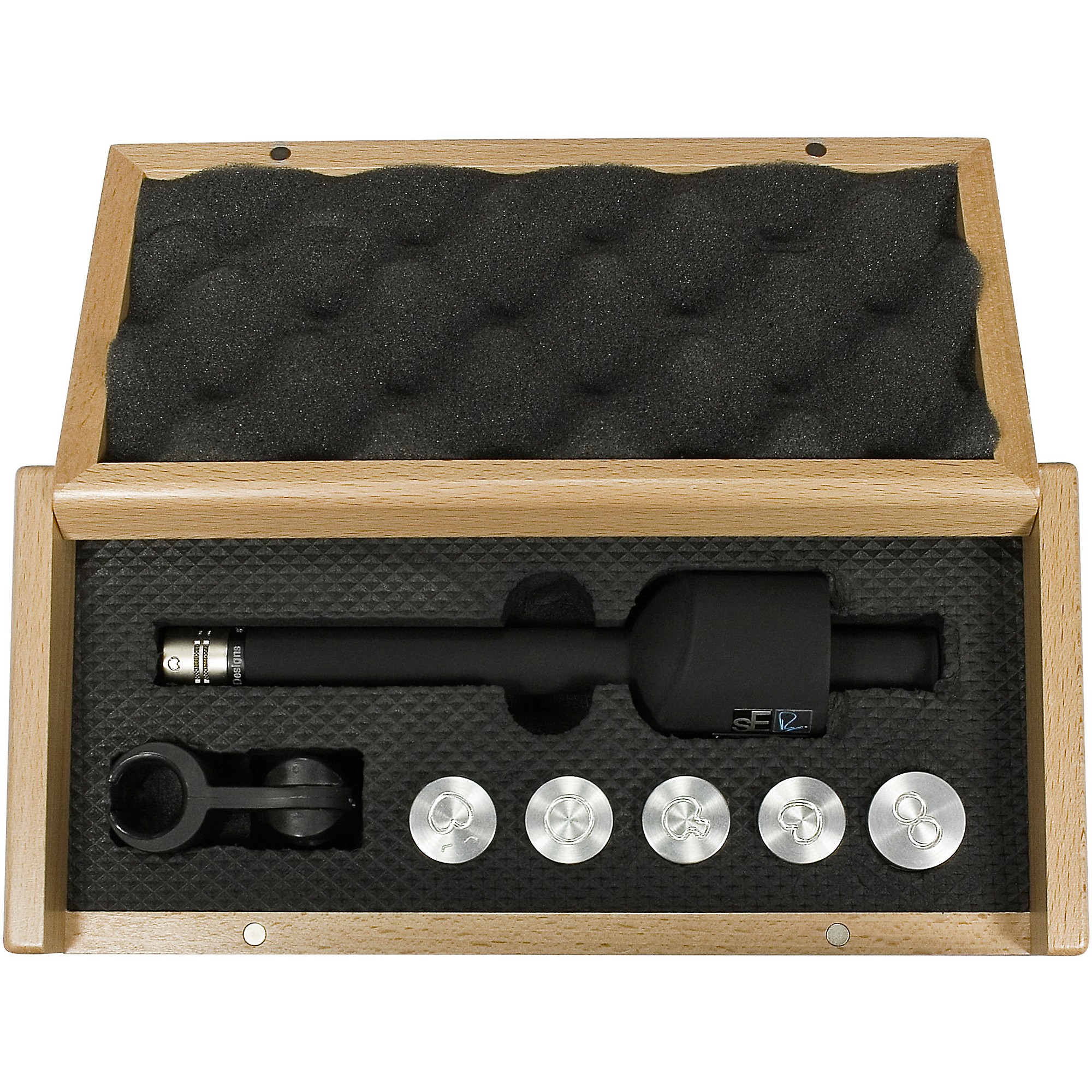

Custom Shockmount
Every RN17 includes a custom-designed, sturdy, protective, and easy-to-use shockmount, which is essential to reducing the unwanted effects of vibration or knocks to the supporting microphone stand.
The Massive Transformer
Made obvious by the unusual chassis shape, the RN17's transformer is substantially larger than the norm. This full-scale transformer was custom-designed by Rupert Neve specifically for this microphone—and nobody has been designing audio transformers longer (or better) than Rupert Neve.With an audio transformer of this magnitude, the RN17 is able to put out astonishing clarity across all frequencies —not just the highs. The midrange is detailed and forward, the lows are full and accurate, and the whole microphone has a balance and headroom never before achieved with a small-capsule microphone.
Matte Black Finish
The matte black finish minimizes the level of visual attention drawn to the microphone when used on stage or in the studio, allowing it to blend into the background.Custom Shockmount
Every RN17 includes a custom-designed, sturdy, protective, and easy-to-use shockmount, which is essential to reducing the unwanted effects of vibration or knocks to the supporting microphone stand.Specifications
- Capsule Type: Hand-Crafted True Condenser
- Diaphragm: 17.2 mm Gold/Mylar
- Directional Pattern: Cardioid (omnidirectional capsule available separately)
- Frequency range: 20Hz–20kHz
- Impedance: 200 ohms
- Sensitivity: 5.96 mV/Pa (-44.5dB)
- Sensitivity (Figure-8): 2.51 mV/Pa (-52dB)
- Max SPL: 131dB (0.5% THD @ 1kHz)
- Signal to Noise Ratio: 76dB
- Self Noise: 18dB(A) (cardioid), 15dB(A) (omni)
- Matching Connectors: XLR3F
- Power requirement: 48V phantom
- Weight: 320g/11.32oz.
- Diameter: 44 mm (transformer), 17 mm (capsule)
- Length: 200 mm
