Item #1552349 Model #508752

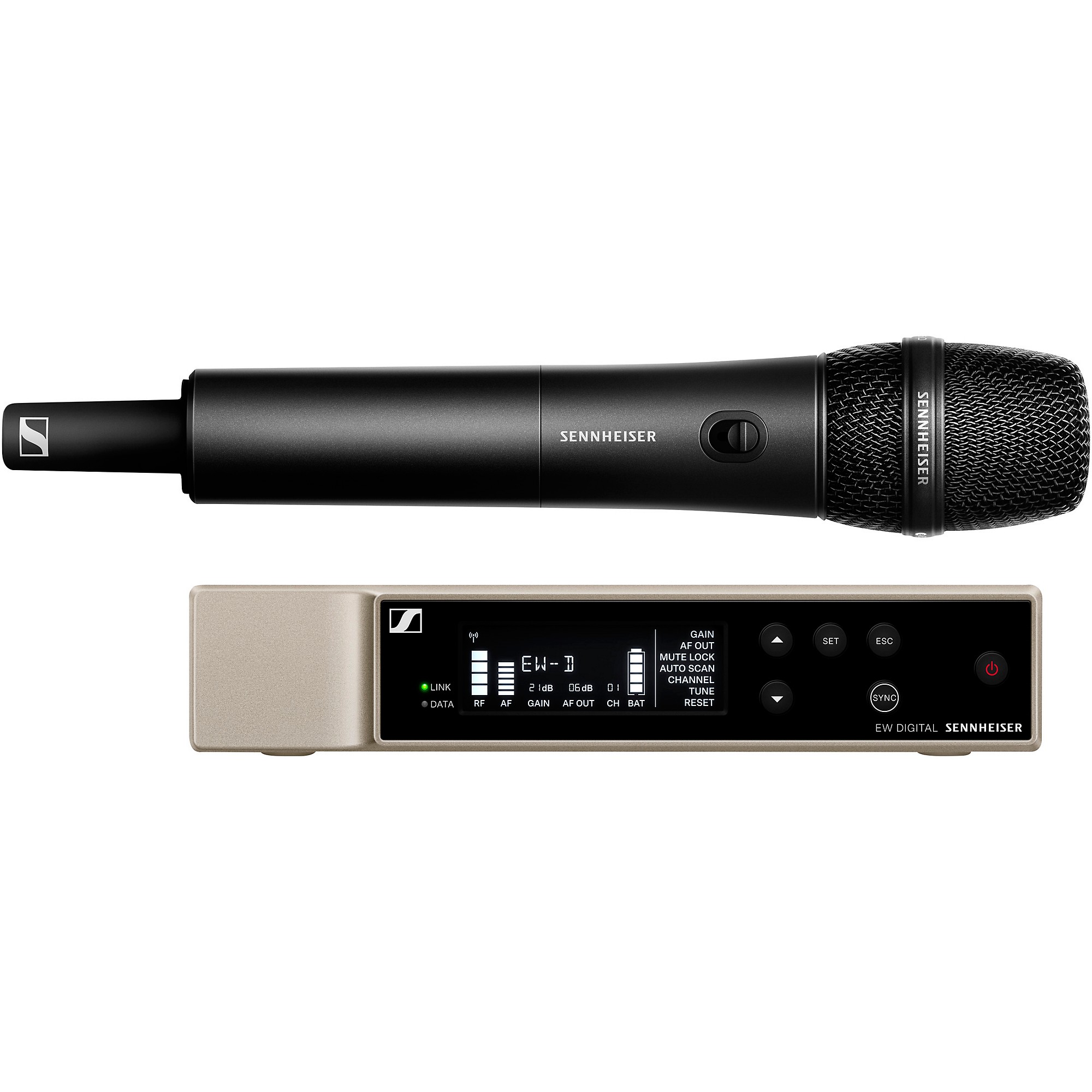

Sennheiser EW-D Evolution Wireless Digital System With 835-S Handheld Microphone R4-9

$699.00

Availability
Delivery
In Stock
Pickup In-Store
Choose Store
Save to Wishlist

Mic and wireless transmitter set.

The EW-D Evolution is a versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.
Specifications
System
    Audio link
      Frequency ranges
      • Q1-6 (470.2–526mHz)
      • R1-6 (520–576mHz)
      • R4-9 (552–607.8mHz)
      Bluetooth Low Energy (BLE) frequency range
      • 2,402–2,480mHz
      Audio frequency response
      • 20Hz–20kHz (-3dB) @ 3 dBfs
      • Audio THD ≤ -60dB for 1kHz @ -3 dBfs input level
      Operating temperature
      •  -10 °C–+55 °C (14 °F–131 °F)
      Relative humidity
      • 5–95 % (non-condensing)
      EW-D SKM-S (Handheld Transmitter)
      • Input voltage
      • 2–4.35V
      Input current
      • < 300 mA
      Power supply
      • 2 AA batteries 1.5V (alkaline manganese) or BA 70 rechargeable battery pack
      Occupied bandwidth
      • 200kHz
      Transmit power (radiated)
      • Audio link 10 mW
      • ERP (Range Y1-3: 12 mW ERP)
      • BLE: max. 10 mW EIRP
      Dimensions (ø x l)
      • 50 x 268 mm (incl. MMD 835 microphone module)
      • 40 x 200 mm (without microphone module)
      Weight (without batteries)
      • Approx. 304g (incl. MMD 835 microphone module)
      • Approx. 195g (without microphone module)
      MMD 835 (Microphone Module)
        Transducer principle
        • Dynamic
        Sensitivity
        • 2.1 mV/Pa
        Sound pressure level
        • 154dB
        SPL Pickup pattern
        • Cardioid
        Dimensions
        • 405 x 350 x 73 mm
        Weight
        • 3.1 kg

        Features

        • Digital wireless eliminates noise, interference and static bursts
        • UHF transmission greatly enhances range, reliability and scalability
        • Mobile App streamlines setup and operation and eliminates complicated menu
        • Automated setup creates reliable connections with minimal time and effort
        • Up to 2,240 selectable frequencies
        • Lithium-ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
        • 56mHz bandwidth will allow for up to 90 channels
        • Preserves every detail of even the most dynamic performances with 134dB transmitter dynamic range
        • EW-D EM rack receiver
        • EW-D SKM-S handheld transmitter
        • MMD 835 microphone module
        • MZQ 1 microphone clamp
        • Two rod antennas
        • Power supply with country adapters
        • Rackmount set
        • Four rubber feet
        • Quick guide
        • Safety guide
        • Manufacturer declaration sheet
