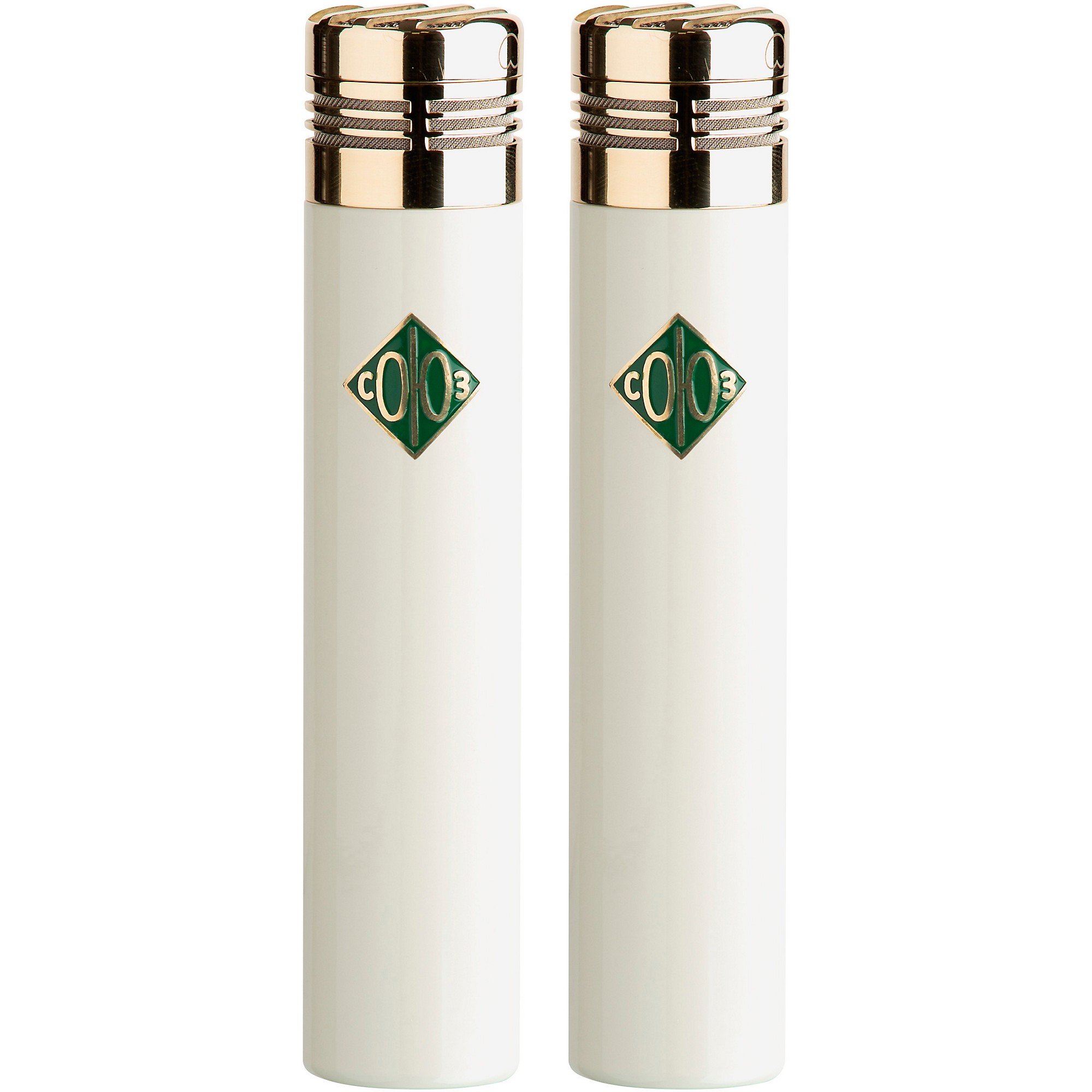

Soyuz Microphones 013 FET-MAC Matched pair Small Diaphragm FET Microphones (cardioid, omni and hypercardioid capsules, 10dB pad) Standard

The 013 FET small-diaphragm condenser melds audio precision and transformer color into a

combination of unparalleled musicality. Best-in-class transient response and the ability to capture

precise detail make them ideal as drum overheads as well as for the recording of acoustic guitar,

piano, choral ensembles, strings, orchestras: in short, any application in which clarity is necessary

and character desired. This model includes two additional capsules, omni and hypercardiod.

The 013 Series combines the best elements of classic SDC designs with a unique character of its

own. Both tube and FET versions capture sound with precision while imparting a warm sonic

signature. The smooth top end and a midrange accuracy that is musical – never clinical – enable the

recording of complex, transient-rich instruments and sounds that span the frequency spectrum and

dynamic range (a -20db pad is included, correctly placed in the signal path between capsule and

electronics) in a warm, pleasing way.

The 013 FET model features the S13 capsule and a "pencil" style form factor. The 013 FET’s transistor circuit captures transients with a fast response. The engineers at Soyuz have spent decades studying, servicing and building classic microphones; this unique pool of knowledge, craft and skill – combined with the ears of numerous musicians, producers and audio engineers – has culminated in the creation of the 013 Series’ custom S13 capsule. The S13, with its detailed top end, warm mid-range, and balanced low-end possesses a

remarkable ability to capture source material with an accuracy that is always flattering, never harsh.

Type - Condenser FET microphone;

Capsule -25mm gold sputtered membrane;

Frequency Range - 20Hz / 20kHz;

Polar Pattern - Cardioid/switchable capsules: hypercardioid, omni;

Sensitivity - 20 mV/Pa;

Impedance - 150 Ohms;

SPL - 143 dB;

Equivalent Noise - 16 dB (a-weighted);

Power - Phantom 48V;

Size - 122mm length x 25mm diameter (24mm capsule head diameter);

Weight - 200 grams (single microphone);

Extras - Wooden microphone box, -10 dB pad, Clip holder.
