High-output sound with even coverage and easy Bluetooth operation.

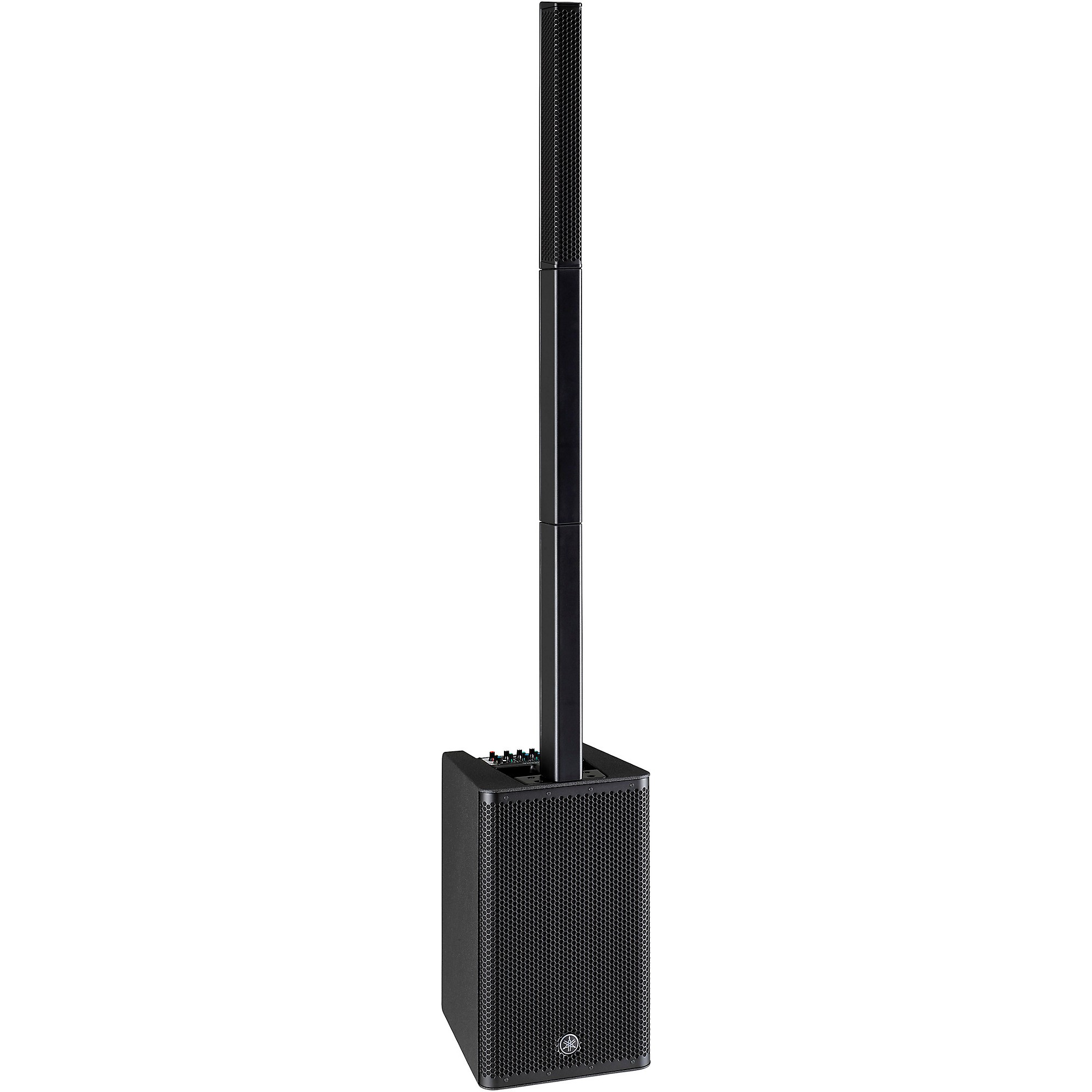

The Yamaha STAGEPAS 1K mkII is an all-in-one portable PA system that allows you to quickly and easily transform any location into your stage, delivering professional-level audio performance with a simple setup that enables aspiring artists to focus on their music and get the most out of their performances. Adding an even higher sound pressure level and more flexible remote functionality than its predecessor, the second-generation STAGEPAS 1K mkII boasts an impressive combination of lightweight cabinet design, professional mixing functions and simple operability. Adopting a concert-quality mixer and speaker, Yamaha has raised the bar for the portable PA.
Simple Setup and Control
The STAGEPAS 1K mkII comes equipped with a wealth of sound adjustment features, including 1-knob EQ to perform multiple EQ processes simultaneously, and MODE, which allows you to adjust optimized compression settings like "Speech" or "Music" to match various applications. All adjustments can be done simply with one knob, making the perfect mix fast and easy without a complex workflow letting you focus on your performance.
Best-in-Class Compact Power
A 1,100W amplifier drives the array speaker with 10 small-diameter 1.5" units, as well as a class-leading 12" subwoofer. The impressive 170° horizontal and 30° vertical coverage area delivers consistent performance over long distances, projecting uniform, high-quality sound from the front to the back of your venue.
Specifications
General
- Powered subwoofer: Bass-reflex type, Line array speaker: Enclosed
- Frequency range (–10dB): 37Hz–20kHz
- Coverage area (HxV): 170º x 30º
- Crossover: 240Hz
- Maximum output level: (1 m; on axis): 125dB SPL
- LF: Powered subwoofer: 12" cone
- HF: Line array speaker: 1.5” cone x10
- Amplifier class: D
- Power rating: Dynamic,1,100W
- Power consumption: 25W (idle), 91W (1/8 power)
- Power requirements: Depending on region: 100V 50Hz/60Hz, 110–120V 60Hz, 220V–240V 50Hz/60Hz
- Handle: Top of powered subwoofer x1
- System dimensions (WxHxD): 3.15" x 78.74" x 16.46" (maximum)
- System weight: 50.71 lb.
- Type: Powered subwoofer with a line array speaker
- Mixing channels: 5 (mono x3 + stereo x1)
- Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST
- MODE (SPEECH/MUSIC/CLUB)
- Inputs: Mono x3 (mic/line) + stereo x1 (line)/mono x2 (line), link in x1
- Outputs: Link out x1, monitor out x1
- Bluetooth: Ver. 5.0, A2DP (SBC, AAC)
- Control and others: Reverb footswitch, STAGEPAS Controller (iOS/Android app)
- Onboard processors: DSP SPX digital reverb (4 program, parameter control)
- Power cord x1, cover x1
- Options: Yamaha DL-SP1K (dedicated dolly), FC5 (footswitch for reverb ON/OFF) (both sold separately)
Features
- Lightweight, portable PA system
- 1,100W for high-output capability
- Simple setup and operation
- Easy-to-use digital mixer lets you dial in your sound
- STAGEPAS Controller dedicated remote control application allows users to adjust volume and EQ during performance
