Handmade quality cables that won't let you down mid-performance.

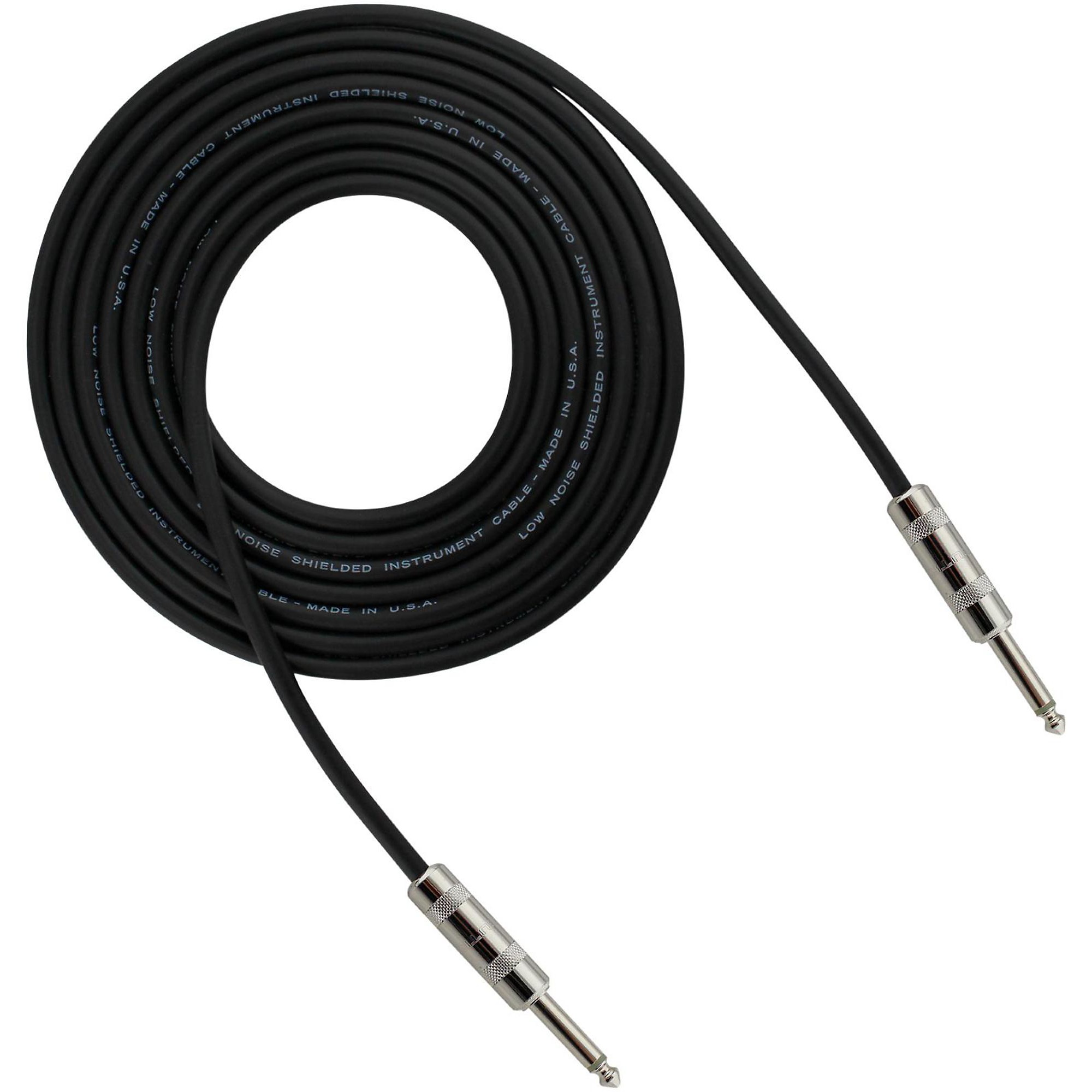

ProCo StageMASTER instrument cable is a cable that will perform night after night. You can depend on StageMASTER instrument cables to endure the rigors of the road and still be ready to take the stage with you. ProCo understands the needs of musicians. These cables are designed to be quiet, durable and dependable. They are hand-soldered to perfection using top-quality metal 1/4" connectors and extremely low-noise cable. StageMASTER cables are not "outsourced." They are manufactured in ProCo's facilities, by their employees, according to the strictest quality standards that they have developed in more than 25 years in business.
Specifications
- Wire: CS-INST.K 1-Conductor, Shielded
- Conductor Gauge: 24 AWG, 20 mm
- Stranding no. strands x AWG: 7 x 32, 7 x .254 mm
- Conductor Material: Bare annealed copper
- Insulation: .030", .762 mm
- Insulation Material: Polypropylene
- Insulation Diameter: .084 ± .002", 2.13 ± .051 mm
- Shield: Composite Conductive Vinyl and Copper Serve
- Shield inner layer: Material: Semi-conductive PVC Wall Thickness: .010" (.254 mm) Diameter: .104" (2.64 mm)
- Shield outer layer: Material: Bare Annealed Copper Serve
- Shield Coverage: 50%
- Jacket Material: Matte Polyvinyl Chloride
- Jacket Color: Black
- Jacket Wall Thickness: .060", 1.62 mm
- Outer Diameter: .235" ± .005", 5.97" ± 127 mm
- Capacitance @ 1KHz: 30pf/ft, 98 pf/m
- Impedance @1 MHz: 70 ohm
- Velovity Of Propagation: 66%
- Nominal Conductor Resistance @20 ohm C: 24 ohm/kft, 79 ohm/km
Features
- Quiet, durable and dependable CS-INST1.K 1-conductor shielded audio cable
- Extremely low-noise cable
- Hand-soldered with top-quality metal 1/4" connectors
- 1-year limited warranty
