Item #1552339 Model #508700

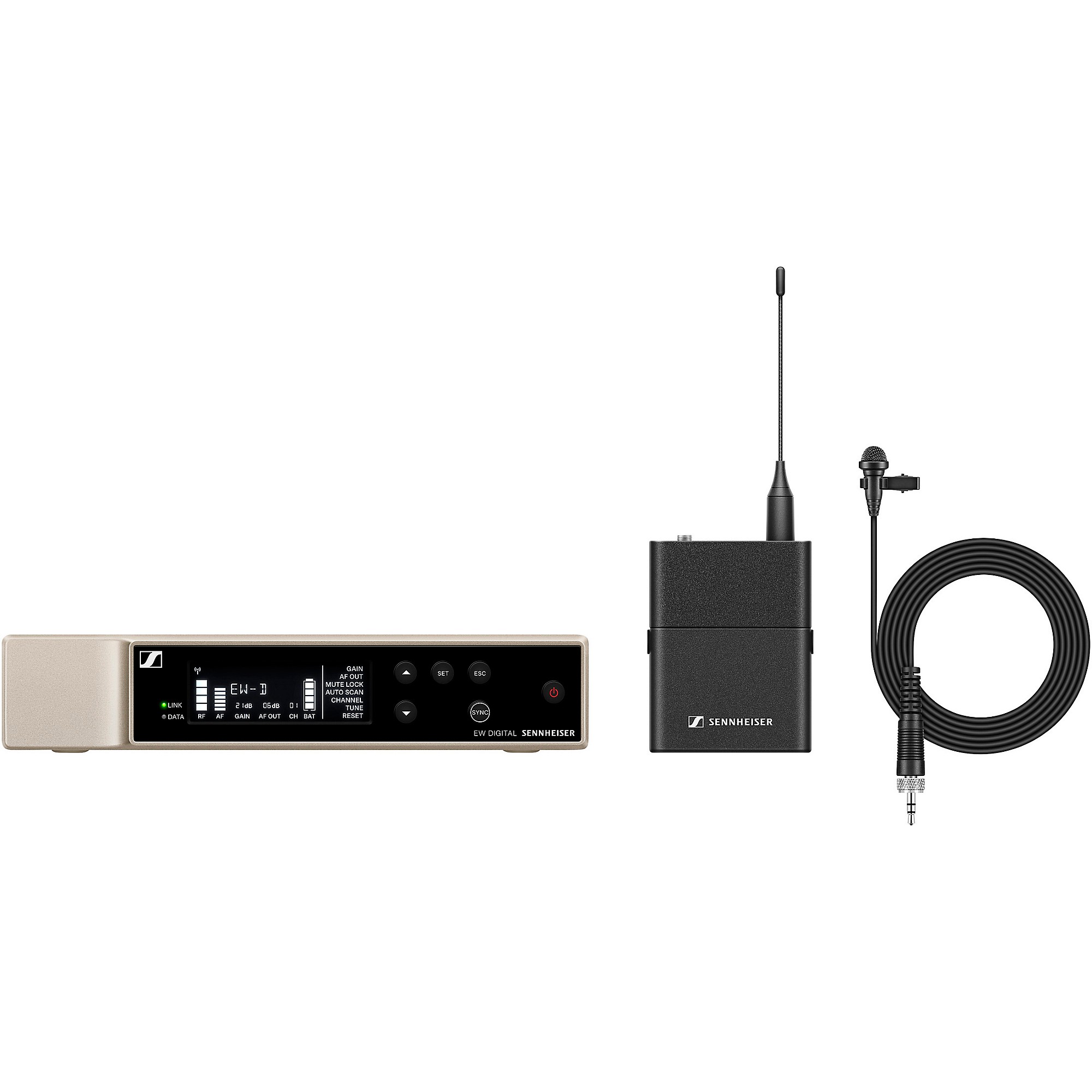

Sennheiser EW-D Evolution Wireless Digital System With ME2 Omnidirectional Lavalier Microphone Q1-6

$699.00

Availability
Delivery
Out of stock
Pickup In-Store
Choose Store

This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Email me when in stock

Save to Wishlist

Wireless, versatile and feature packed.

The EW-D Evolution Wireless Digital System with ME2 omnidirectional lavalier microphone is a versatile and feature-rich digital wireless system for those who speak or present that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and unobstrusive clip-on microphone ME 2 (omnidirectional) with high speech intelligibility suit perfectly for daily use on stage.
Specifications
System
Audio link
  • Frequency ranges
  • Q1-6 (470.2–526mHz)
  • R1-6 (520–576mHz)
  • R4-9 (552–607.8mHz)
  • S1-7 (606.2–662mHz)
  • S4-7 (630–662mHz)
  • S7-10 (662–693.8mHz)
  • U1/5 (823.2–831.8mHz & 863.2–864.8mHz)
  • V3-4 (925.2–937.3mHz)
  • V3-4 (1,785.2–1,799.8mHz)
  • Bluetooth Low Energy (BLE) frequency range
  • 2402–2,480mHz
  • Audio frequency response
  • 20 Hz–20 kHz (-3 dB) @ 3 dBfs
  • Audio THD
  • ≤ -60dB for 1kHz @ -3 dBfs input level
  • Operating temperature
  • -10°–+55°C (14°–131°F)
  • Relative humidity
  • 5–95 % (non-condensing)
  • ME 2 (Lavalier Microphone)
  • Transducer principle
  • Pre-polarized condensor microphone
  • Pickup pattern
  • Omnidirectional
  • Sensitivity (free field, no load)
  • (1 kHz) 17 mV/Pa
  • Max. SPL at 1kHz
  • 130dB
  • Frequency response
  • 50Hz to 18kHz
  • Equivalent noise level A-weighted (DIN IEC 651)
  • 32dB
  • Connector
  • 3.5 mm jack
  • Cable length
  • approx. 1.60 m
  • Supply voltage
  • 7.5V

Features

  • Digital wireless eliminates noise, interference and static bursts
  • UHF transmission greatly enhances range, reliability and scalability
  • Mobile App streamlines setup and operation and eliminates complicated menu
  • Automated setup creates reliable connections with minimal time and effort
  • Up to 2,240 selectable frequencies
  • Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
  • 56 MHz Bandwidth will allow for up to 90 channels
  • Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range
    • Delivery includes
    • EW-D EM rack receiver
    • EW-D SK bodypack transmitter
    • ME 2 lavalier microphone (omni-directional)
    • 2 rod antennas
    • power supply with country adapters
    • rackmount set
    • 4 rubber feet
    • quick guide
    • safety guide
    • manufacturer declaration sheet
