Natural full sound quality for stage or broadcast.

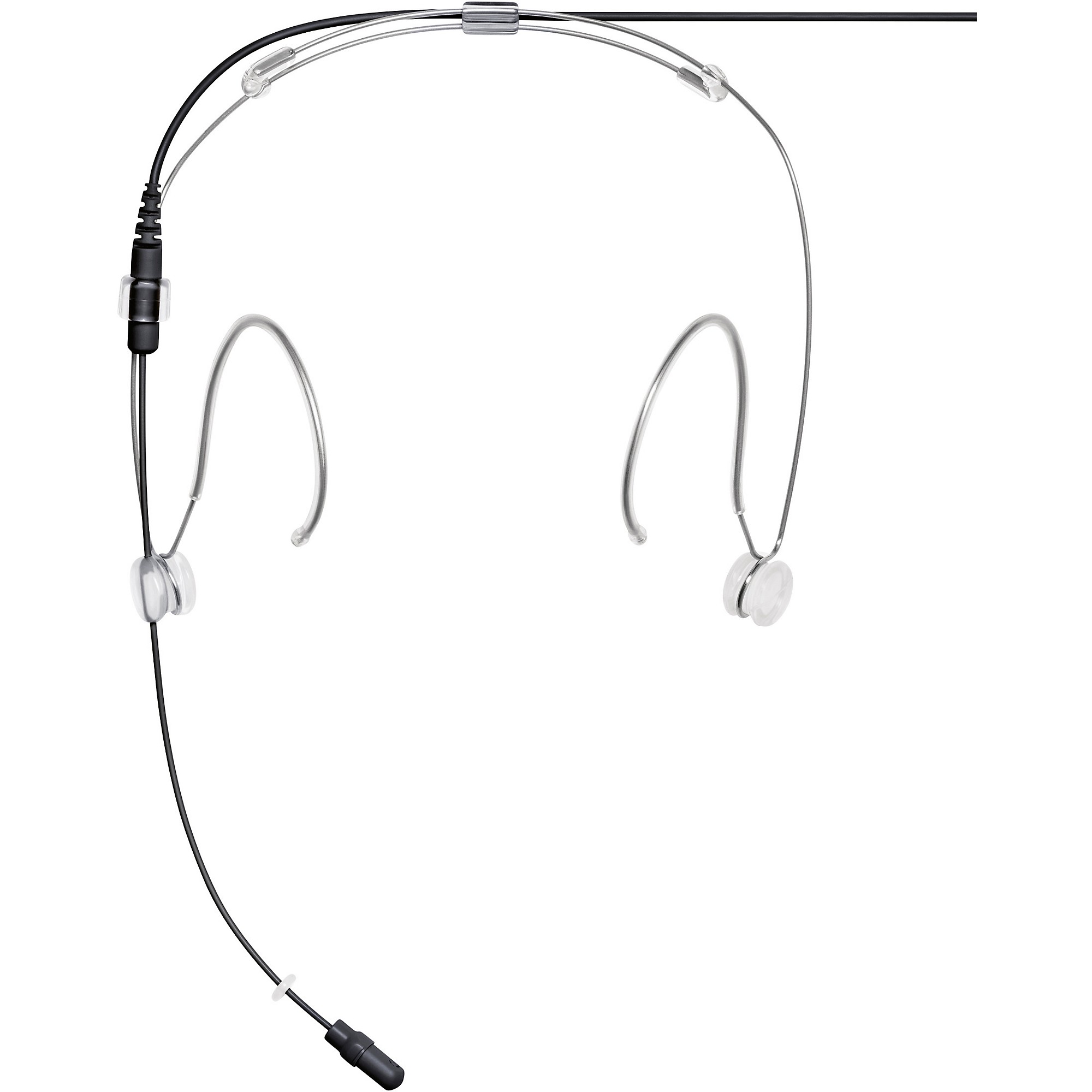

With an easy-to-wear headset frame, DuraPlex DH5 features a neutral, full sound quality that lives up to the highest audio standards on any stage or broadcast studio. Also available as a lavalier, DuraPlex has been extensively tested to ensure an IP57 dust-resistant, waterproof rating*. The exclusive 1.6 mm Shure Plex cable with DuraPlex won’t kink, offers virtually zero “memory effect,” is fully paintable, and simply lasts longer due to a dual redundant ground, which doubles as a secondary shield.
In the theater, onstage, or on television, you can depend on the DuraPlex DH5 headset microphone for consistent professional sound, durability, and lon
In the theater, onstage, or on television, you can depend on the DuraPlex DH5 headset microphone for consistent professional sound, durability, and lon
Specifications
- Microphone Capsule: MEMS
- Polar Pattern: Omnidirectional
- Frequency Response: 20 Hz to 20 kHz
- Sensitivity: –42.5 dBV (7.5 mVRMS) @ 1 kHz
- Self-Noise: 31 dB SPL-AA-weighted, Equivalent Acoustical
- Signal-to-Noise Ratio: 63.0 dB
- Maximum SPL: 132.0 dB SPL1 kHz @ 1% THD, typical
- Dynamic Range: 101.0 dB Typical
- Microphone Current Draw: 220 μA, maximum
- Bias Voltage Recommended Operating Voltage: 5 VDC
- Housing: Molded ABS
- Polarity: MTQG: Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1LEMO: Positive pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
- Cable Diameter: 1.6 mm
- Cable Length: 66.0 in (1.67 m)
- Net Weight: 20 g (0.7 oz)
- Capsule Dimensions: (L × D)14.5 mm × 5.2 mm
- Boom Length: 13.6 cm
Features
- 5 mm omnidirectional subminiature design on a silicone boom pivot system that can be placed on the left or right ear
- IP57 dust-resistant, waterproof rated
- Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
- Advanced 1.6 mm Shure Plex cable: Dual redundant ground in cable serves as secondary shield for unprecedented longevity
- Immune to memory effect and kinks
- Fully paintable with typical theater paints, pens, and polishes

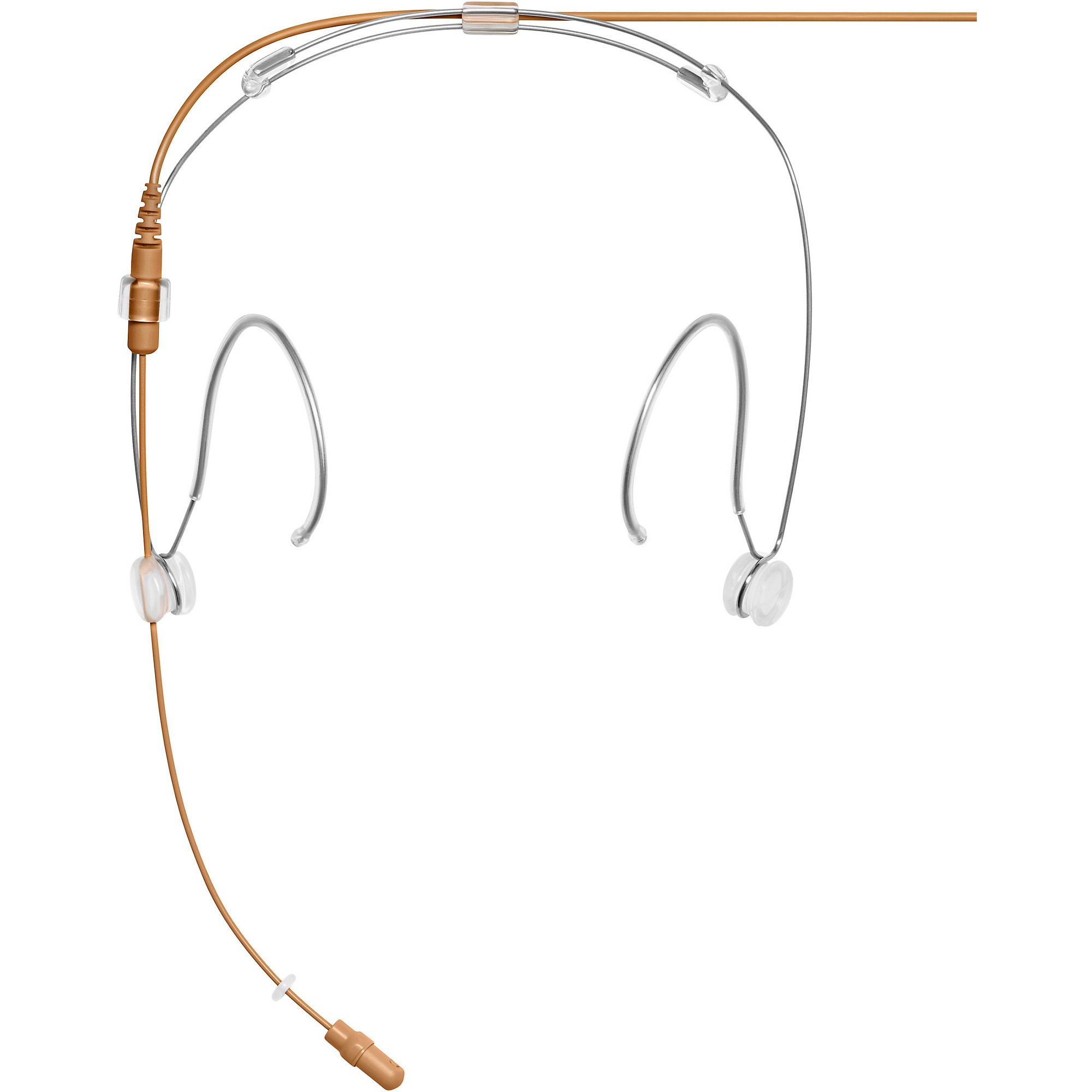

- Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)• Available in three colors: Black, Cocoa, Tan
- Available in two connector types: TA4F (mTQG) and LEMO
- Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, TQG Locking Collar (mTQG/TA4F SKUs only)
