Item #1535345 Model #ULXD2/B87C=-G50

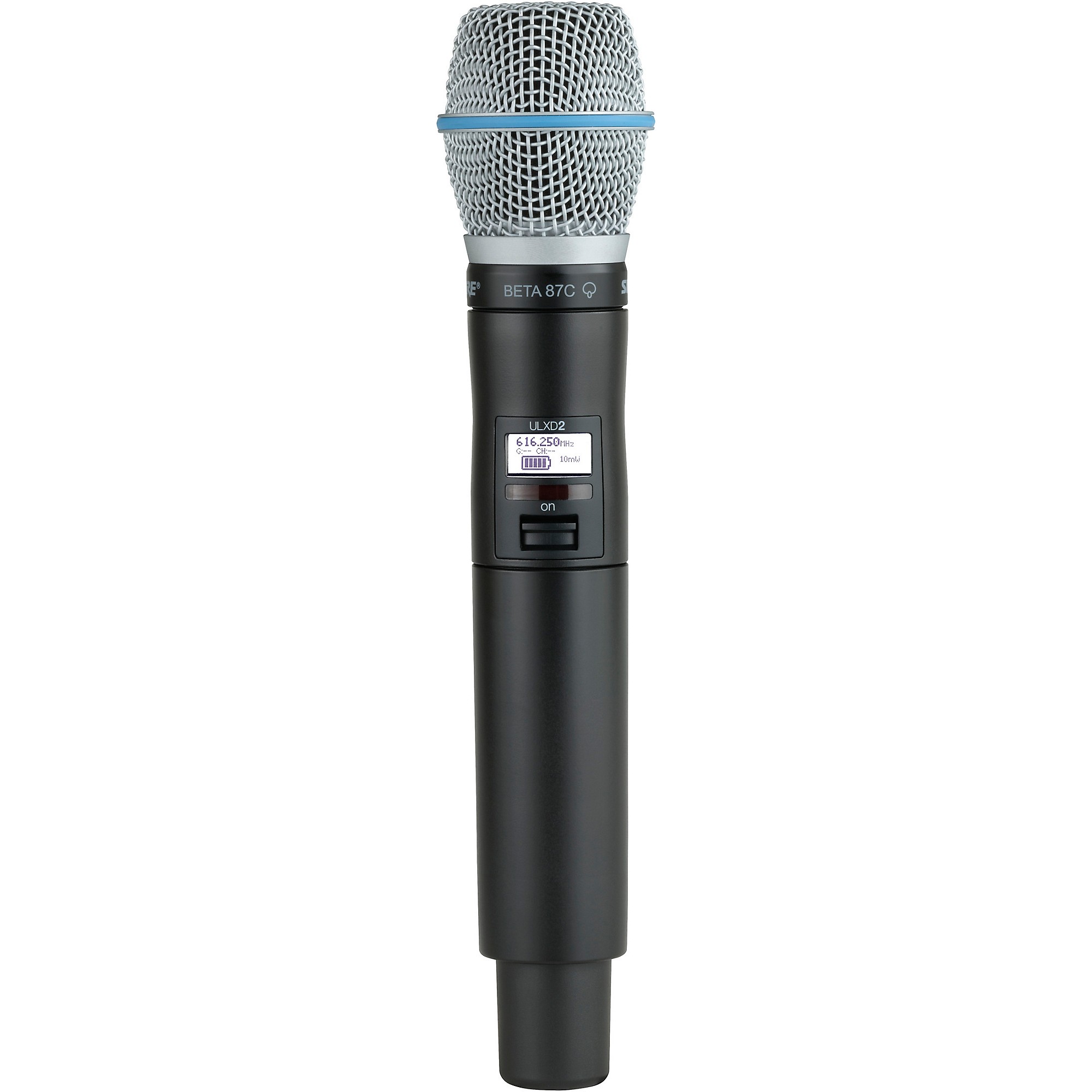

Shure ULXD2/B87C Handheld Transmitter With BETA 87C Microphone Band G50

$811.00

Availability
Delivery
Out of stock
Pickup In-Store
Choose Store

This item is backordered but it is available to reserve now. You will not be charged until the item ships.

Email me when in stock

Save to Wishlist

Shure wireless has got you covered.

Handheld wireless transmitter compatible with ULX-D Digital Wireless Systems.
Specifications
RF Carrier Range:
  • 174–216mHz, 470–865mHz, 1,492–1,525mHz, 1,785–1,805mHz
  • Note: Varies by region (See Frequency Range and Ouput Power table)
Working Range:
  • 328'
  • Note: Actual range depends on RF signal absorption, reflection and interference.
RF Tuning Step Size:
  • 25kHz, varies by region
Image Rejection:
  • >70dB, typical
RF Sensitivity:
  • -98dBm at 10-5 BER
Latency
  • <2.9 ms
Audio Frequency Response:
  • ULXD1: 20Hz–20kHz (±1dB) ULXD2: 30Hz–20kHz (±1dB)
  • Note: Dependent on microphone type
Audio Dynamic Range System Gain @ +10:
  • XLR Analog Output: >120dB, A-weighted
  • Dante Digital Output (Dual and Quad receivers): 130dB (typical), A-weighted
Total Harmonic Distortion:
  • −12 dBFS input, System Gain @ +10
  • <0.1%
System Audio Polarity:
  • Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4") output
Operating Temperature Range:
  • −18 °C (0 °F) to 50 °C (122 °F) Note: Battery characteristics may limit this range.
Storage Temperature Range:
  • −29°C (−20°F) to 74°C (165°F) Note: Battery characteristics may limit this range.

Features

  • AES 256-bit encryption for applications for which secure transmission is needed
  • Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
  • Optional Shure SB900A lithium-ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect
  • External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
  • Transmitter Mute Mode repurposes the On/Off switch into a mute switch, enabling audio muting while preserving RF channel presence
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Frequency and power lockout
